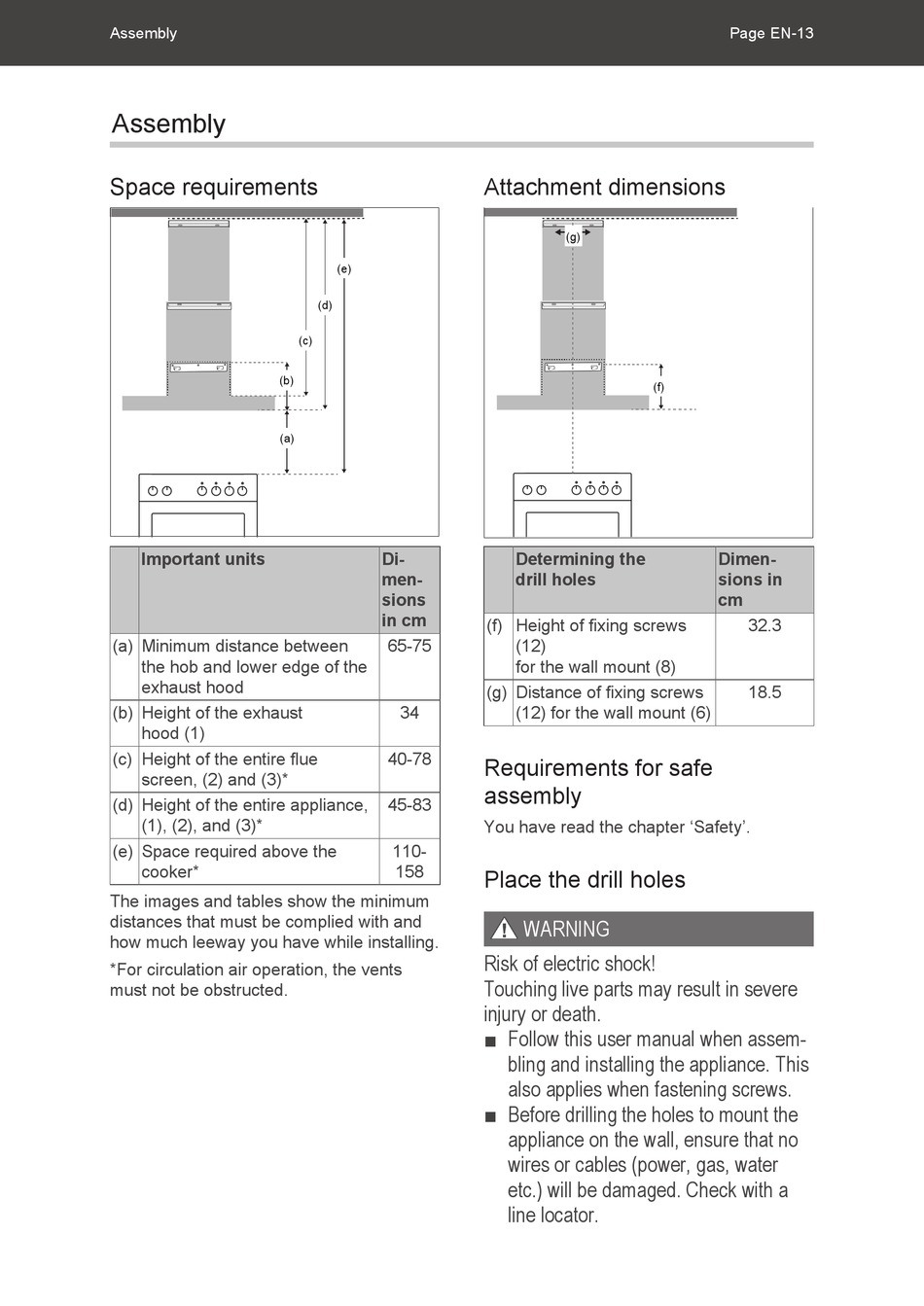

Assembly
Assembly
Space requirements
(b)
(a)
Important units
(a) Minimum distance between
the hob and lower edge of the
exhaust hood
(b) Height of the exhaust
hood (1)
(c) Height of the entire flue
screen, (2) and (3)*
(d) Height of the entire appliance,
(1), (2), and (3)*
(e) Space required above the
cooker*
The images and tables show the minimum
distances that must be complied with and
how much leeway you have while installing.
*For circulation air operation, the vents
must not be obstructed.
(e)
(d)
(c)
Di-
men-
sions
in cm
65-75
34
40-78
45-83
110-
158
Attachment dimensions
(g)
(f)
Determining the
drill holes
(f) Height of fixing screws
(12)
for the wall mount (8)
(g) Distance of fixing screws
(12) for the wall mount (6)
Requirements for safe
assembly
You have read the chapter 'Safety'.
Place the drill holes
WARNING
Risk of electric shock!
Touching live parts may result in severe
injury or death.
Follow this user manual when assem-
n
bling and installing the appliance. This
also applies when fastening screws.
Before drilling the holes to mount the
n
appliance on the wall, ensure that no
wires or cables (power, gas, water
etc.) will be damaged. Check with a
line locator.
Page EN-13
Dimen-
sions in
cm
32.3
18.5
