E

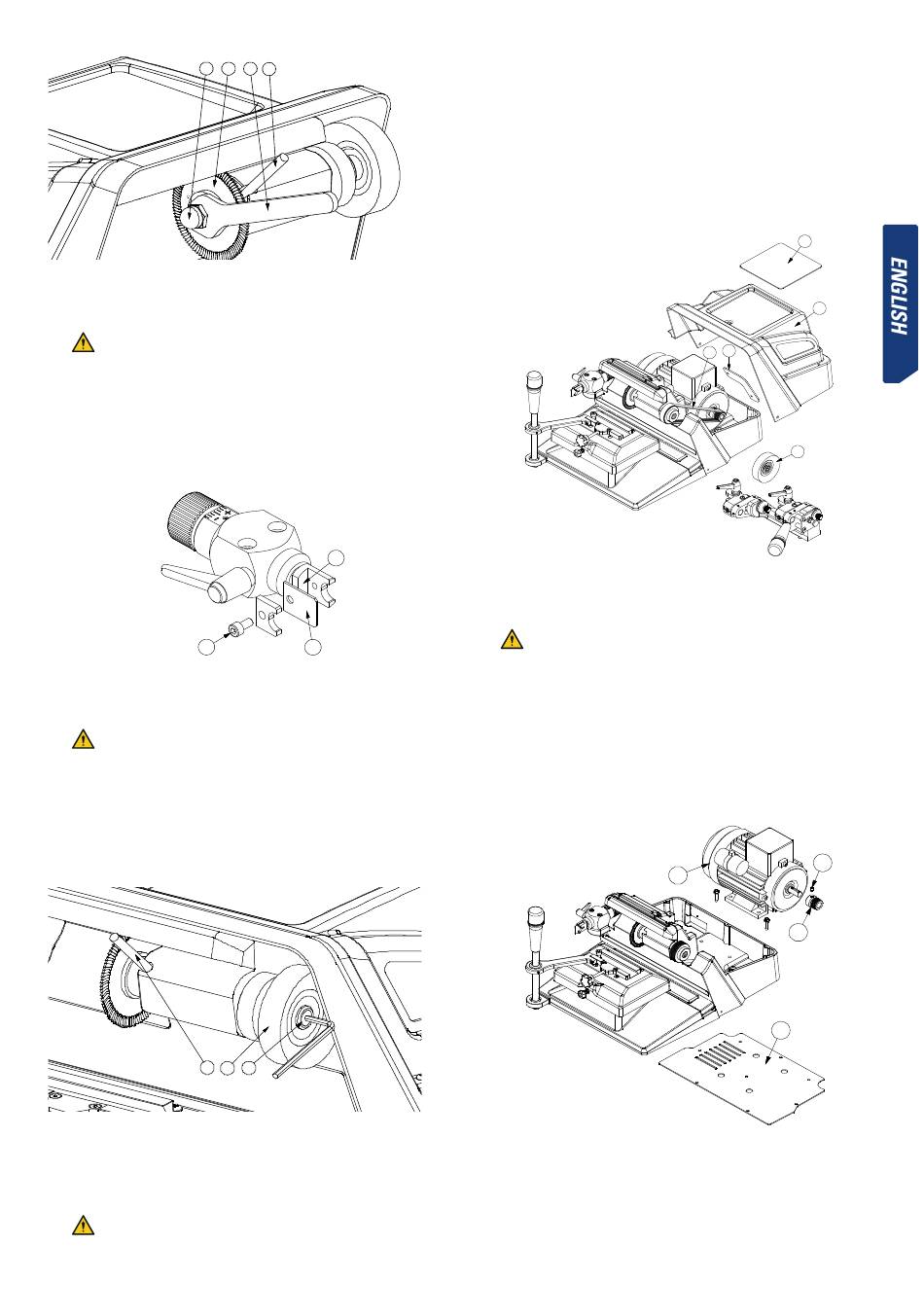

6.2 REPLACING THE PROBE
To replace the probe, proceed as follows:
Turn off and unplug the machine.
1) Loosen screw "F", using Allen key number 4 supplied with the accessories.
2) Remove the worn "T" probe.
3) Install the new "T" probe. Make sure that the rear part of the probe rests against
the support "G", and tighten screw "F".
4) After replacing the probe, it is recommended to carry out the "Cutting depth
adjustment". The steps for doing so are explained in other sections of this manual.
F
6.3 BRUSH REPLACEMENT
To replace the brush, proceed as follows:
Turn off and unplug the machine.
1) Insert rod "A" supplied with the accessories into the hole that blocks the rotation
of the head. To find it, turn the head by hand.
2) Loosen screw "H", using Allen key number 4 supplied with the accessories.
3) Remove the worn brush "J".
4) Install the new brush "J" and tighten it by tightening screw "H". Do not tighten it
too hard, so that in the next replacement of the brush, the "H" screw can be easily
released.
5) Remove rod "A".
A
6.4 REPLACEMENT OF THE BELT
The belt of the VOLGA-BIT machine is elastic, so it does not require tensioning
operations.
If replacement of the belt is necessary, proceed as follows:
Turn off and unplug the machine.
1) Remove the carriage from the machine (BIT or Clamp carriage for vertical cuts).
2) Remove the "K" mat from the top.
C
B
A
G
T
J
H
3) Remove the "N" cover that hides the motor. To do this, release the 11 screws that
hold it to the bench.
4) Remove the "O" sheet. To do this, loosen the 2 screws.
5) Remove the "J" brush.
The steps for doing so are explained in other sections of
this manual.
6) Remove the old "I" belt. To remove it from the pulleys, we manually rotate the belt
at the same time as we force it on the side.
7) Fit the new belt. To do this, point the machine so that the rear part faces us. First,
insert the belt onto the motor pulley. Then, place the other end of the belt on the
diameter of the side of the head pulley. Finally, force the belt laterally while turning
the head with the key No. 13 inserted on the nut of the cutter.
8) Check that the belt is fitted correctly.
6.5 MOTOR REPLACEMENT
To replace the motor, proceed as follows:
Turn off and unplug the machine.
1) Remove the "I" belt.
The steps for doing so are explained in other sections of this
manual.
2) Remove the lower protective plate "P". To do this, release the 8 screws that hold
it to the bench.
3) Unplug the motor power cable.
4) Remove the "Z" motor. To do this, loosen the 4 screws that hold the motor base to
the bench.
5) Remove the "Y" pulley. To do this, loosen the grub screw "X".
6) To mount the new motor, carry out the same operations described, but in reverse
order.
6.6 REPLACING THE FUSES
If the machine does not start when the start-up switches are operated, it is necessary
to check the condition of the fuses.
This operation is performed in the following way:
K
N
O
I
J
X
Z
Y
P
