Cutting Head
Carriage
Slide
Arms

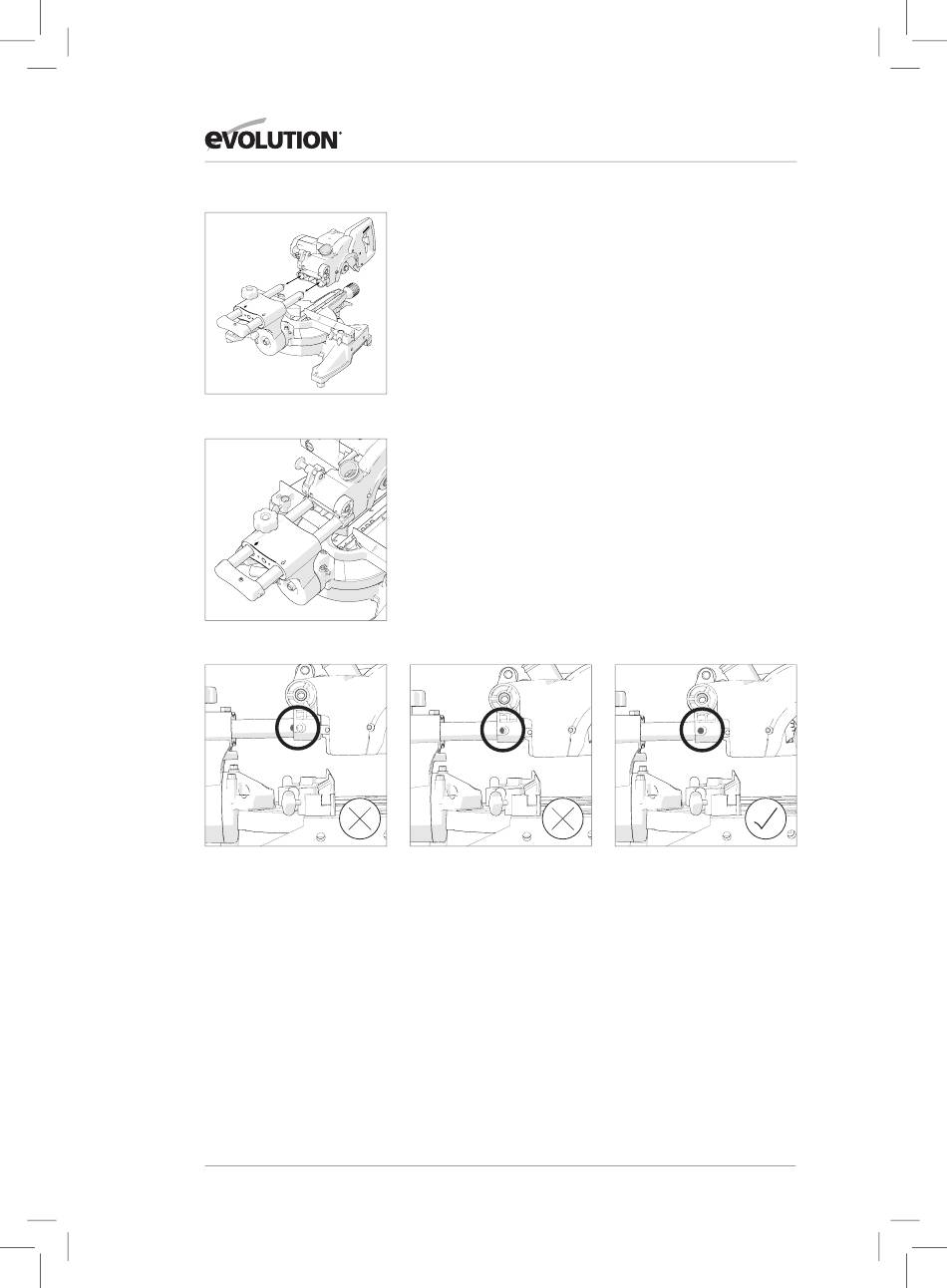

Fig. 10a
Fig. 10b
Fig. 11

ATTACHING THE CUTTING HEAD

WARNING: The power cable must not be allowed to fall
through or between the two arms of the Slide Carriage.
The cable could be damaged if it becomes trapped by
any of the machines moving parts.
Align the Cutting Head with the two Carriage Slide arms.
Push the Head onto the Carriage arms firmly until the 'click'
of the Locating Lugs deploying is heard. (Fig. 10a & 10b)
Check the integrity of the installation.
The deployed Green Locating Lugs must be fully visible when
viewed from the sides of the Cutting Head. (Fig. 11)
12
