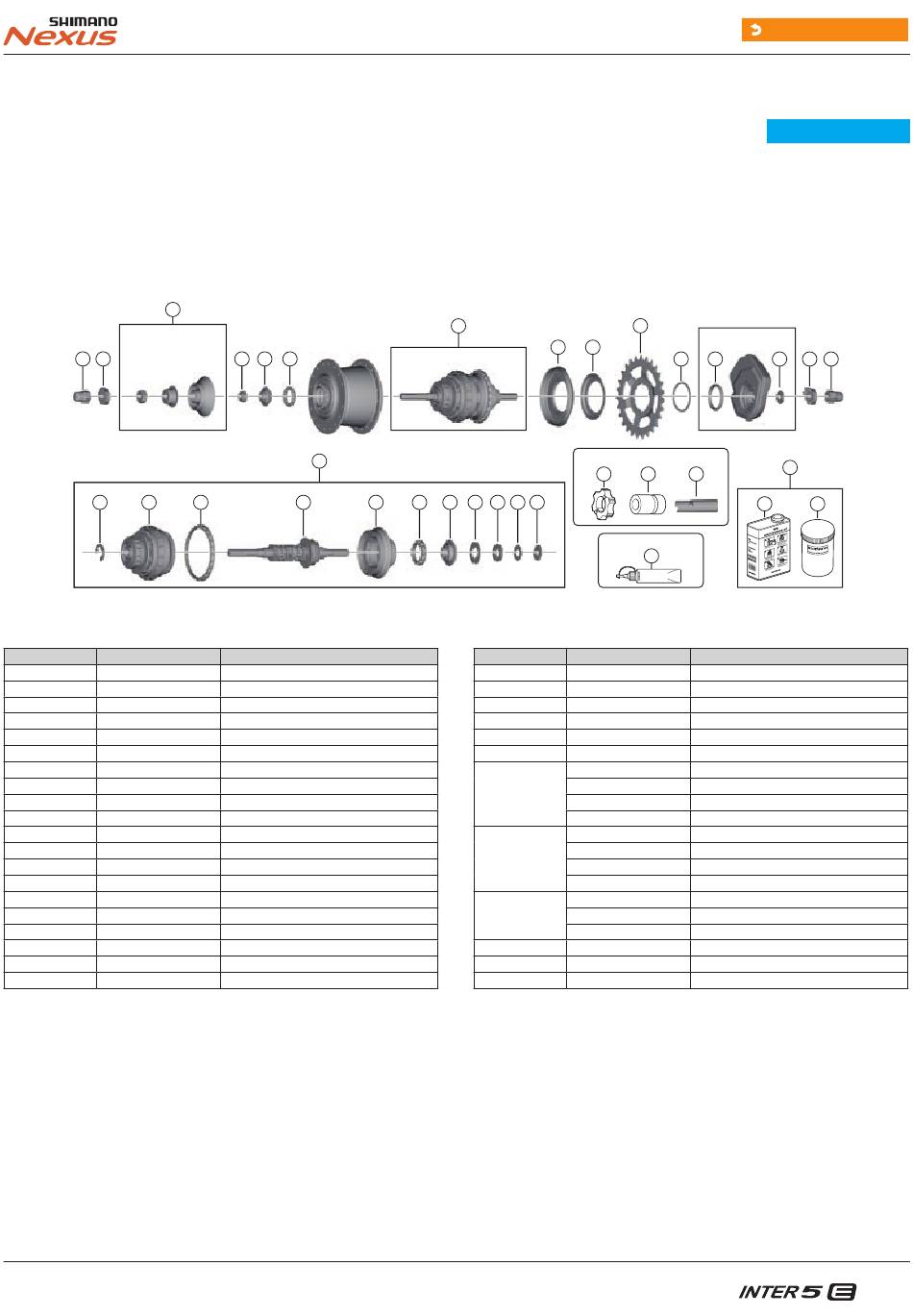

NEXUS 5-speed Internal Hub
SG-C7050-5R / SG-C7050-5V
13
For w/o Roller Brake
(SG-C7050-5V)
26 28
2
3
ITEM NO.
SHIMANO CODE NO.
1
Y3FD98010
2
Y3FF49000
3
Y3FF98020
4
Y38X98050
5
Y3FD98020
6
Y3FF98040
7
Y3FF98050
8
Y3FF98060
9
Y37S07000
10
Y37S98050
11
Y38F17000
12
Y38F16000
13
Y34R98100
14
Y31Z06030
15
Y35J90000
16
Y34R98070
17
Y37G98080
18
Y3FF47000
19
Y20W10000
20
Y13098022
14 15
16
1
4
5
DESCRIPTION
Internal Assembly (Axle Length 187 mm)
Stop Ring Diameter (12 mm / 1.3 mm)
Carrier Unit
Ball Retainer O (3/16" x 26)
Hub Axle Unit (Axle Length 187 mm)
Driver Unit
Ball Retainer A (7/32" x 13)
Right Hand Cone w/Seal
Drive Plate
Lock Washer
Right Hand Lock Nut Washer
Right Hand Lock Nut (3.7 mm)
Left Hand Dust Cap Unit
Lock Nut for Left Hand Cone
Left Hand Cone w/Dust Cap
Ball Retainer P (3/16" x 13)
Right Hand Dust Cap A w/Seal
Right Hand Dust Cap C
TL-SGE1 1st Gear Set Tool
TL-S702 Right Hand Cone Installation Tool
1
Internal Assembly
6
7
8
9
10 11 12
ITEM NO.
21
22
23
24
25
26
27
28
29
30
31
32
29
MU-UR500
17
18
30
31
TL-SGE1
TL-S702
TL-C7001
19
20
21
Internal Hub Grease
22
SHIMANO CODE NO.
DESCRIPTION
Y70821000
TL-C7001 Right Hand Cone Removal Tool
Y04130100
Internal Hub Grease (Net. 100g)
Y00298010
WB maintenance oil set
Y00201000
WB maintenance oil (1L)
Y00201100
Bottle
Y31414010
Cap Nut (3/8")
Y33Z20500
Non-turn Washer 5R (Yellow)
Y33M39600
Non-turn Washer 6R (Silver)
Y33M39700
Non-turn Washer 7R (Black)
Y34R85010
Non-turn Washer 8R (Dark Blue)
Y33M39510
Non-turn Washer 5L (Brown)
Y33M39610
Non-turn Washer 6L (White)
Y33M39710
Non-turn Washer 7L (Gray)
Y34R85000
Non-turn Washer 8L (Dark Green)
Y0FM24000
Sprocket Wheel 24T (CS-C7000)
Y0FM01000
Sprocket Wheel 27T (CS-C7000)
Y0FM30000
Sprocket Wheel 30T (CS-C7000)
Y7ZP04000
Snap Ring
Y78U00022
Motor Unit Seal
Y707000Y0
Lock Nut
Zurück zur Index-Seite
Ersatzteile-Liste
32
27 26
23
24
25
2
1
95
mm
4
3
6
5
86
