Ersatzteile-Liste

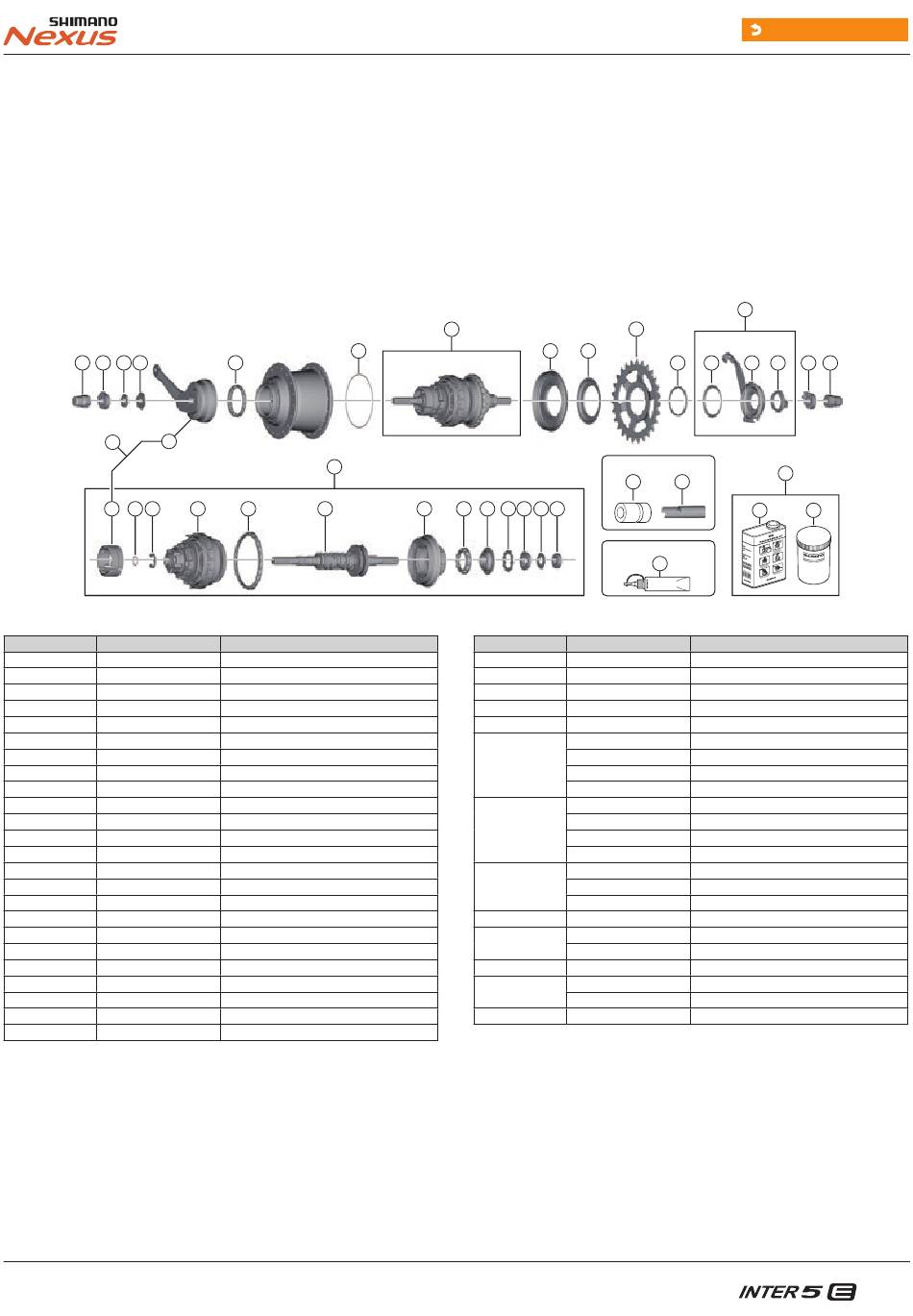

NEXUS 5-speed Internal Hub w/Coaster Brake
SG-C7000-5C
29 31
15 16
18
17
2
3 4
ITEM NO.
SHIMANO CODE NO.
1
Y3FH98010
2
Y37G98020
3
Y37E08000
4
Y3FE10000
5
Y3FE98020
6
Y38X98050
7
Y3FH98020
8
Y3FF98040
9
Y3FF98050
10
Y3FJ98030
11
Y31L04000
12
Y31L98030
13
Y34R09000
14
Y35Z11000
15
Y35P28000
16
Y35P22000
17
Y31N98060
18
Y31N98050
19
Y38R98190
20
Y35J11100
21
Y37G98080
22
Y3FF47000
23
Y13098022
24
Y70821000
20
19
1
5
6
7
DESCRIPTION
Internal Assembly (Axle Length 187 mm)
Brake Shoe Unit (3 pcs.)
O-Ring
E-Ring (D9.6)
Carrier Unit
Ball Retainer O (3/16" x 26)
Hub Axle Unit (Axle Length 187 mm)
Driver Unit
Ball Retainer A (7/32" x 13)
Right Hand Cone w/Seal
Drive Plate
Lock Washer
Joint Nut Stop Washer
Right Hand Serated Lock Nut (5.4 mm)
Left Hand Lock Nut (3 mm)
Stop Nut
Brake Shoe Unit & Brake Arm Unit
Brake Arm Unit (3 Serration)
Ball Retainer B (3/16" x 16)
Hub Shell Slide Spring
Right Hand Dust Cap A w/Seal
Right Hand Dust Cap C
TL-S702 Right Hand Cone Installation Tool
TL-C7001 Right Hand Cone Removal Tool
1
21
Internal Assembly
8
9
10
11
12
13 14
ITEM NO.
25
26
27
28
29
30
31
32
33
34
35
36
37
34
32
CJ-C7000-5
22
33
35
36
TL-S702
TL-C7001
23
24
27
Internal Hub Grease
25
SHIMANO CODE NO.
DESCRIPTION
Y04130100
Internal Hub Grease (Net. 100g)
Y00298010
WB maintenance oil set
Y00201000
WB maintenance oil (1L)
Y00201100
Bottle
Y31414010
Cap Nut (3/8")
Y33Z20500
Non-turn Washer 5R (Yellow)
Y33M39600
Non-turn Washer 6R (Silver)
Y33M39700
Non-turn Washer 7R (Black)
Y34R85010
Non-turn Washer 8R (Dark Blue)
Y33M39510
Non-turn Washer 5L (Brown)
Y33M39610
Non-turn Washer 6L (White)
Y33M39710
Non-turn Washer 7L (Gray)
Y34R85000
Non-turn Washer 8L (Dark Green)
Y0FM24000
Sprocket Wheel 24T (CS-C7000)
Y0FM01000
Sprocket Wheel 27T (CS-C7000)
Y0FM30000
Sprocket Wheel 30T (CS-C7000)
Y7ZP04000
Snap Ring
Y7ZP98010
CJ-C7000-5 Cassette Joint Unit
Y7ZP98030
CJ-C7000-5 Cassette Joint Unit for Belt drive system
Y7ZP05000
Driver Cap
Y7ZP98020
CJ-C7000-5 Cassette Joint
Y7ZP98040
CJ-C7000-5 Cassette Joint for Belt drive system
Y33Z98020
Cassette Joint Fixing Ring
