Appendix A. Examples for variants and available fittings

See also section 4.1 "Type codes", page 56 and chapter 11. "Reference documents", page 81
A.1. Joystick VCS0 – with potentiometer
Version with
• Standard knob G41 standard knob
• Rubber boot V041N
• Potentiometer PD550

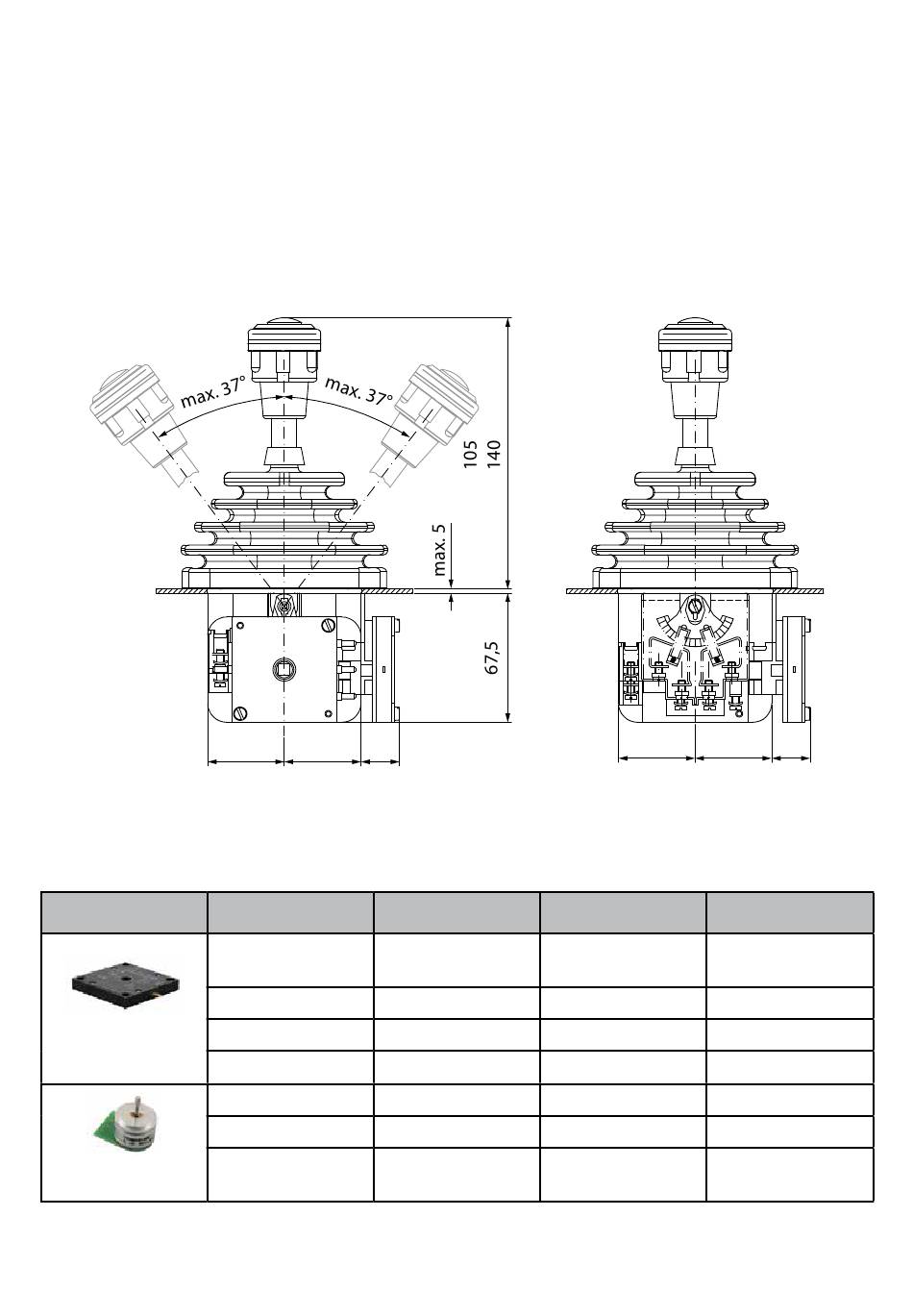

Figure 21. Joystick VCS0 version with potentiometer PD550 – dimension drawing (dimensions in mm)
A.1.1. Available potentiometers for the joystick VCS0
Potentiometer
Spohn + Burkhardt
40 40 20
Type
PQxx Wire-wound
PFxx Wire-wound
PFÖxx Wire-wound
DP60xx Wire-wound
Bxx Conductive plastic
BxxK Conductive plastic
BLRxx Conductive plastic
Technology Power
1.5 W
6 W
6 W
50 W
0.5 W
0.5 W
0.5 W
40 40 20
Connection
Solder connection/
connector
Screw connection
Screw connection
Screw connection
Solder connection
Screw connection
MicroMatch con-
nector
