4.5. Dimension drawings

For other variants, see Appendix A. "Examples for variants and available fittings", page 89.
4.5.1. Joystick VCS0 – basic version
40

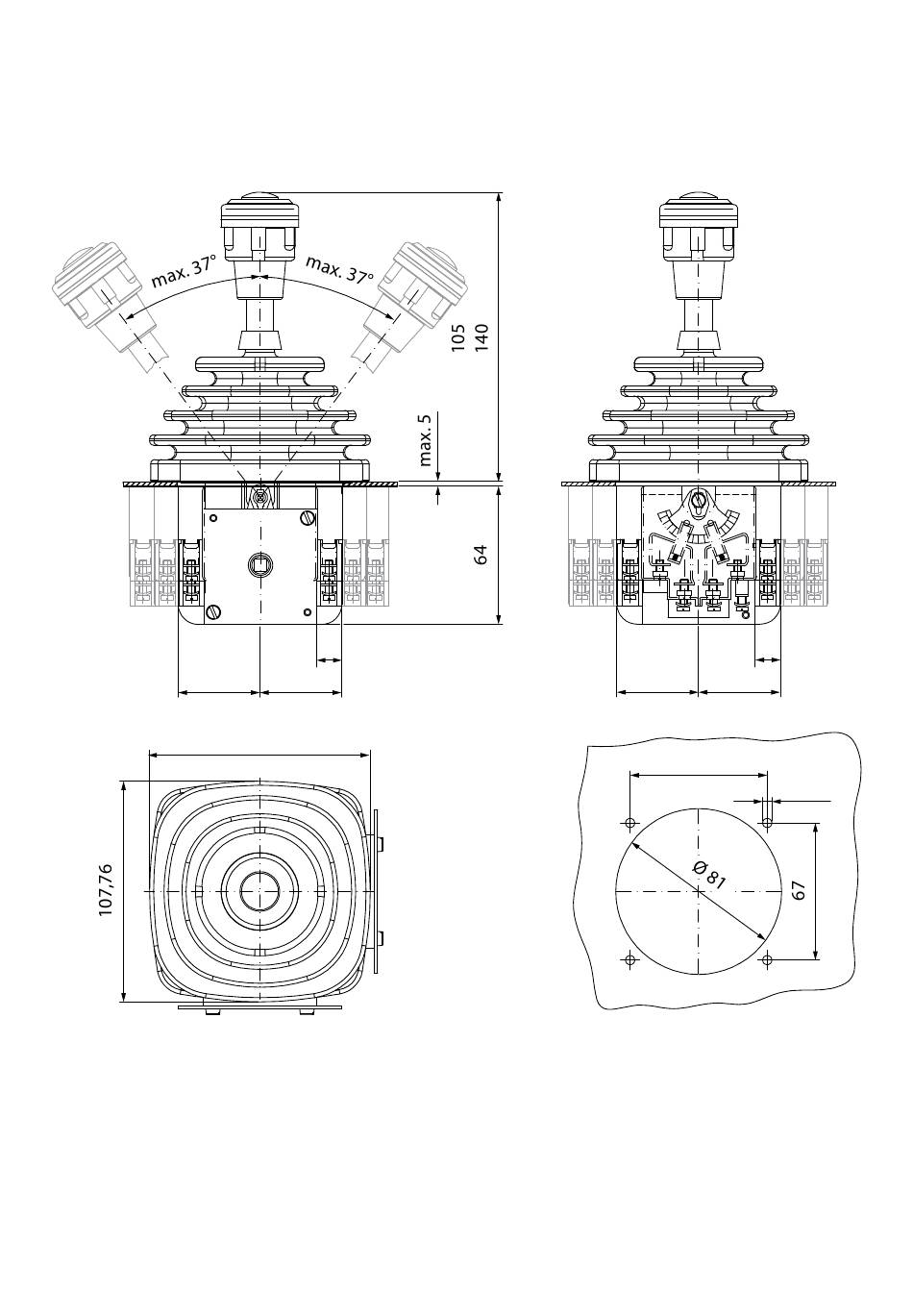

Figure 5.
Joystick VCS0 basic version with standard knob G41 and rubber boot-holder combination S3 – dimen-
sion drawing (dimensions in mm)
Spohn + Burkhardt
12
40
107,76
12
40
40
67
4,5
61
