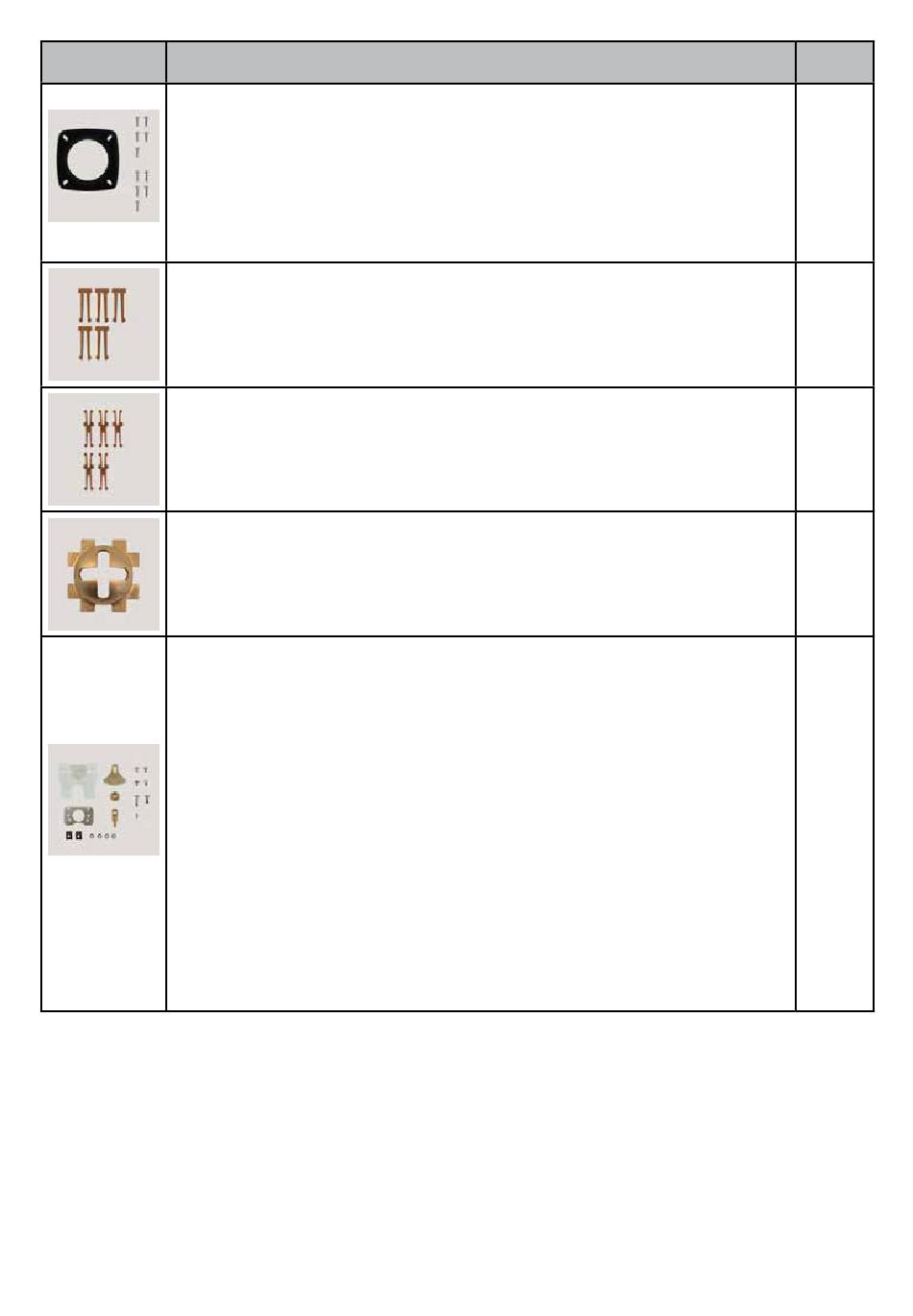

Spare part Name/items supplied
Rubber boot holder, complete
with seal
1x V048R2D rubber boot holder complete with seal, escutcheon S3
5x self-tapping screw
5x W1451 M4x16 TX20 steel 10.9 galvanized (A3K) pan head screw with flange
and hexalobular
Clip
for 2 contact elements for VCS0
5x clip for the connection of two CS0 double contact elements
Clip
for 3 contact elements for VCS0
5x clip for 3 contact elements
Cross gate
37° for VCS0
1x cross gate 37°
Coupling for potentiometer Bxx
(PL310) for VCS0 joystick
1x CS071 F potentiometer clip for CS0 potentiometers Bxx, PQxx, PDxx, PBxx
1x coupling plate
2x NS045-39 A clamping lug for encoder
1x ZR.01.014.004 gearwheel M=1 Z=14 Ø=3.2 date: 28.01.2016
1x grub screw
4x locking washer S4
2x flat head screw with hexalobular socket 1x ISO 7045 M3x6 steel 4.8 galvanized
ws
1x toothed segment for potentiometer drive
1x potentiometer cam shaft 1x flat head screw 1x flat head screw 2x ISO 4017
M4x6
head
Spohn + Burkhardt
socket for thermoplastic materials
pan head screw with cross head H
steel 8.8 galvanized A2K hex head screw with thread to the
No.
54088
53534
53536
51897
53537
