5. Installation
Danger!
All tasks on the device are only allowed to be undertaken by specialist personnel taking
into account the relevant safety regulations. Always pay attention to the safety instruc-
tions in chapter 1. "Safety", page 53.
5.1. Mechanical installation
Note
Installation is from below though the mounting plate. It is necessary to remove the knob
on variants with large knobs (e.g. T-knob).

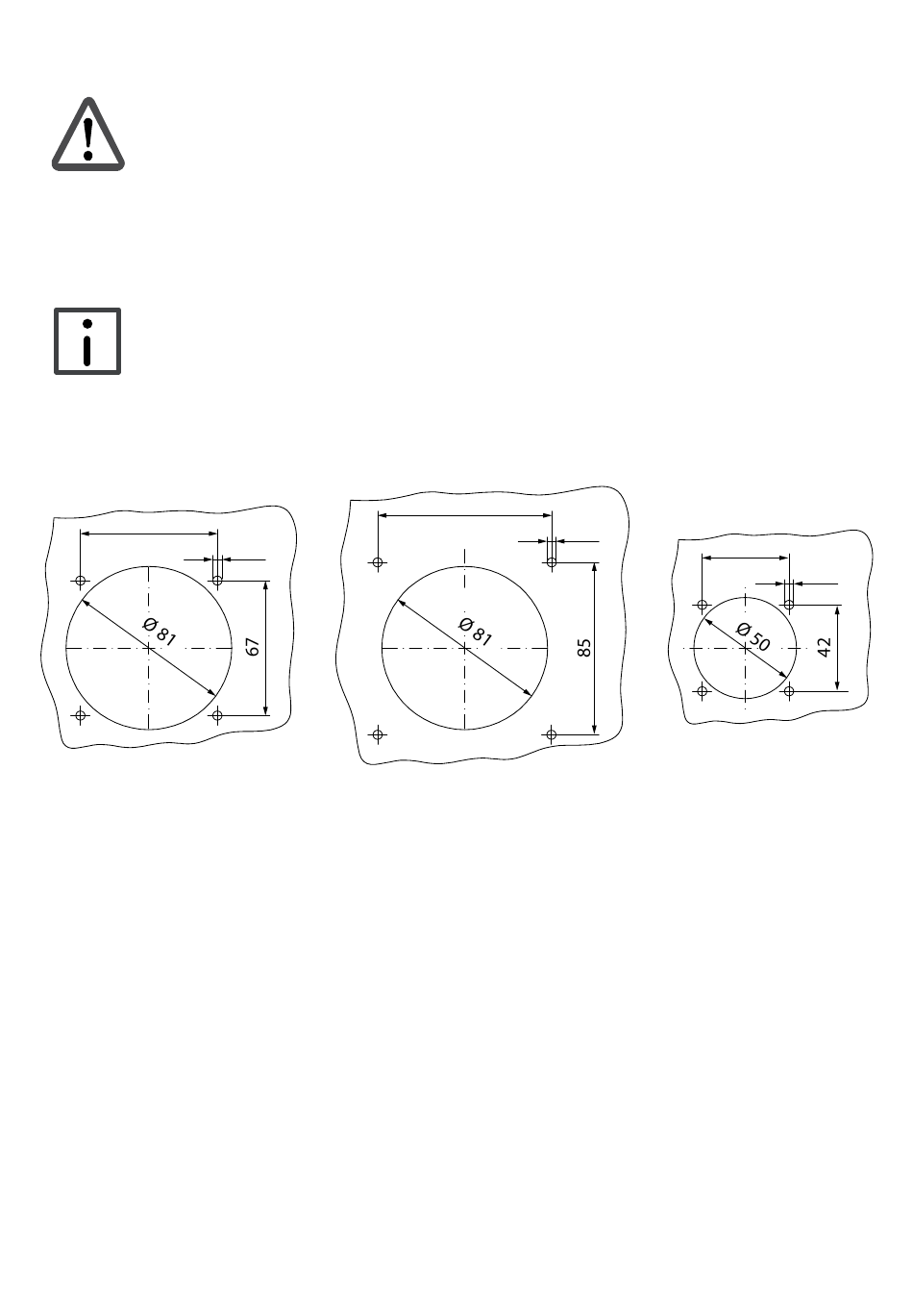

5.1.1. Dimensions of installation opening
67
VCS096, S3
Figure 7.
Joystick VCS0 ...: dimensions of installation openings (dimensions in mm)
Spohn + Burkhardt
4,5
85
4,5
VCS0 S1 ...
42
4,5
VCS0 72
VCS0 S0
VCS0 S
63
