5.1.3. Joystick VCS0... with rubber boot S3
Note
The switch panel is allowed to be maximum 5 mm thick.

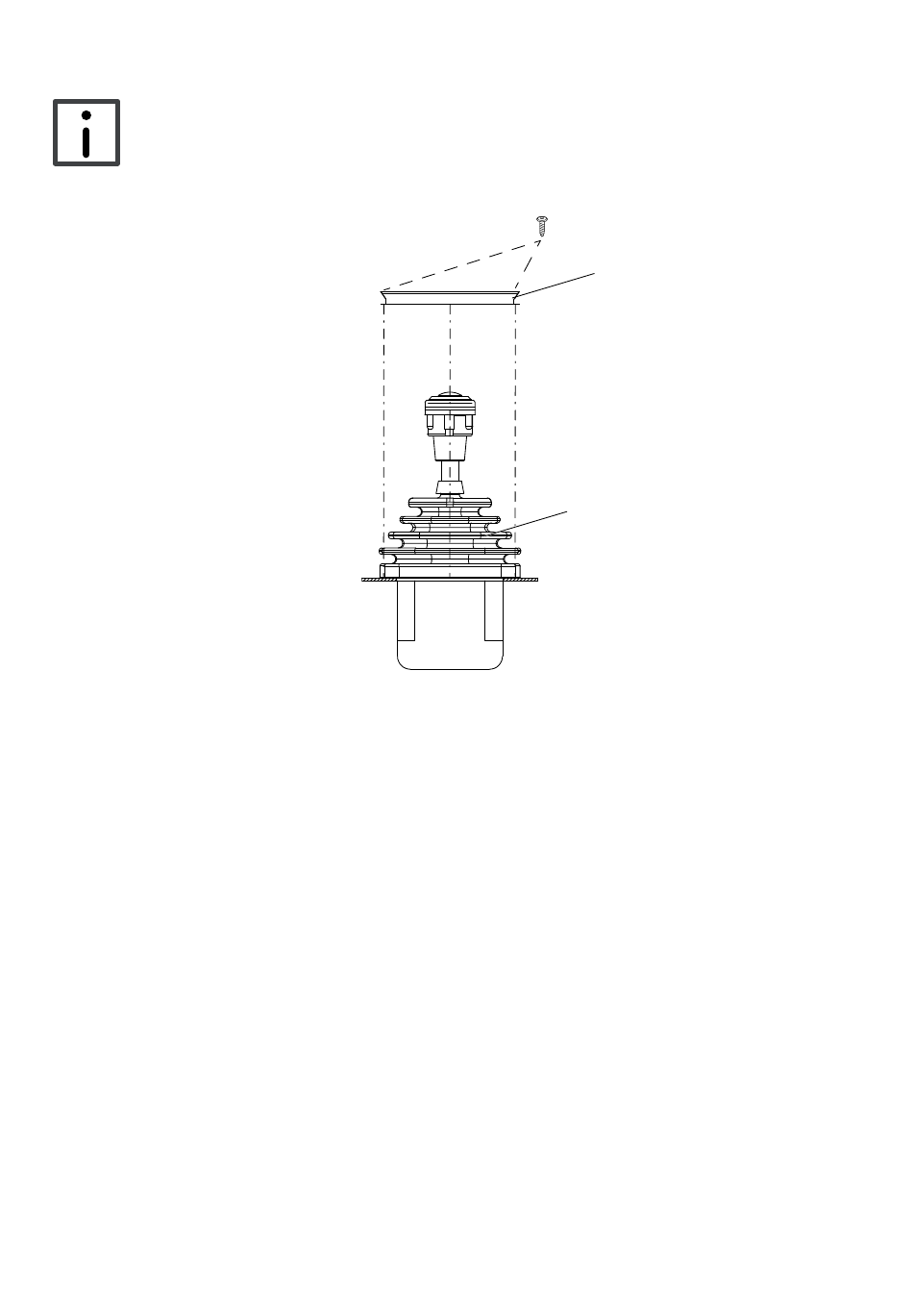

Figure 9.
Joystick VCS0 with rubber boot S3 - installation
Preparatory work
1. Disconnect the system from the supply of electrical power.
2. Prepare the installation space, see Figure 7 "Joystick VCS0 ...: dimensions of installation openings (di-
mensions in mm)", page 63.
3. Carefully pull the rubber boot (3) off the boot holder (22).
4. Undo the 4 screws M4x14 from the boot holder (22).
5. Press together the rubber boot (3) and carefully pull the boot holder (22) over the rubber boot (3).
6. Open the installation space
Installation
1. Press together the rubber boot (3) and push the joystick VCS0 through the installation opening
from below.
2. Press together the rubber boot (3) and pull the boot holder (22) over the rubber boot (3).
3. Fasten the joystick VCS0 to the mounting plate through the boot holder (22) using the 4 screws
M4 x 14.
4. Pull the rubber boot (3) over the boot holder (22).
5. Make the electrical connection, see section5.2 "Electrical connection", page 69.
