9. Removal

Danger!
All tasks on the device are only allowed to be undertaken by specialist personnel taking
into account the relevant safety regulations. Always pay attention to the safety instruc-
tions in chapter 1. "Safety", page 53.

9.1. Undoing electrical connections

1. Disconnect the system from the supply of electrical power.
2. Open the installation space.
3. Disconnect the connector or the electrical connections.

9.2. Mechanical removal

9.2.1. Joystick VCS0... with escutcheon holder

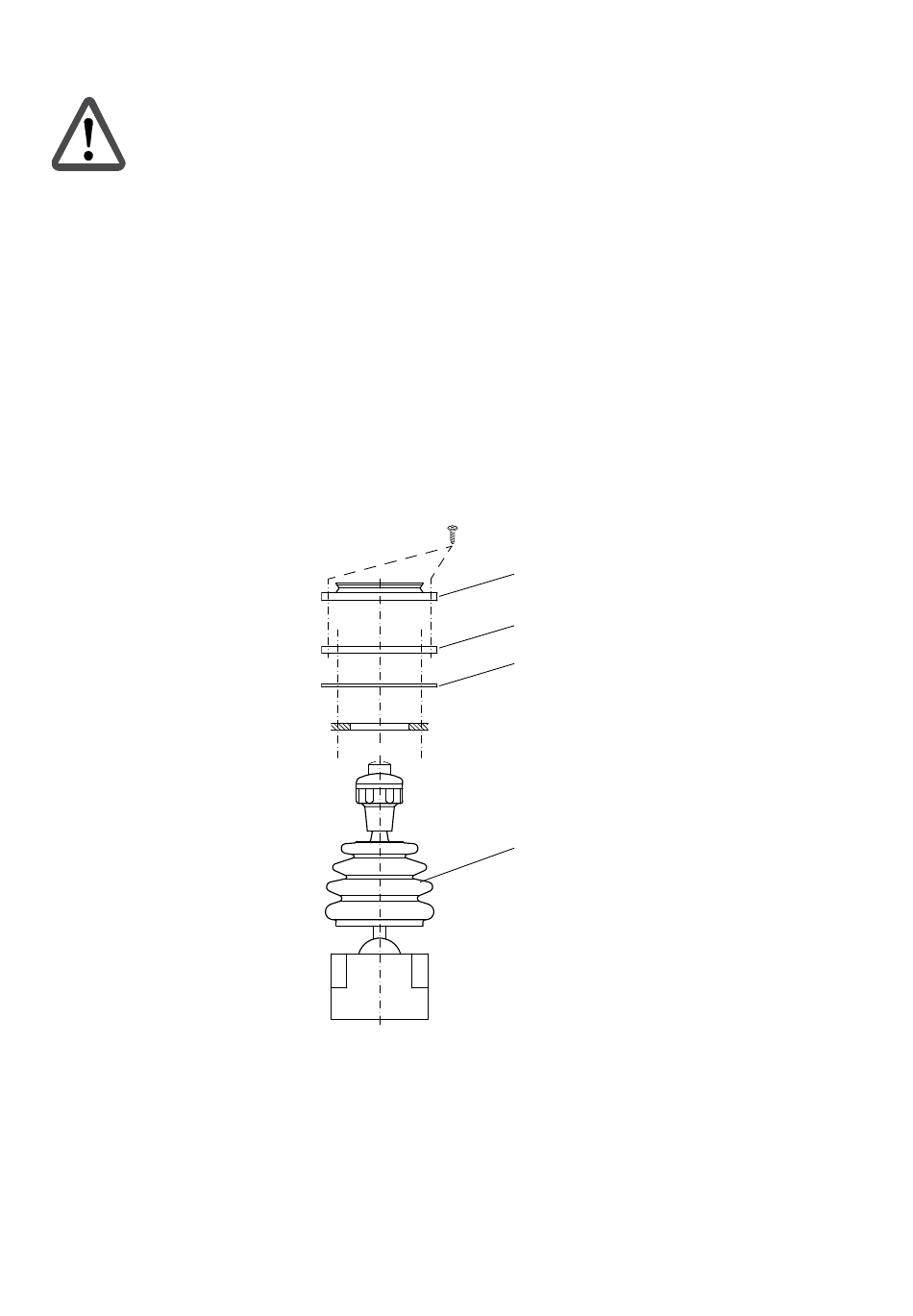

Figure 18. Joystick VCS0 – removal
1. Carefully remove the escutcheon (8) from the escutcheon holder (6) using a suitable tool (e.g.
flat-bladed screwdriver).
2. Press together the rubber boot (3) and carefully pull the escutcheon (8) and the film (7) over the
rubber boot (3).
3. Undo the 4 screws M4x14.
4. Press together the rubber boot (3) and pull the escutcheon holder (6), the seal (5) and the front plate
(4) over the rubber boot (3).
Spohn + Burkhardt
7; 8
6
5
3
