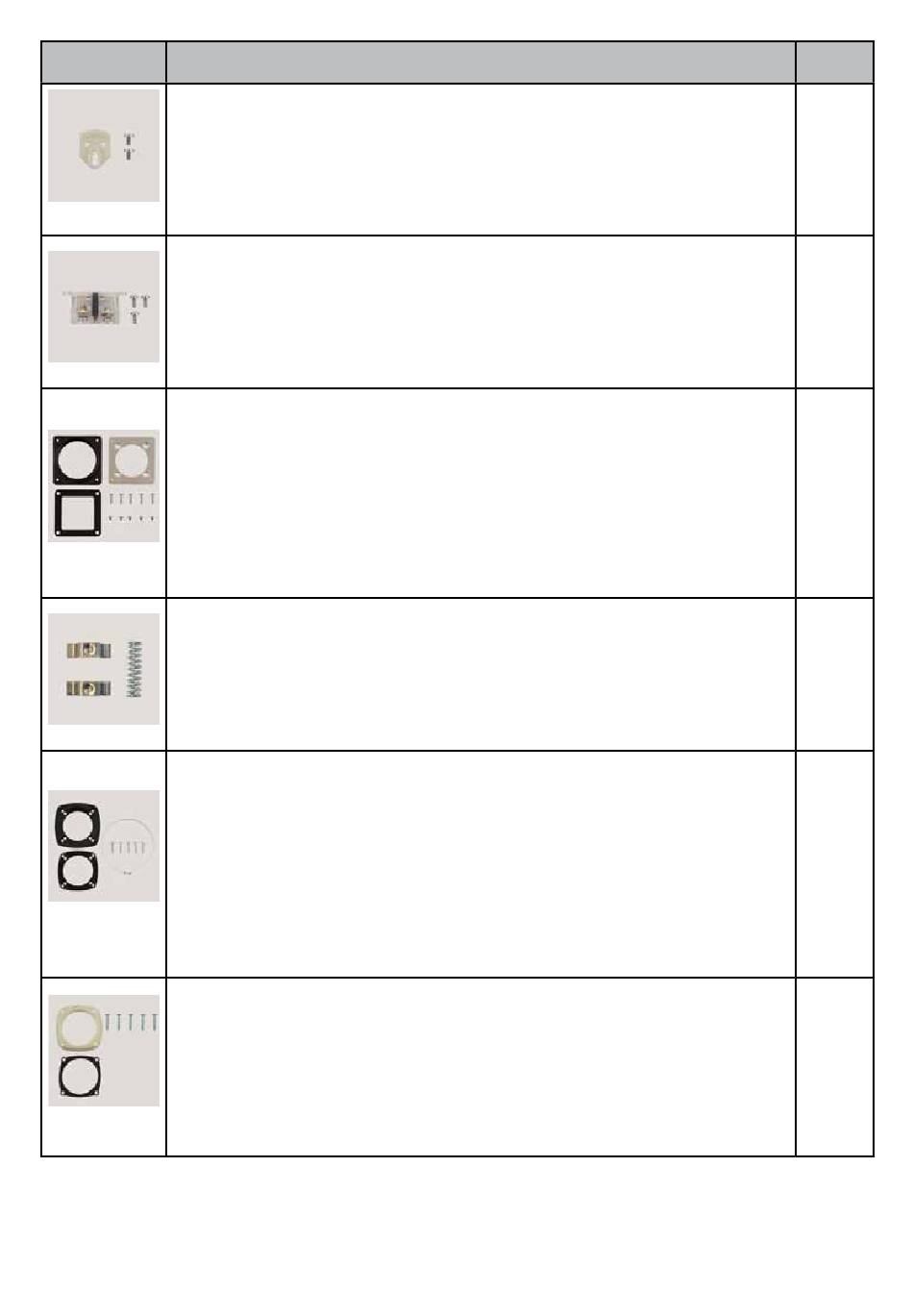

Spohn & Burkhardt VCS0 Betriebsanleitung Seite 87

Spare part Name/items supplied
Cam disk
for direction contact for VCS0 & CS1
1x CS061A cam disk programmed for VCS0 and CS1 for direction contact with
potentiometer
2x DIN 921 M3x6 5.8 VZ TX10 flat head screw
Zero contact
for VCS0
1x zero contact
3x WÜPLAST®W1452 3×6 TX10 steel 10.9 galvanized A3K pan head screw with
hexalobular socket for thermoplastic materials PT screw
Escutcheon black, aluminum
with holder 72×72 mm, aluminum for VCS0
1x seal
1x V0028R escutcheon holder for VCS0 escutcheon aluminum 72×72
1x V0044 escutcheon 72 x 72 mm aluminum black for VCS0 and CS1
5x W1423 4×16 10.9 A3K TX20 countersunk head screw with hexalobular socket
5x DIN 7985 M3x4 stainless steel A2 bare H pan head screw with cross head H
Return motion levers
with spring for VCS0
2x return motion lever
1x CS0-36-d1.4 L36 n9 spring for CS0 and CS1 joystick with Ø 1.4 mm for the
actuation of the return
Boot holder
with hose clip for VCS0
1x seal
1x boot holder
1x hose clip
5x Wüplast W1452 4×16 10.9 A3K TX20 pan head screw with hexalobular socket
for
thermoplastic materials
Boot holder
with seal for VCS0
1x rubber seal
1x boot holder
5x DIN 7982 3.9×22 steel galvanized countersunk head H countersunk self-tap-
ping screw Form C with cross head H
Spohn + Burkhardt
No.
51895
51903
51904
52141
51907
52140
