5. Open the installation space.
6. Press together the rubber boot (3) and pull the joystick VCS0 out of the installation space from be-
low.
9.2.2. Joystick VCS0... with rubber boot S3
22
3

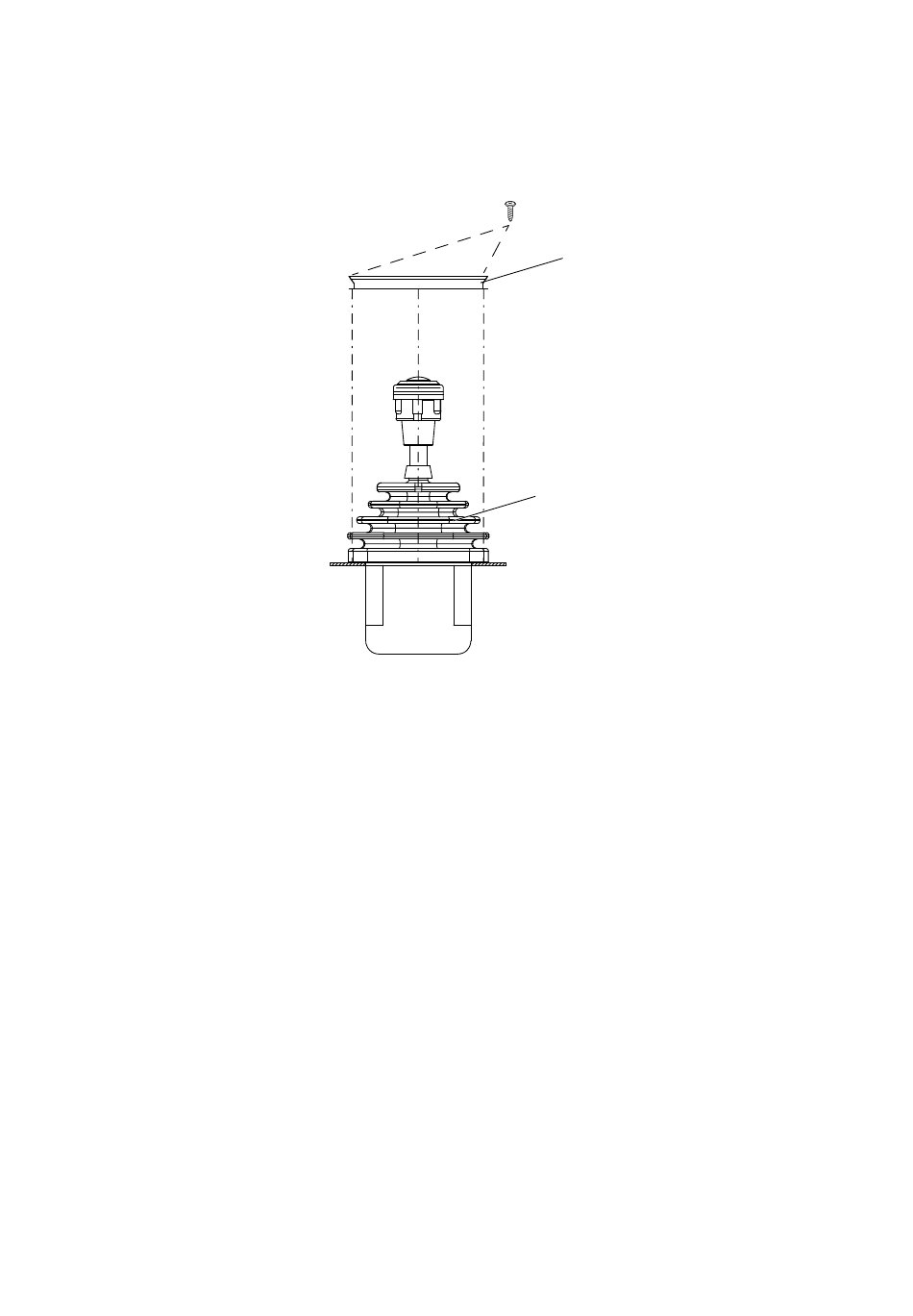

Figure 19. Joystick VCS0 basic version – removal
1. Pull the rubber boot (3) off the boot holder (22)
2. Undo the 4 screws M4x14.
3. Press together the rubber boot (3) and pull the boot holder (22) over the rubber boot (3).
4. Open the installation space and pull the joystick VCS0 out of the installation space from below.
