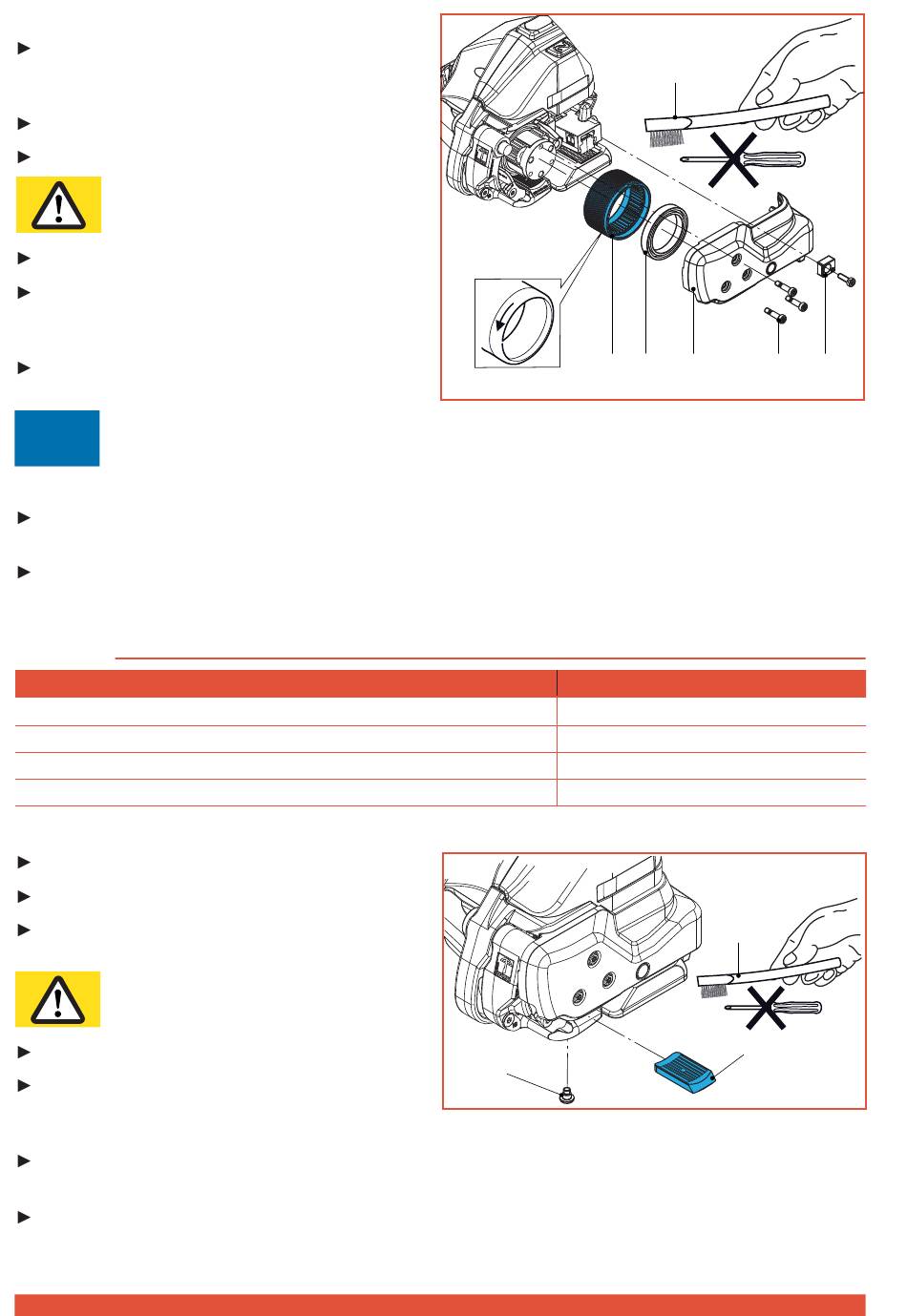

Cleaning/Replacing The Tooth Plate - Signode BXT3-13 Originalbetriebsanleitung

Dismantling
Remove battery from tool. Remove four cylin-
der screws Torx (4), strap guide rear (5) and
side cover (3).
Carefully pull out tension wheel (1).
Remove ball bearing (2) from tension wheel.
CAUTION
Wear eye protection when cleaning
with compressed air!
Clean tension wheel (1) with compressed air.
In the case of heavy soiling of the toothing:
Carefully clean tension wheel with enclosed
wire brush (6).
Check tension wheel for worn teeth. If several
teeth are worn, replace tension wheel.
Attention
!
The tension wheel must not be cleaned while it is rotating. Risk of tooth breakage!
Fitting
Fitting is performed in reverse order. Observe the direction of rotation of the tension wheel, see
arrow.
Lightly lubricate the inner toothing of the tension wheel with Klüber grease GBU Y 131 (Microlube).
6.5

Cleaning/replacing the tooth plate

Required parts
BXT3-13 / BXT3-16: Tooth plate (2) (wear part)
BXT3-19: Tooth plate (2) (wear part)
Torx counter-sunk screw Torx (1)
Wire brush (3)
Dismantling
Remove battery from tool.
Remove counter-sunk screw Torx (1).
Lift rocker lever towards the handle, remove
tooth plate (2).
CAUTION
Wear eye protection when cleaning
with compressed air!
Clean tooth plate (2) with compressed air.
In the case of heavy soiling of the toothing:
Carefully clean tooth plate with enclosed wire
brush (3).
Check tooth plate for worn teeth. If several teeth are worn, replace tooth plate.
Fitting
Fitting is performed in reverse order. Secure counter-sunk screw (1) with Loctite 222.
– The tooth plate (2 ) must sit movably in the rocker.
48 of 53
ENGLISH SIGNODE BXT3-13/16/19
1 2
Order number
1821.048.027
1821.048.031
1832.039.285
1821.901.004
1
6
3 4 5
BXT3-19
3
2
V 02.16
