5

Operating instructions

5.1

Strapping

Preconditions
The tool is adjusted to the width of the strap to be used (Section 5.3).
The charged battery is inserted (Section 4.1.2).
The desired operating mode is set (Section 4.2.). In this description it is assumed that the selected
operating mode is "SEMI" (semi-automatic).
Desired tension force is set (Section 4.3).
Desired welding time is set (Section 4.5).

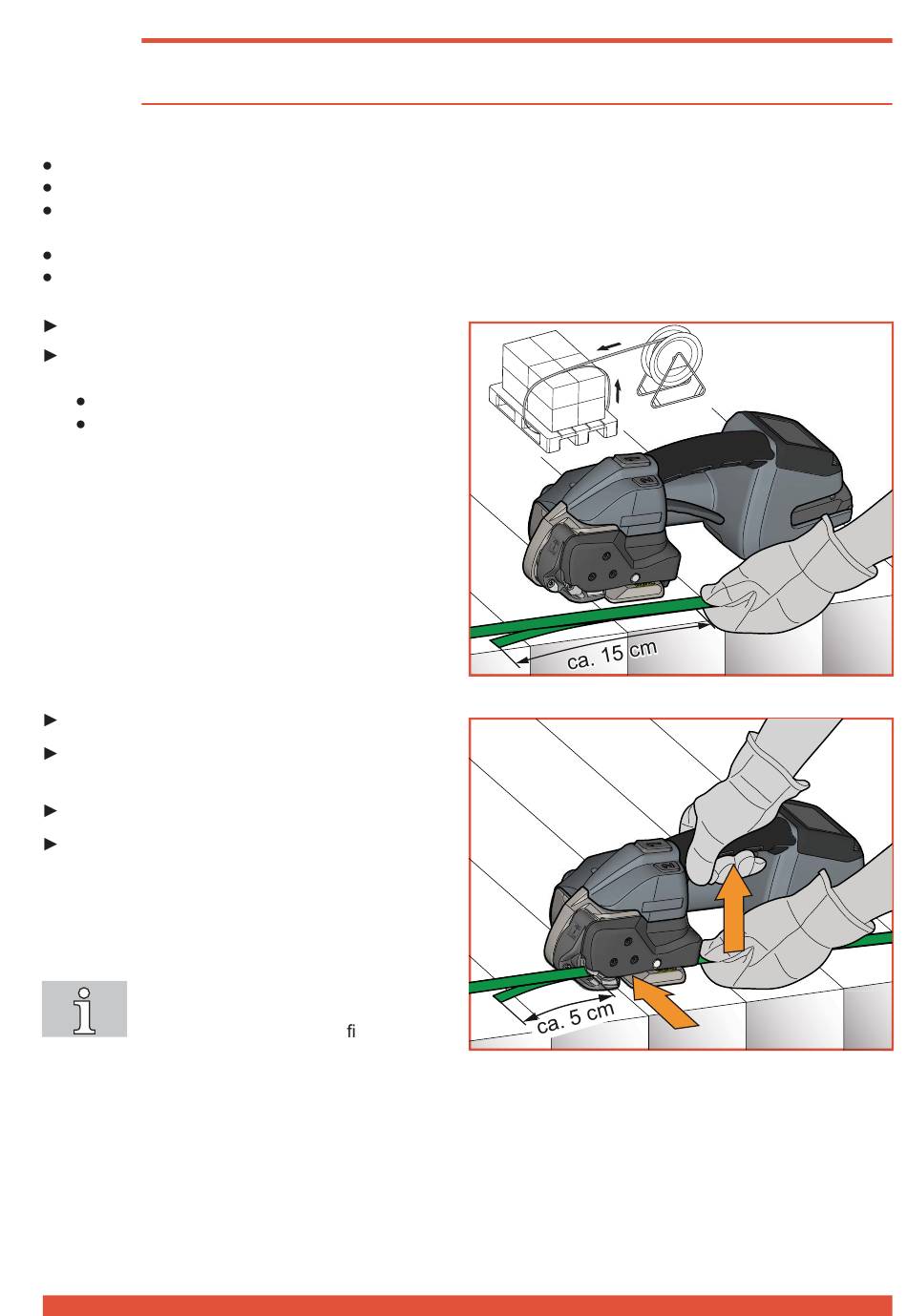

Place the strap around the packaged goods.
Grasp the straps at the top of the goods with
your left hand so that:
The straps lie one above the other.
The beginning of the strap lies underneath
and should project 15 cm beyond your
hand.
Take the tool with your right hand.
Lift rocker lever.
– Rocker of the tensioning device opens.
Insert superimposed straps up to the end stop.
Release rocker lever.
– The straps are clamped in the tensioning
device.
– The beginning of the strap should project
approx. 5 cm.
If the strap is not inserted completely,
the strap guide indicator (Section
3.1, item 9) shows a red eld. Insert
the strap completely. The strap guide
indicator is black.
