6.6

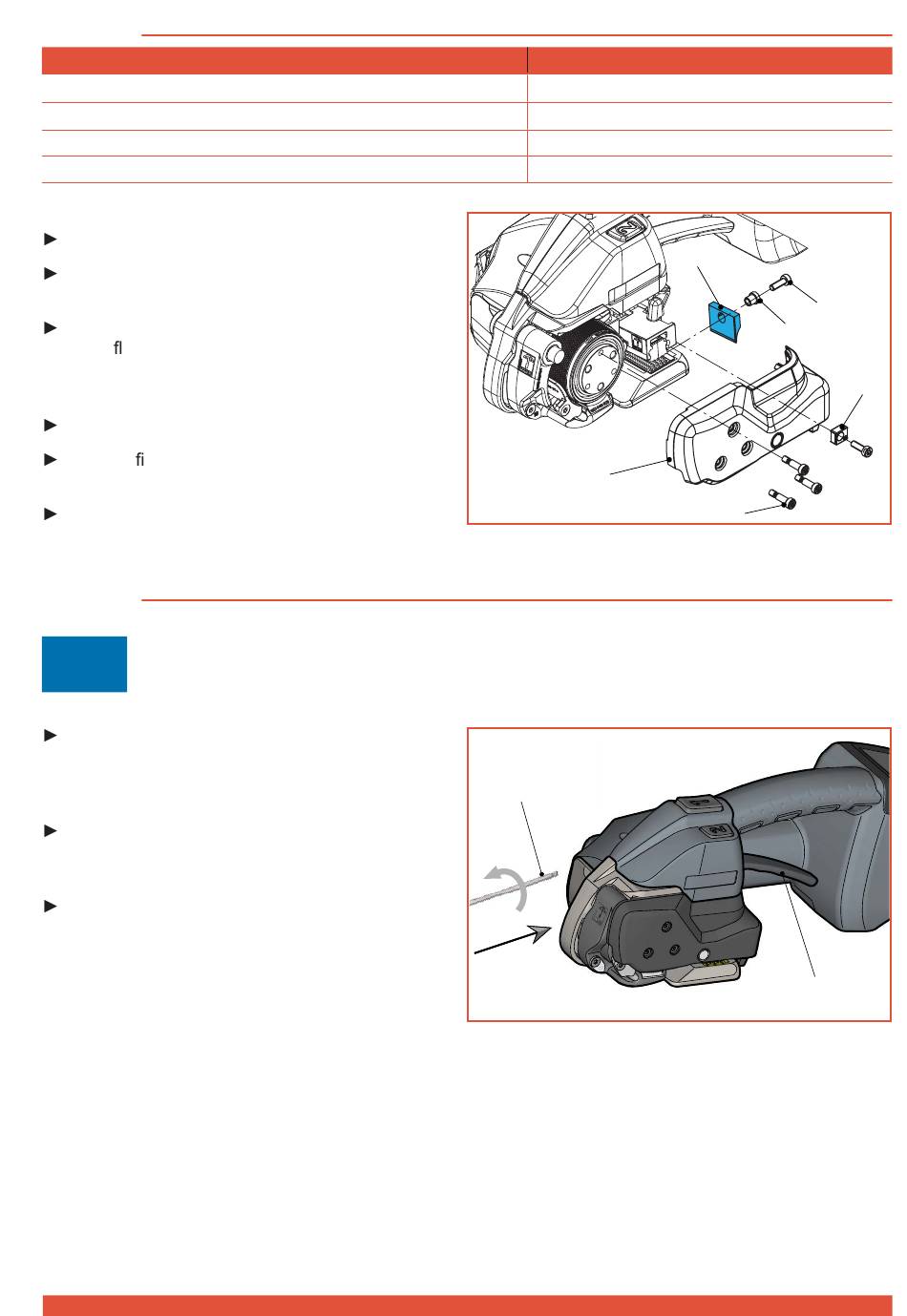

Replacing the knife

Required parts
BXT3-13 / BXT3-16: Knife (1) (wear part)
BXT3-19: Knife (1) (wear part)
Cylinder screw Torx, M4x12 (3) (5)
Flanged bushing (6)
Dismantling
Remove battery from tool.
Remove four cylinder screws Torx (3), strap
guide rear (4) and side cover (2).
Remove cylinder screw Torx (5) and knife (1)
with anged bushing (6). Replace knife.
Fitting
Fitting is performed in reverse order.
Before tting the knife (1), check whether the
pressure spring above the knife is inserted.
Secure cylinder screw (5) with Loctite 222.
6.7

Tool reset

Attention
!
The tool reset may only be performed if the rocker lever is blocked. Never attempt to lift
the rocker lever by force!
Place the enclosed 3 mm hex. socket-head
key (1) through the bore hole in the base
plate directly onto the cylinder screw located
underneath (see arrow).
Perform ten full rotations in the coun-
ter-clockwise direction. This requires a little
physical effort.
Lift rocker lever (2).
– The welding mechanism must now pivot
upwards.
If the tool reset could not be carried out success-
fully, please contact the Service Centre!
V 02.16
1
SIGNODE BXT3-13/16/19
Order number
1821.209.037
1821.209.041
1913.904.124
1832.022.238
1
2
ENGLISH
5
6
4
3
BXT3-19
2
49 of 53
