WARNING
Strap tensioning or strapping, danger of jamming and crushing
Do not place hands or other body parts between the strap and the packaged goods during
the strapping process. Ensure that there are no other persons in the hazard zone.
For an emergency stop in the case of danger (trapped person):
To release the strap tension (before welding), actuate the rocker lever. In operating
mode AUTO, also the tensioning or welding button can be pressed again.
After welding, break the strap at the welded seal or cut it using a tool.

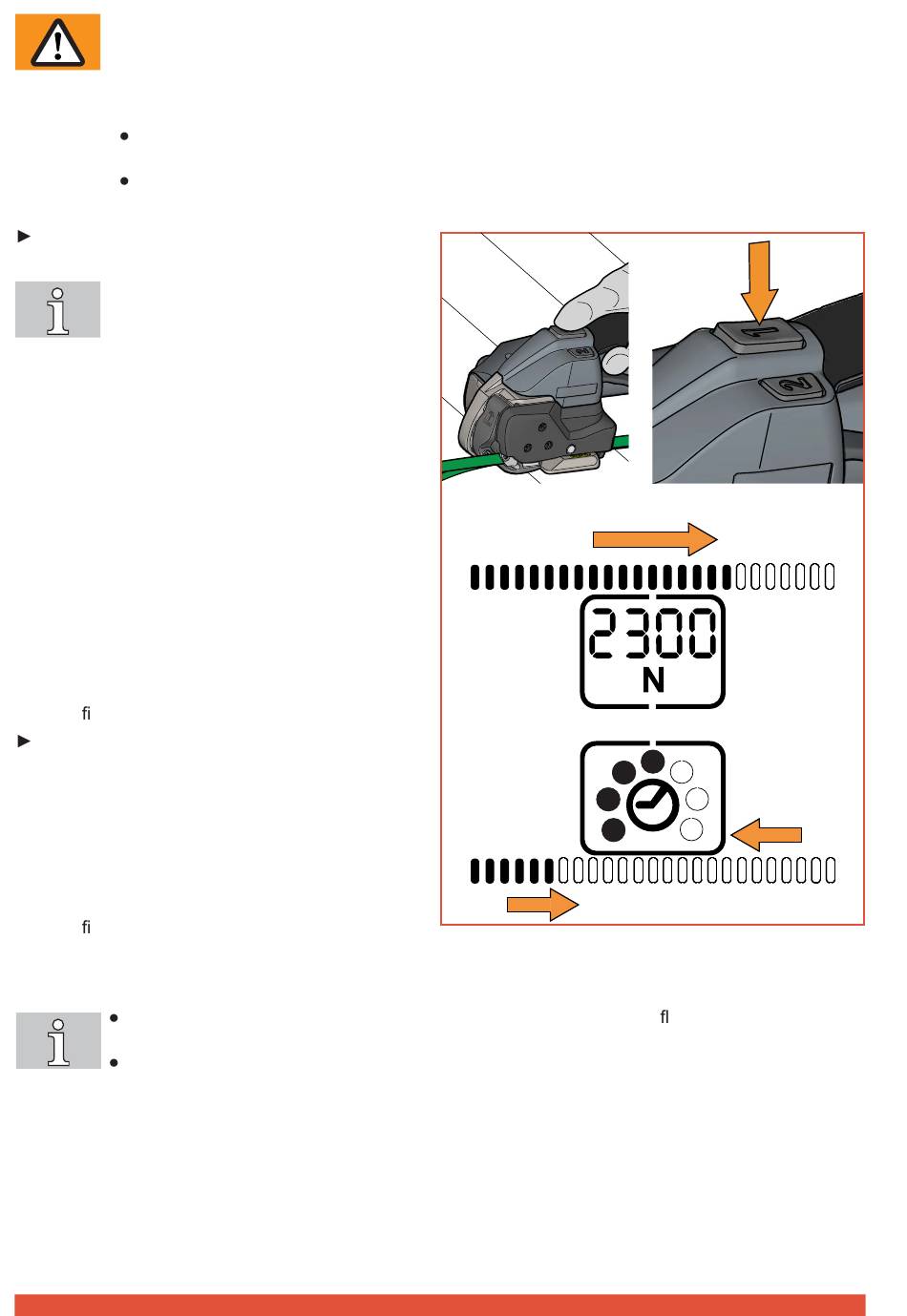

Press the tensioning button and hold it down
until the set tension force has been reached.
The tension speed is variable and
depends on the pressure on the ten-
sioning button (MAN/SEMI operating
mode).
Stopping/continuing the tensioning
process:
Release / press the tensioning button
again.
– The following information is displayed:
The set tension force and the status indi-
cator bar with the reached tension force in
relation to the set tension force.
– The tensioning process is ended when the
status indicator bar has been completely
lled.
The tensioning button can now be released.
– The straps are now automatically welded
and the upper strap is cut off.
– The following information is displayed:
The set welding time and the status
indicator bar.
– The welding process is ended when the
status indicator bar has been completely
lled (1.) After this the cooling time begins
(2.). At the end of the cooling time an acoustic signal sounds and the operating panel lights up
green for a second.
Welding without strap tension: Press the tensioning button brie y, then press the weld-
ing button (Section 3.1, item 2).
After welding, do not re-tension (do not press the tensioning button any more).
