5.3

Setting the strap width

The tools can be operated with the following strap widths:
BXT3-13: 9–10 mm, 12–13 mm (
BXT3-16: 12-13 mm, 15-16 mm (
BXT3-19: 15-16 mm, 18-19 mm (
1
2

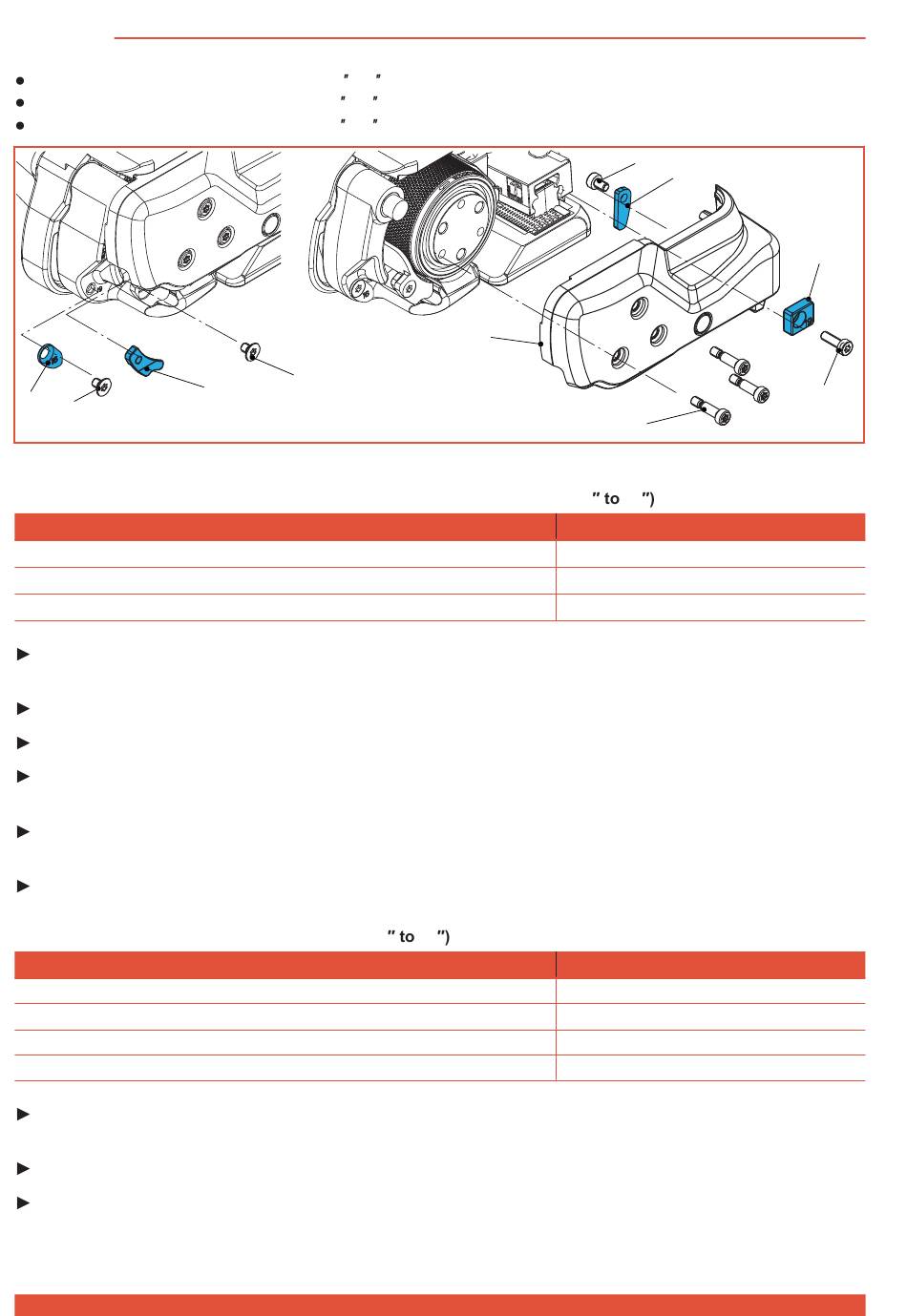

5.3.1 BXT3-13: Change strap width from 9 mm to 13 mm (
Required parts
Strap guide front 13 mm (3)
Strap guide rear 13 mm (8)
Strap guide rear 13 mm (9)
Remove battery from tool. Remove three cylinder screws Torx (6). Lift rocker lever towards the
handle, remove cylinder screw Torx (7) and strap guide rear 9 mm (8).
Remove side cover (5).
Remove counter-sunk screw Torx (2) and strap guide front 9 mm (1).
Remove counter-sunk screw Torx (4) and strap guide front 9 mm (3). Fit strap guide front 13 mm
(3) (secure counter-sunk screw with Loctite 222).
Remove cylinder screw Torx (10) and strap guide rear 9 mm (9). Fit strap guide rear 13 mm (9)
(secure cylinder screw with Loctite 222).
Fit side cover (5) (secure cylinder screw with Loctite 222). Install strap guide rear 13 mm (8).
BXT3-13: Change from 13 mm to 9 mm (
Required parts
Strap guide front 9 mm (1)
Strap guide rear 9 mm (8)
Strap guide rear 9 mm (9)
Counter-sunk screw Torx, M4x6 (2) (4)
Remove battery from tool. Remove three cylinder screws Torx (6). Lift rocker lever towards the
handle, remove cylinder screw Torx (7) and strap guide rear 13 mm (8).
Remove side cover (5).
Fit strap guide front 9 mm (1) (secure counter-sunk screw with Loctite 222).
44 of 53
ENGLISH
/ /
,
3 1
8 2
/ /
1 , 5
2 8
/ /
,
5 3
8 4
4
3
/
1
SIGNODE BXT3-13/16/19
)
)
)
5
/
3
2 8
10
9
6
/ /
3 1
8 2
Order number
1832.031.051
1832.041.019
1832.042.043
Order number
1832.031.121
1832.041.020
1832.042.047
1912.204.064
