3.2

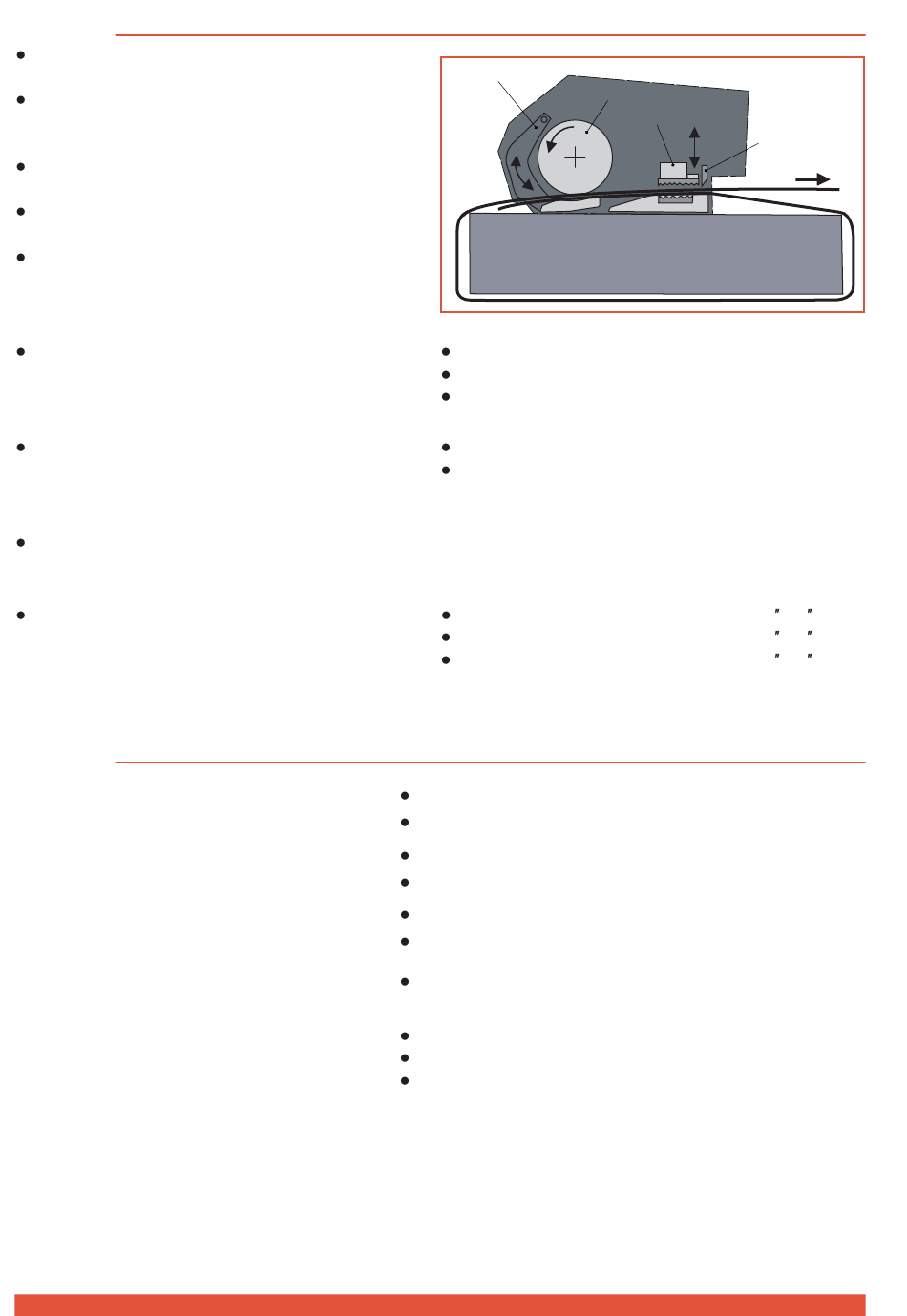

Function
The rocker lever is used to open the tension-
ing device so that the straps can be inserted.
The straps are clamped between the tooth
plate on the rocker (1) and the tension wheel
(2).
The strap is tensioned by the tension wheel
(2) rotating in a counter-clockwise direction.
The straps are welded in the welding device
(3) using the friction welding process.
The upper strap is cut off by the knife (4).
You can choose between three operating
modes: (Section 4.2)
You can also choose between two tension
ranges: (Section 4.3/4.4)
The welding time can be set.
(Section 4.5)
The tools can be operated with different strap
widths (Section 7):
3.3
Scope of delivery
For strapping tool BXT3-13 / BXT3-16:
or for USA version:
or for Japan version:
or for Australia version:
Tool kit consisting of:
34 of 53
ENGLISH
1
Semi-automatic (standard/factory setting)
Fully automatic
Manual
Standard tension for PET straps
Soft tension for PP straps (Tension wheel
starts slowly. Prevents excessive soiling of
tools.)
BXT3-13: 9–10 mm, 12–13 mm (
BXT3-16: 12–13 mm, 15–16 mm (
BXT3-19: 15–16 mm, 18–19 mm (
Battery 18 V/2.0 Ah LI-Ion
Battery charger AL 1880 CV EU
Battery 18 V/2.0 Ah LI-Ion (US)
Battery charger AL 1880 CV (US) Part no 2188.021
Battery 18 V/2.0 Ah LI-Ion (JP)
Battery charger AL 1880 CV (JP)
Battery charger AL 1880 CV (AUS) Part no 2188.023
Wire brush
Screwdriver Torx T20
Offset screwdriver
SIGNODE BXT3-13/16/19
2
3
4
/
3
/
1
/
5
Part no 2187.011
Part no 2188.020
Part no 2187.012
Part no 2187.013
Part no 2188.022
Part no 1821.901.004
Part no 1890.102.020
Part no 1821.901.007
/
,
)
1
8
2
/
,
5
)
2
8
/
,
)
3
8
4
V 02.16
