4.2.2

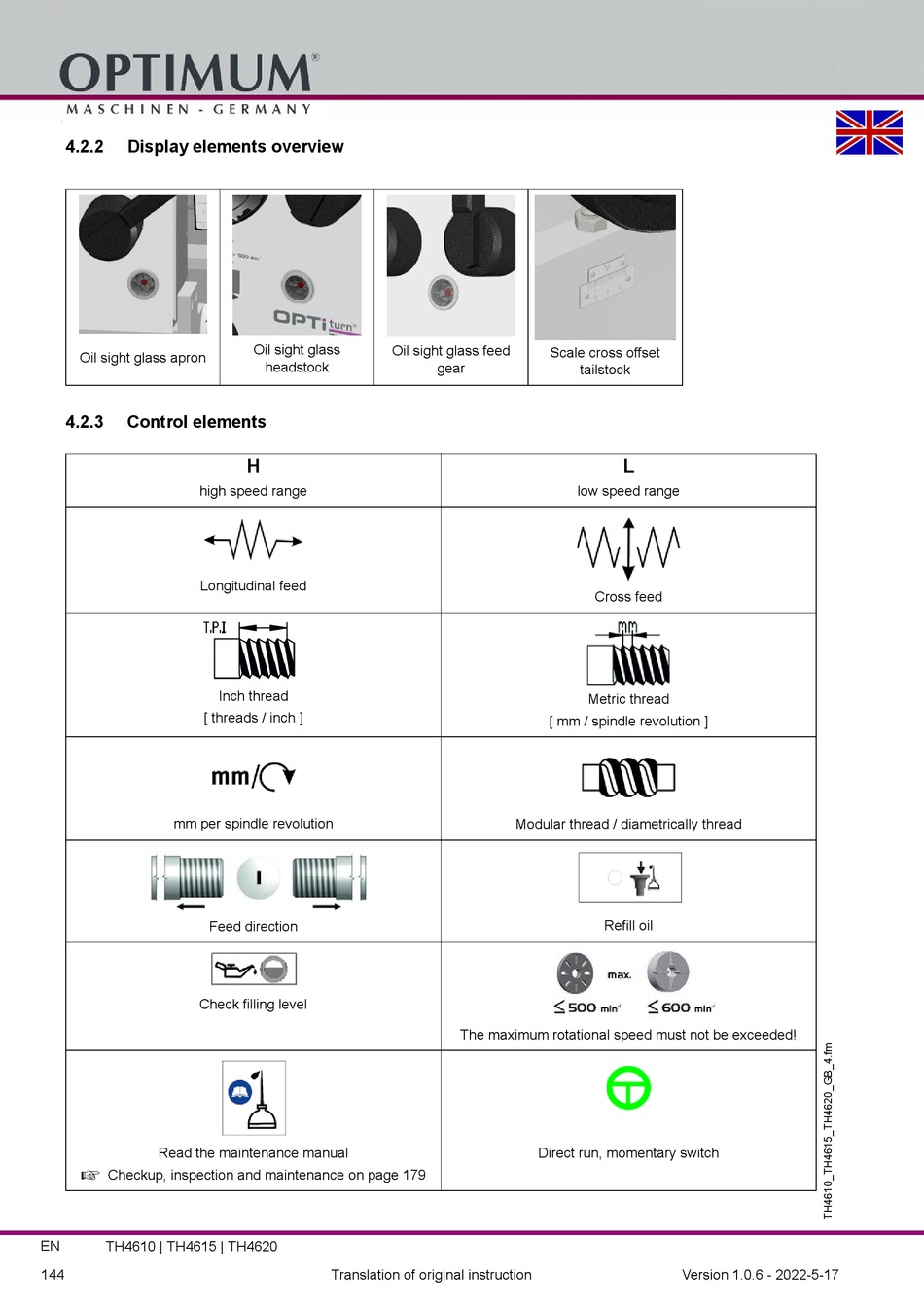

Display elements overview

Oil sight glass apron
4.2.3

Control elements

high speed range
Longitudinal feed
[ threads / inch ]
mm per spindle revolution
Feed direction
Check filling level
Read the maintenance manual

Checkup, inspection and maintenance on page 179
EN
TH4610 | TH4615 | TH4620
144
Oil sight glass
Oil sight glass feed
headstock
H
Inch thread
Translation of original instruction
Scale cross offset
gear
tailstock
low speed range
Cross feed
Metric thread
[ mm / spindle revolution ]
Modular thread / diametrically thread
Refill oil
The maximum rotational speed must not be exceeded!
Direct run, momentary switch
L
