Safety

Commission the lathe only under the following conditions:
The lathe is in proper working order.

The lathe is used as prescribed.

The operating manual is followed.

All safety devices are installed and activated.

Eliminate or have all malfunctions rectified promptly. Stop the lathe immediately in the event of
any abnormality in operation and make sure it cannot be started-up accidentally or without
authorisation. Notify the person responsible immediately of any modification.

Safety during operation on page 123
4.2.1

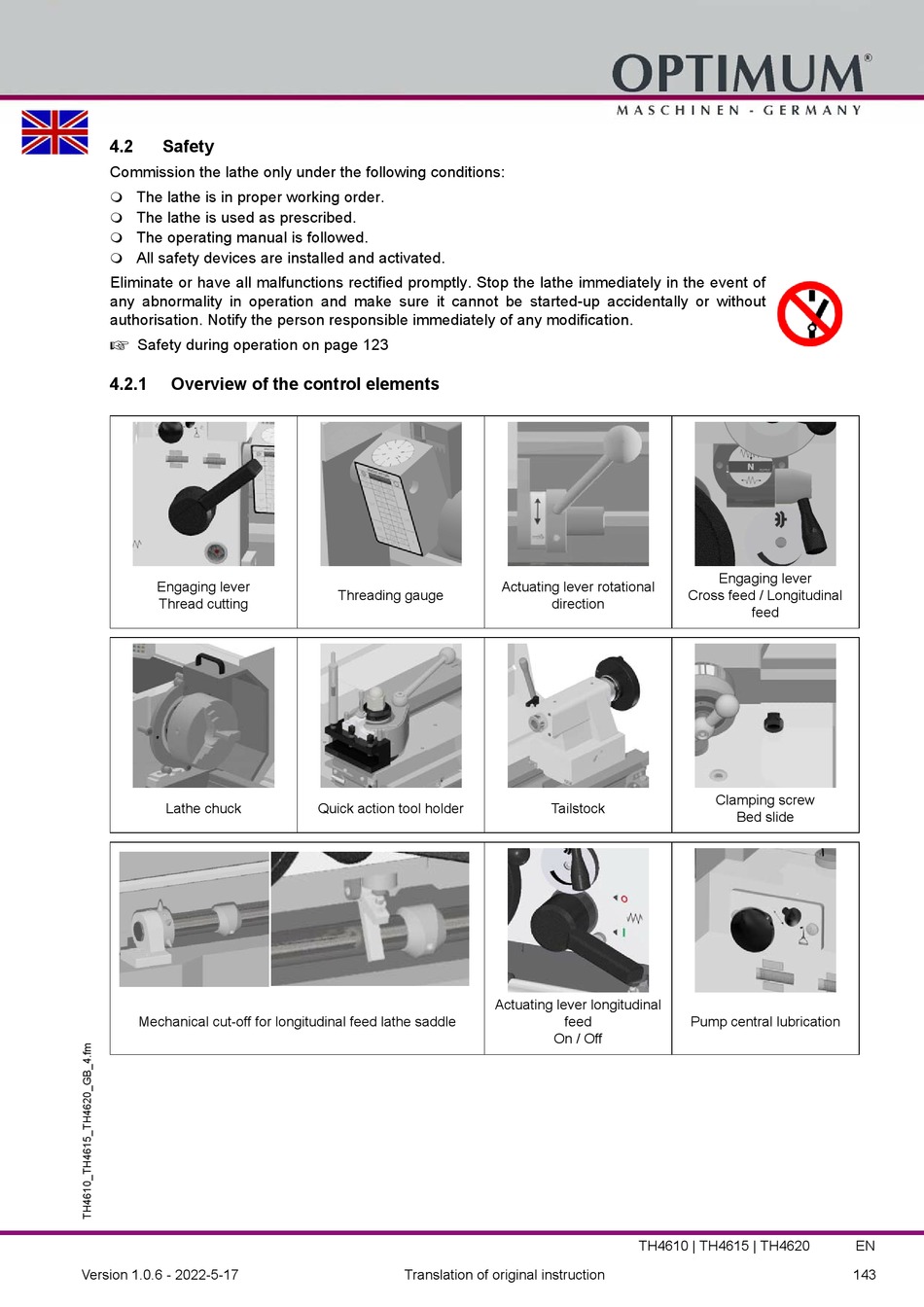

Overview of the control elements

Engaging lever
Thread cutting
Lathe chuck
Mechanical cut-off for longitudinal feed lathe saddle
Version 1.0.6 - 2022-5-17
Threading gauge
Quick action tool holder
Translation of original instruction
Actuating lever rotational
direction
Tailstock
Actuating lever longitudinal
feed
On / Off
TH4610 | TH4615 | TH4620
Engaging lever
Cross feed / Longitudinal
feed
Clamping screw
Bed slide
Pump central lubrication
