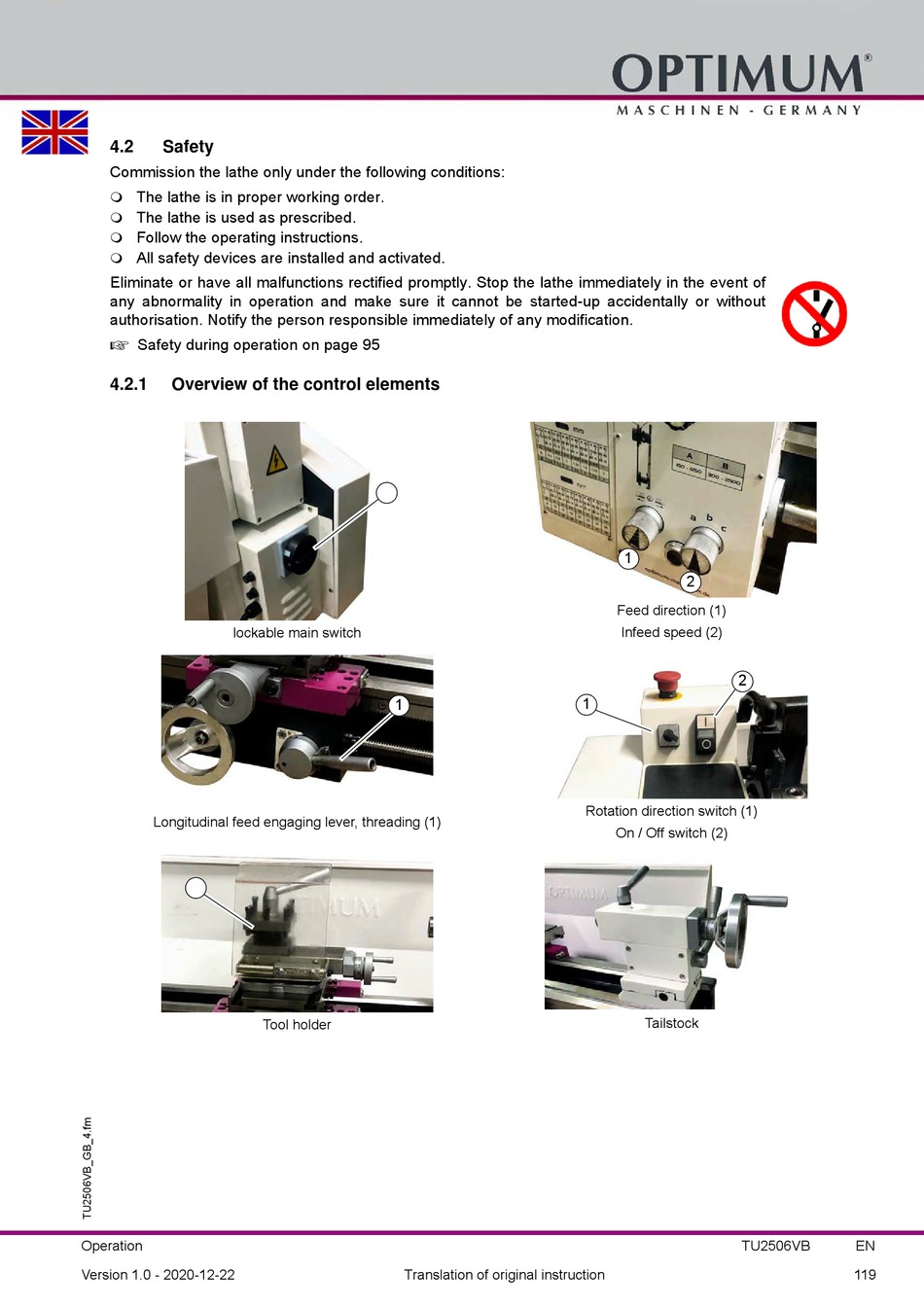

4.2

Safety

Commission the lathe only under the following conditions:
The lathe is in proper working order.

The lathe is used as prescribed.

Follow the operating instructions.

All safety devices are installed and activated.

Eliminate or have all malfunctions rectified promptly. Stop the lathe immediately in the event of
any abnormality in operation and make sure it cannot be started-up accidentally or without
authorisation. Notify the person responsible immediately of any modification.

Safety during operation on page 95
4.2.1

Overview of the control elements

lockable main switch
Longitudinal feed engaging lever, threading (1)
Operation
Version 1.0 - 2020-12-22
1
Tool holder
Translation of original instruction
1
2
Feed direction (1)
Infeed speed (2)
2
1
Rotation direction switch (1)
On / Off switch (2)
Tailstock
