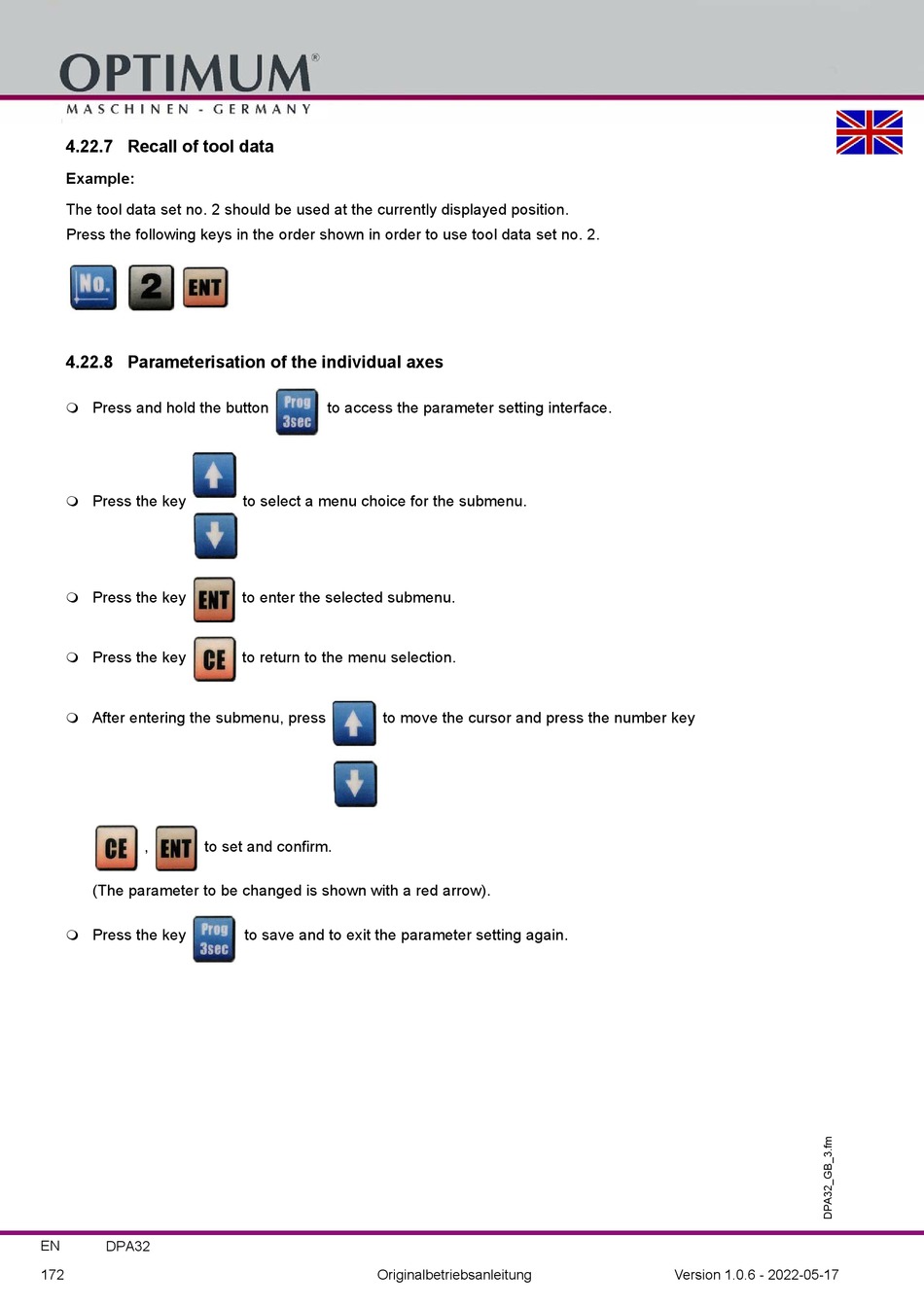

4.22.7 Recall of tool data

Example:
The tool data set no. 2 should be used at the currently displayed position.
Press the following keys in the order shown in order to use tool data set no. 2.

4.22.8 Parameterisation of the individual axes

Press and hold the button

Press the key

Press the key

Press the key

After entering the submenu, press

, to set and confirm.
(The parameter to be changed is shown with a red arrow).
Press the key

EN
DPA32
172
to access the parameter setting interface.
to select a menu choice for the submenu.
to enter the selected submenu.
to return to the menu selection.
to move the cursor and press the number key
to save and to exit the parameter setting again.
