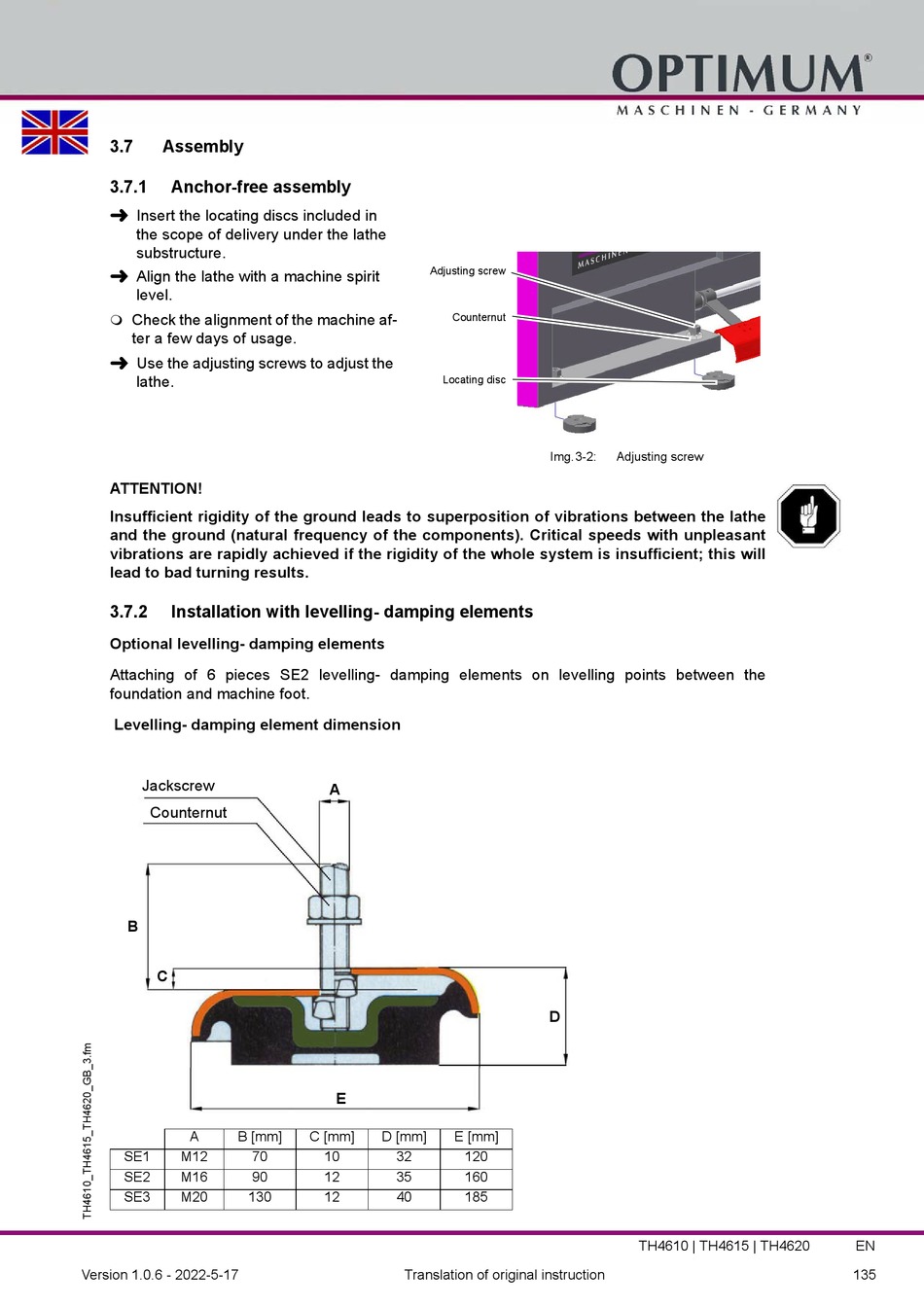

3.7
Assembly
3.7.1
Anchor-free assembly
Insert the locating discs included in
the scope of delivery under the lathe
substructure.
Align the lathe with a machine spirit
level.
Check the alignment of the machine af-
ter a few days of usage.
Use the adjusting screws to adjust the
lathe.
ATTENTION!
Insufficient rigidity of the ground leads to superposition of vibrations between the lathe
and the ground (natural frequency of the components). Critical speeds with unpleasant
vibrations are rapidly achieved if the rigidity of the whole system is insufficient; this will
lead to bad turning results.
3.7.2
Installation with levelling- damping elements
Optional levelling- damping elements
Attaching of 6 pieces SE2 levelling- damping elements on levelling points between the
foundation and machine foot.
Levelling- damping element dimension
Jackscrew
Counternut
B
C
A
B [mm]
SE1
M12
70
SE2
M16
90
SE3
M20
130
Version 1.0.6 - 2022-5-17
Adjusting screw
Counternut
Locating disc
A
E
C [mm]
D [mm]
E [mm]
10
32
120
12
35
160
12
40
185
Translation of original instruction
Img.3-2:
Adjusting screw
D
