6.3 Switching behavior
8022570.1FBN/15.09.2022 | SICK
Subject to change without notice
Distance values AVG 1
Repeatability
Distance value update rate:
0.8 ms
1
2

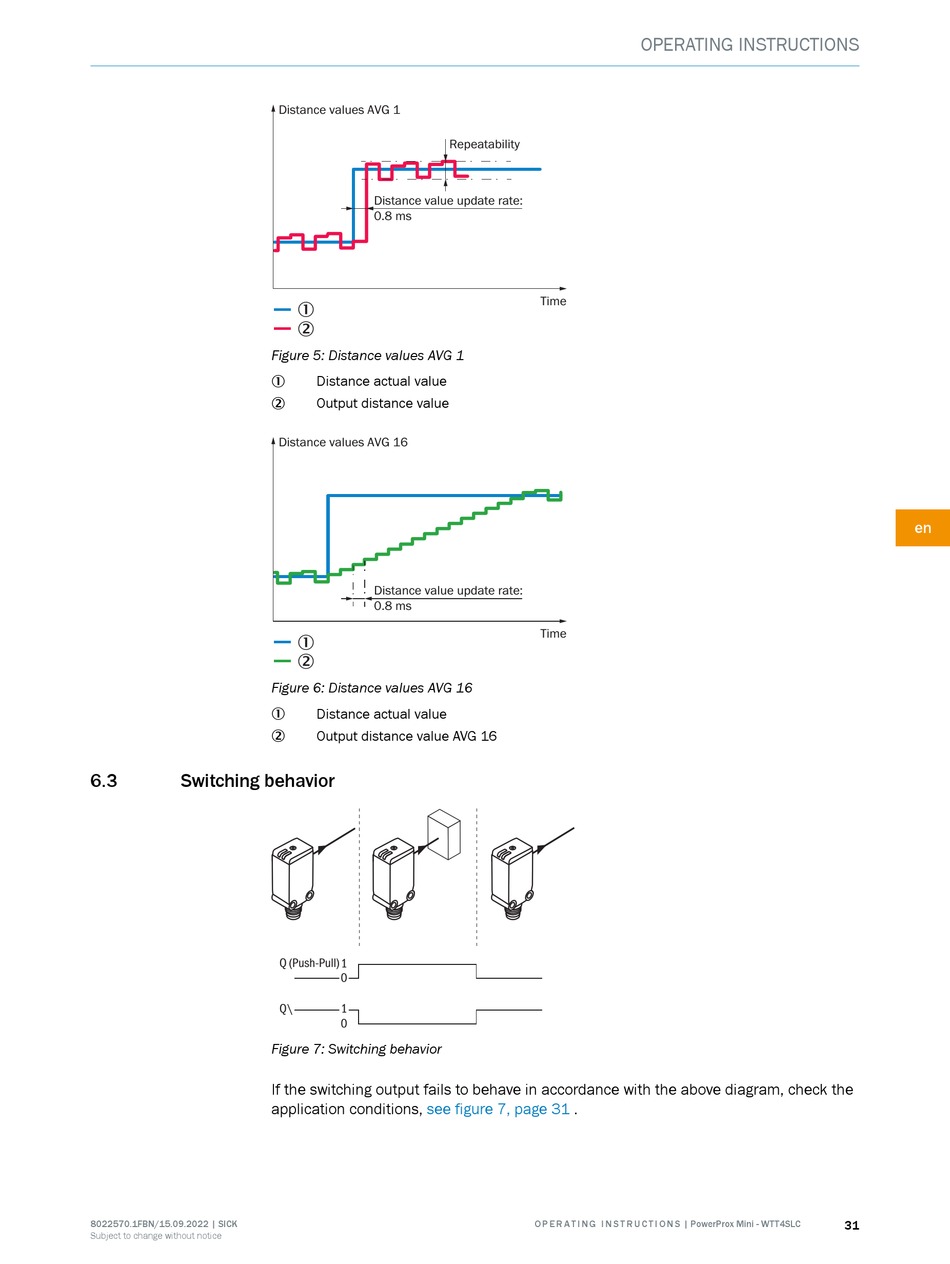

Figure 5: Distance values AVG 1
Distance actual value
1
Output distance value
2
Distance values AVG 16
Distance value update rate:
0.8 ms
1
2
Figure 6: Distance values AVG 16
Distance actual value
1
Output distance value AVG 16
2
Q (Push-Pull) 1
0
Q\ 1
0
Figure 7: Switching behavior
If the switching output fails to behave in accordance with the above diagram, check the
application conditions, see figure 7, page 31
OPERATING INSTRUCTIONS
Time
Time
.
