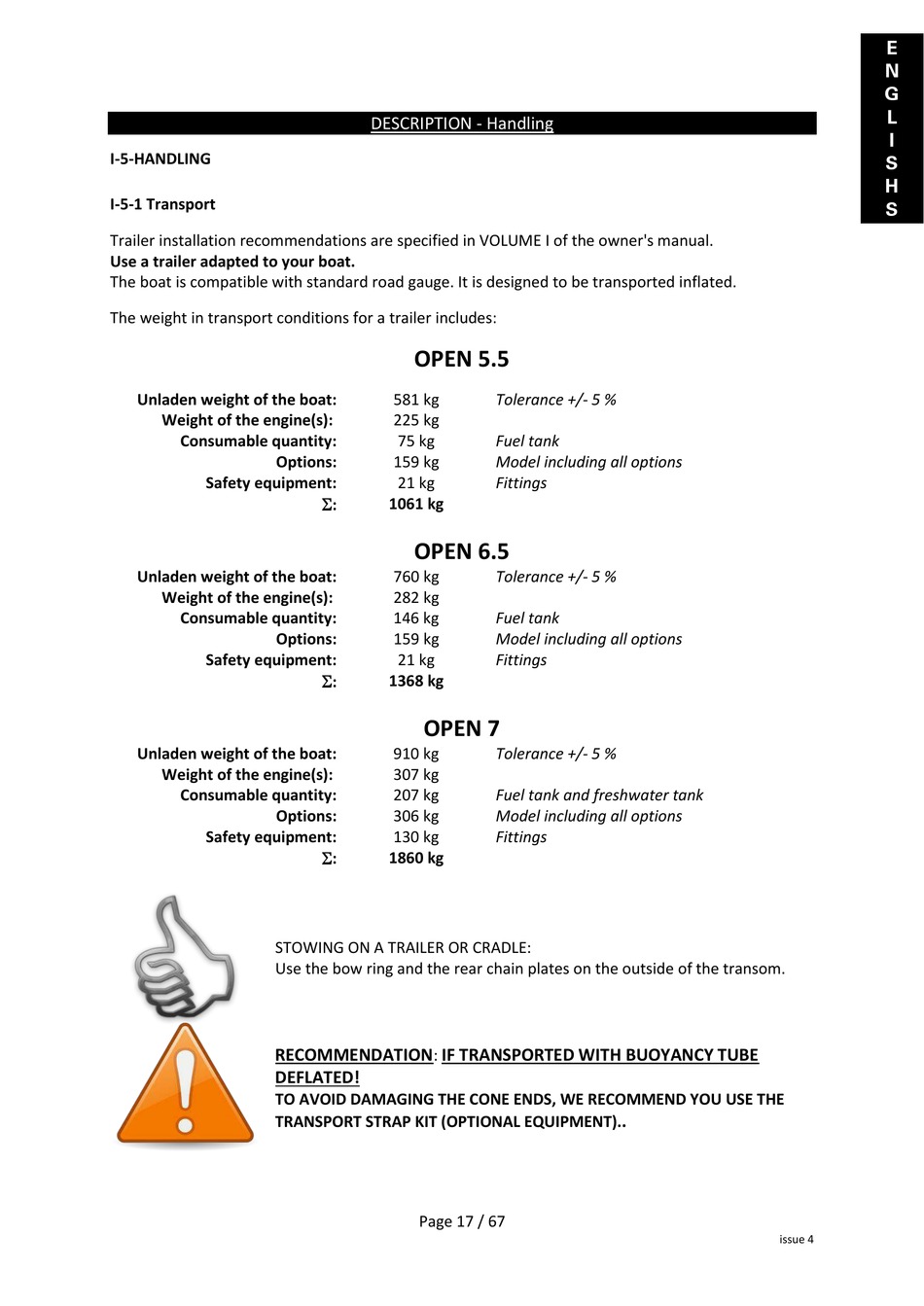

I-5-HANDLING

I-5-1 Transport

Trailer installation recommendations are specified in VOLUME I of the owner's manual.
Use a trailer adapted to your boat.
The boat is compatible with standard road gauge. It is designed to be transported inflated.
The weight in transport conditions for a trailer includes:
Unladen weight of the boat:
Weight of the engine(s):
Consumable quantity:
Options:
Safety equipment:
Unladen weight of the boat:
Weight of the engine(s):
Consumable quantity:
Options:
Safety equipment:
Unladen weight of the boat:
Weight of the engine(s):
Consumable quantity:
Options:
Safety equipment:
STOWING ON A TRAILER OR CRADLE:
Use the bow ring and the rear chain plates on the outside of the transom.
RECOMMENDATION
DEFLATED!
TO AVOID DAMAGING THE CONE ENDS, WE RECOMMEND YOU USE THE
TRANSPORT STRAP KIT (OPTIONAL EQUIPMENT).
DESCRIPTION - Handling
OPEN 5.5
581 kg Tolerance +/- 5 %
225 kg
75 kg Fuel tank
159 kg Model including all options
21 kg Fittings
:
1061 kg
OPEN 6.5
760 kg Tolerance +/- 5 %
282 kg
146 kg Fuel tank
159 kg Model including all options
21 kg Fittings
:
1368 kg
OPEN 7
910 kg Tolerance +/- 5 %
307 kg
207 kg Fuel tank and freshwater tank
306 kg Model including all options
130 kg Fittings
:
1860 kg
IF TRANSPORTED WITH BUOYANCY TUBE
:
