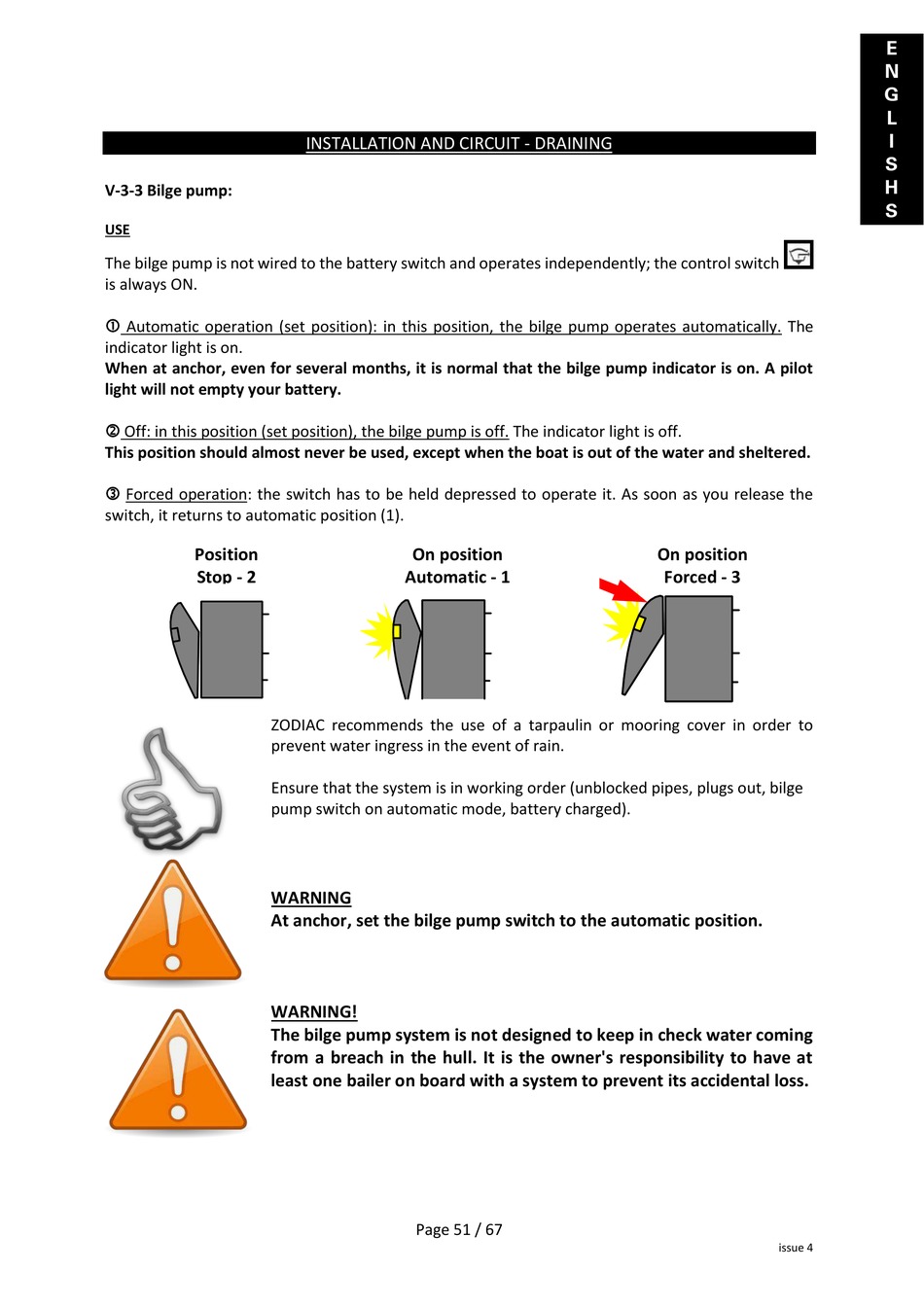

Bilge Pump - Zodiac OPEN Bedienungsanleitung

V-3-3 Bilge pump:
USE
The bilge pump is not wired to the battery switch and operates independently; the control switch
is always ON.
 Automatic operation (set position): in this position, the bilge pump operates automatically. The
indicator light is on.
When at anchor, even for several months, it is normal that the bilge pump indicator is on. A pilot
light will not empty your battery.
 Off: in this position (set position), the bilge pump is off. The indicator light is off.
This position should almost never be used, except when the boat is out of the water and sheltered.
 Forced operation: the switch has to be held depressed to operate it. As soon as you release the
switch, it returns to automatic position (1).
Position
Stop - 2
ZODIAC recommends the use of a tarpaulin or mooring cover in order to
prevent water ingress in the event of rain.
Ensure that the system is in working order (unblocked pipes, plugs out, bilge
pump switch on automatic mode, battery charged).
WARNING
At anchor, set the bilge pump switch to the automatic position.
WARNING!
The bilge pump system is not designed to keep in check water coming
from a breach in the hull. It is the owner's responsibility to have at
least one bailer on board with a system to prevent its accidental loss.
INSTALLATION AND CIRCUIT - DRAINING
On position
Automatic - 1
Page 51 / 67
On position
Forced - 3
