V -9-MECHANICAL RIGGING

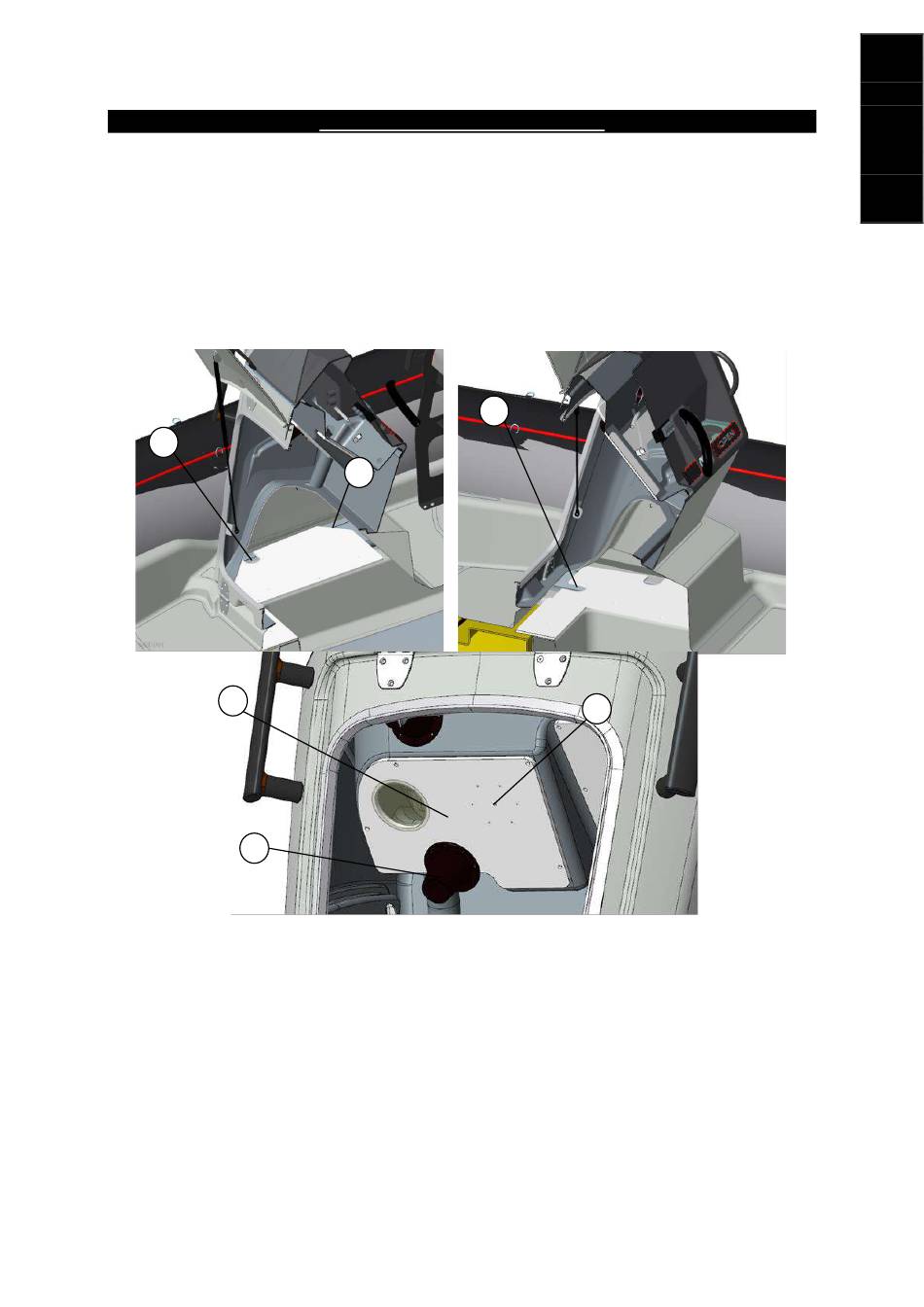

When using mechanical type rigging, be sure to use opening (1) for the steering control and opening
(2) for the throttle control. These openings allow the manufacturer's minimum bending radii to be
respected.
For your information, location (3) allows the upward passage of the cable bundles to the head of the
console.
1
4
5
Before installing the throttle cables, take the plate (4) and enlarge the hole (6) to Ø70 mm to allow
the cables to pass through.
INSTALLATION AND CIRCUIT – Rigging
