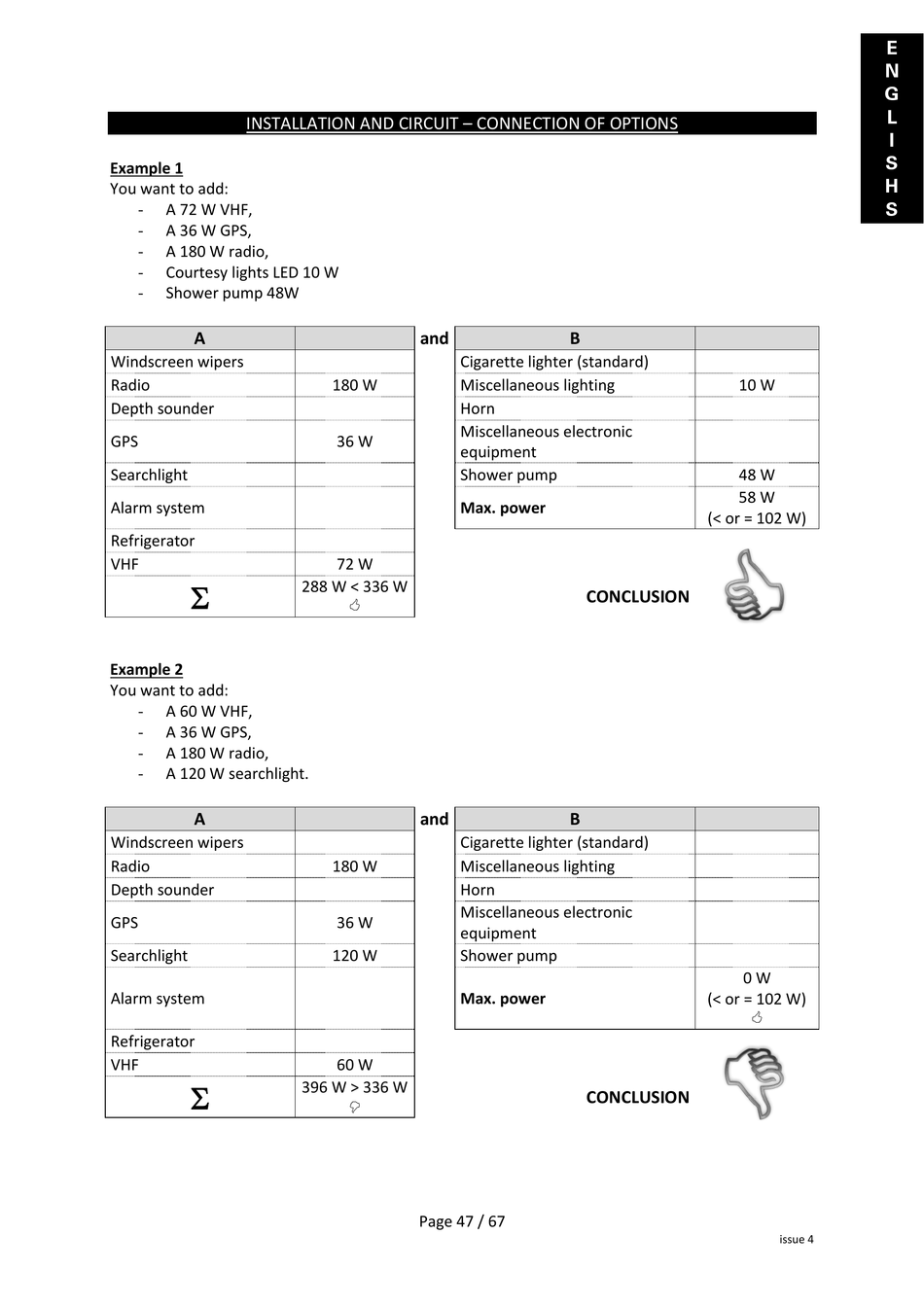

INSTALLATION AND CIRCUIT – CONNECTION OF OPTIONS
Example 1
You want to add:
A 72 W VHF,
-
A 36 W GPS,
-
A 180 W radio,
-
Courtesy lights LED 10 W
-
Shower pump 48W
-
A
Windscreen wipers
Radio
Depth sounder
GPS
Searchlight
Alarm system
Refrigerator
VHF

Example 2
You want to add:
A 60 W VHF,
-
A 36 W GPS,
-
A 180 W radio,
-
A 120 W searchlight.
-
A
Windscreen wipers
Radio
Depth sounder
GPS
Searchlight
Alarm system
Refrigerator
VHF

and
Cigarette lighter (standard)
180 W Miscellaneous lighting
Horn
Miscellaneous electronic
36 W
equipment
Shower pump
Max. power
72 W
288 W < 336 W

and
Cigarette lighter (standard)
180 W Miscellaneous lighting
Horn
Miscellaneous electronic
36 W
equipment
120 W Shower pump
Max. power
60 W
396 W > 336 W

