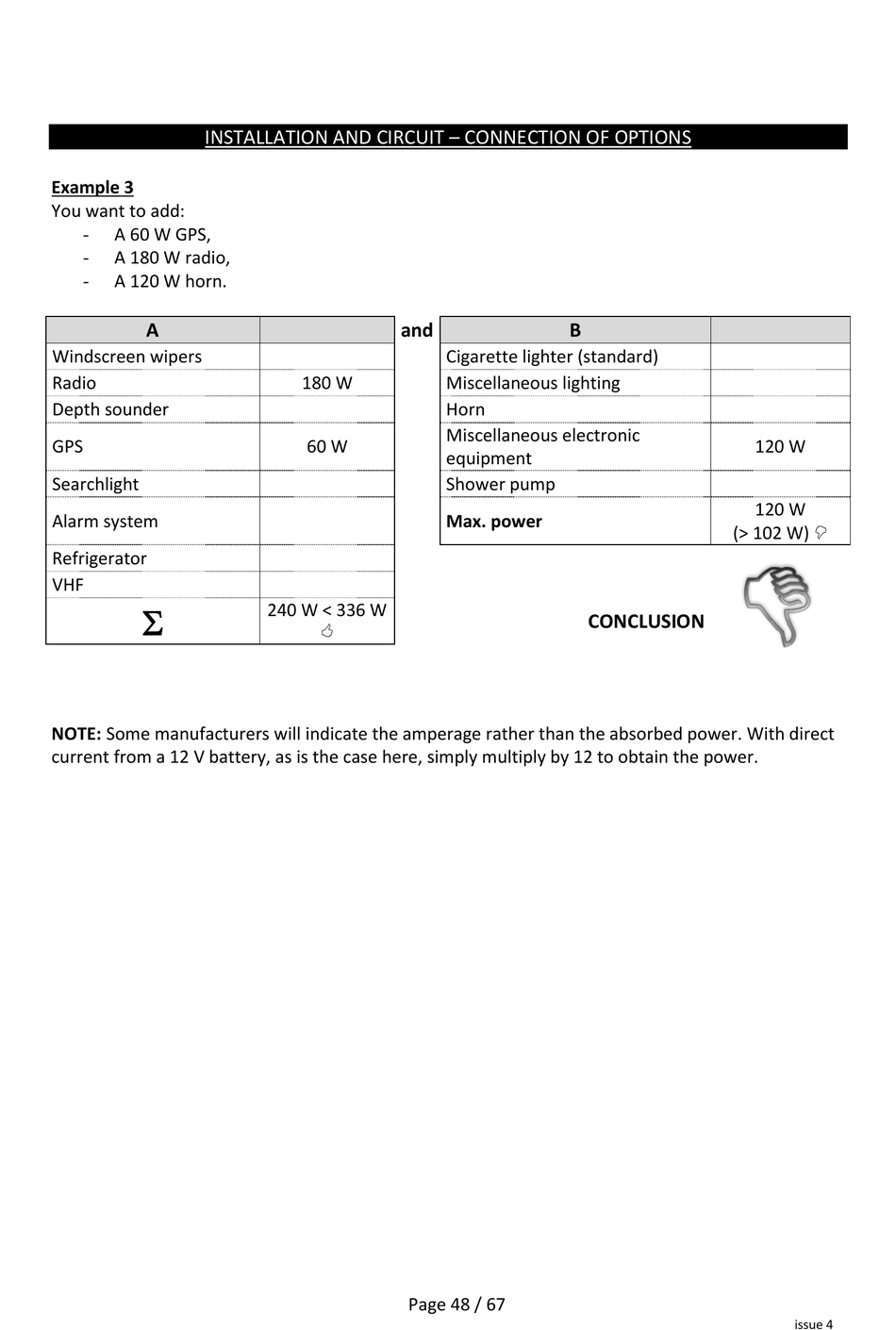

INSTALLATION AND CIRCUIT – CONNECTION OF OPTIONS
Example 3
You want to add:
A 60 W GPS,
-
A 180 W radio,
-
A 120 W horn.
-
A
Windscreen wipers
Radio
Depth sounder
GPS
Searchlight
Alarm system
Refrigerator
VHF

NOTE: Some manufacturers will indicate the amperage rather than the absorbed power. With direct
current from a 12 V battery, as is the case here, simply multiply by 12 to obtain the power.
and
180 W
60 W
240 W < 336 W

Page 48 / 67
B
Cigarette lighter (standard)
Miscellaneous lighting
Horn
Miscellaneous electronic
equipment
Shower pump
Max. power
CONCLUSION
120 W
120 W

(> 102 W)
