T_SEN1~2: Thermal Sensor Connector

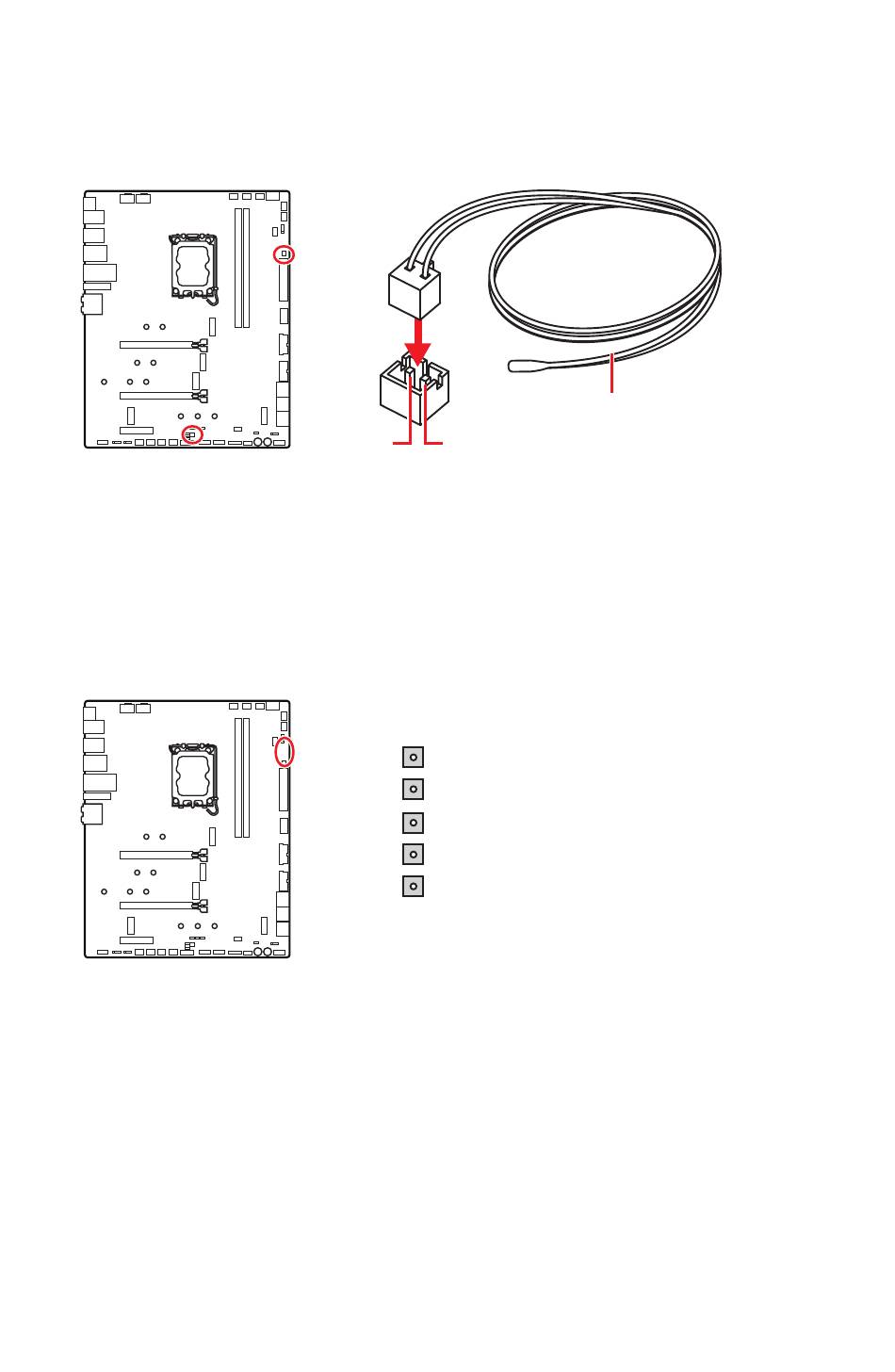

This connector allows you to connect the thermistor cable and use it to monitor the
temperature of the detection point.

V-Check Points Lite

These voltage checkpoints are used to measure the current system voltages. A
multimeter (not included) will be required to check voltages. To measure voltage,
place test leads on the GND (screw mounting hole) and a specific V-Check Point.
Please refer to the manual of your multimeter for more information.
38
Overview of Components
Sense
GND
GND
CPU_AUX
CPUVDD2
VCC
SOCKET
Thermistor cable
(optional)
