3. Connect all PCIe power connectors of the graphics cards.
4. Reconnect the power cord, power up the computer and install the drivers and
software included in your graphics card package.
5. Right-click the Windows desktop and select NVIDIA Control Panel from the menu,
click on Configure SLI, Surround, PhysX in the left task pane and select Maximize
3D performance in the SLI configuration menu, and then click Apply.

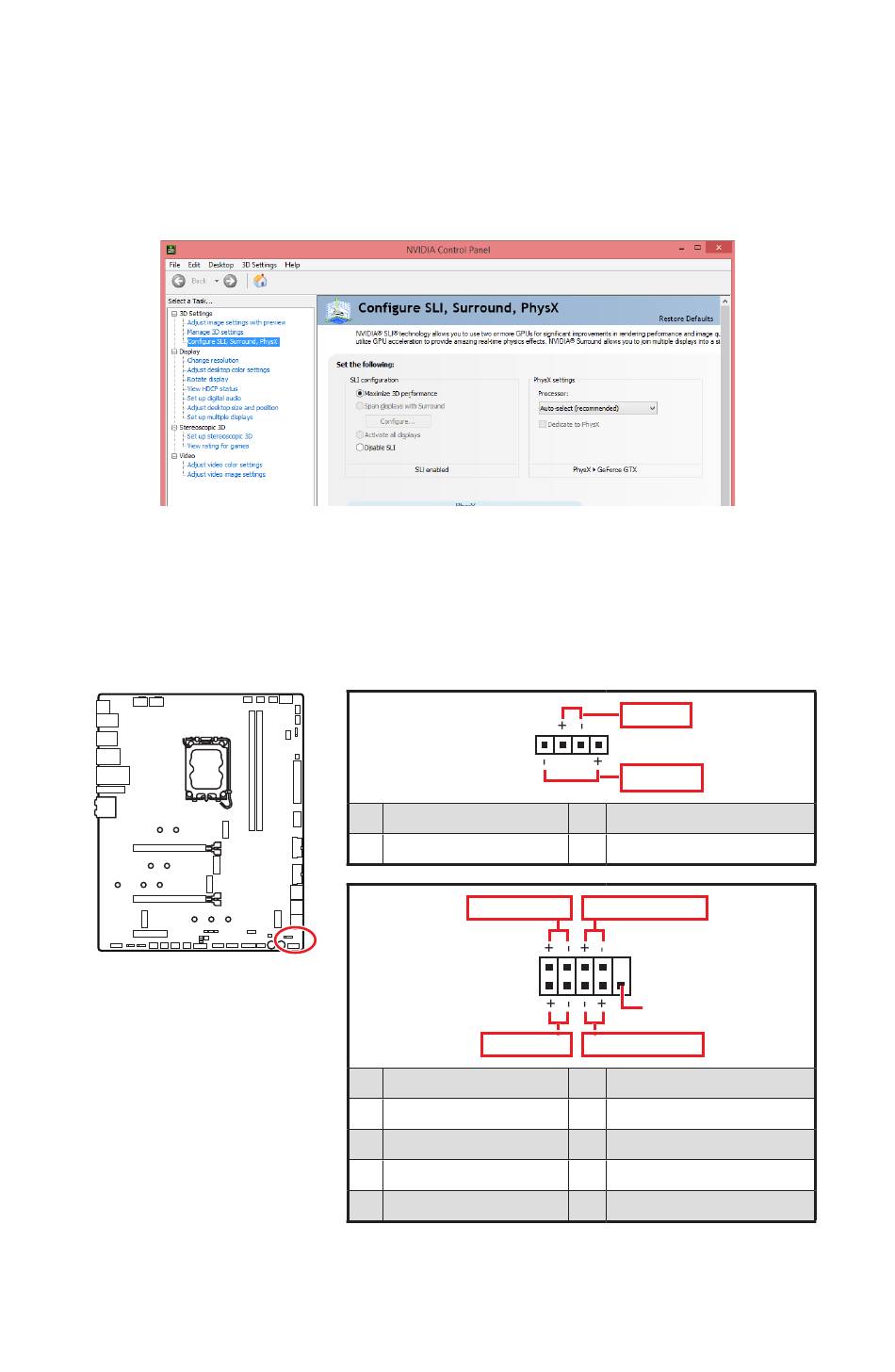

JFP1, JFP2: Front Panel Connectors

These connectors connect to the switches and LEDs on the front panel.
⚠
Important
A front panel extension cable
is included in the package,
which is convenient for you
to connect the chassis to the
JFP1.
1
JFP2
1 Speaker -
3 Buzzer -
Power LED
2
JFP1
1
HDD LED
1 HDD LED +
3 HDD LED -
5 Reset Switch
7 Reset Switch
9 Reserved
Buzzer
Speaker
2 Buzzer +
4 Speaker +
Power Switch
10
9
Reserved
Reset Switch
2 Power LED +
4 Power LED -
6 Power Switch
8 Power Switch
10 No Pin
