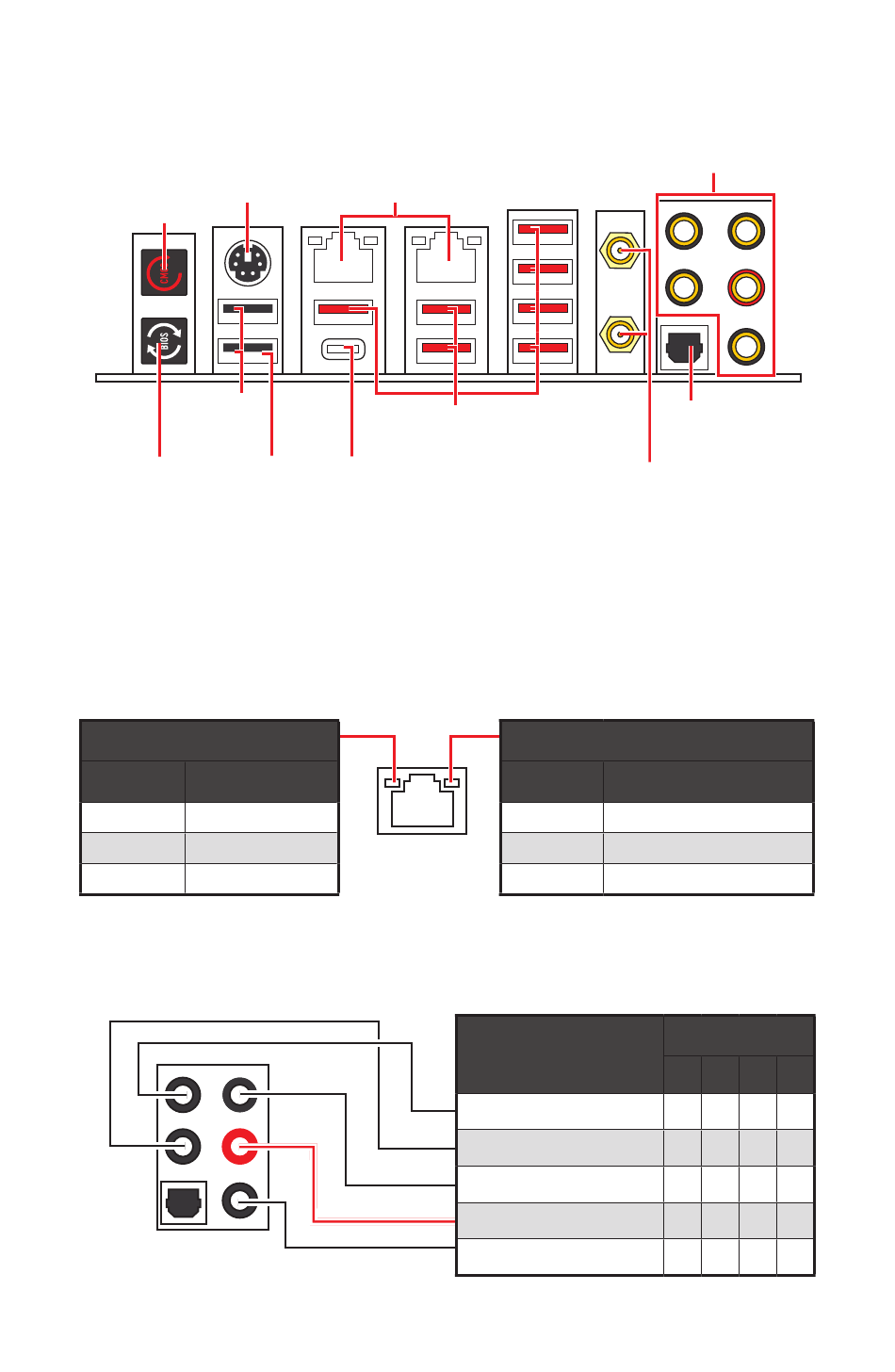

Rear I/O Panel

Clear CMOS
PS/2
button
USB 2.0
Type A
Flash BIOS
Flash BIOS
Button port
∙ Flash BIOS Port/ Button - Please refer to page 54 for Updating BIOS with Flash
BIOS Button.

LAN Port LED Status Table

Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity

Audio Ports Configuration

2.5Gbps LAN
USB 3.2 Gen 2
10Gbps Type A
USB 3.2 Gen 2x2
(20Gbps) Type-C
Audio Ports
Center/ Sub-woofer Out
Rear Speaker Out
Line-In/ Side Speaker Out
Line-Out/ Front Speaker Out
Mic In
(●: connected, Blank: empty)
Audio Ports
Optical
S/PDIF-Out
Wi-Fi Antenna
connectors
Speed LED
Status Description
Off 10 Mbps connection
Green 100/1000 Mbps connection
Orange 2.5 Gbps connection
2
●
Channel
4 6 8
● ●
● ● ●
●
● ● ●
