M2_1~5: M.2 Slots (Key M)

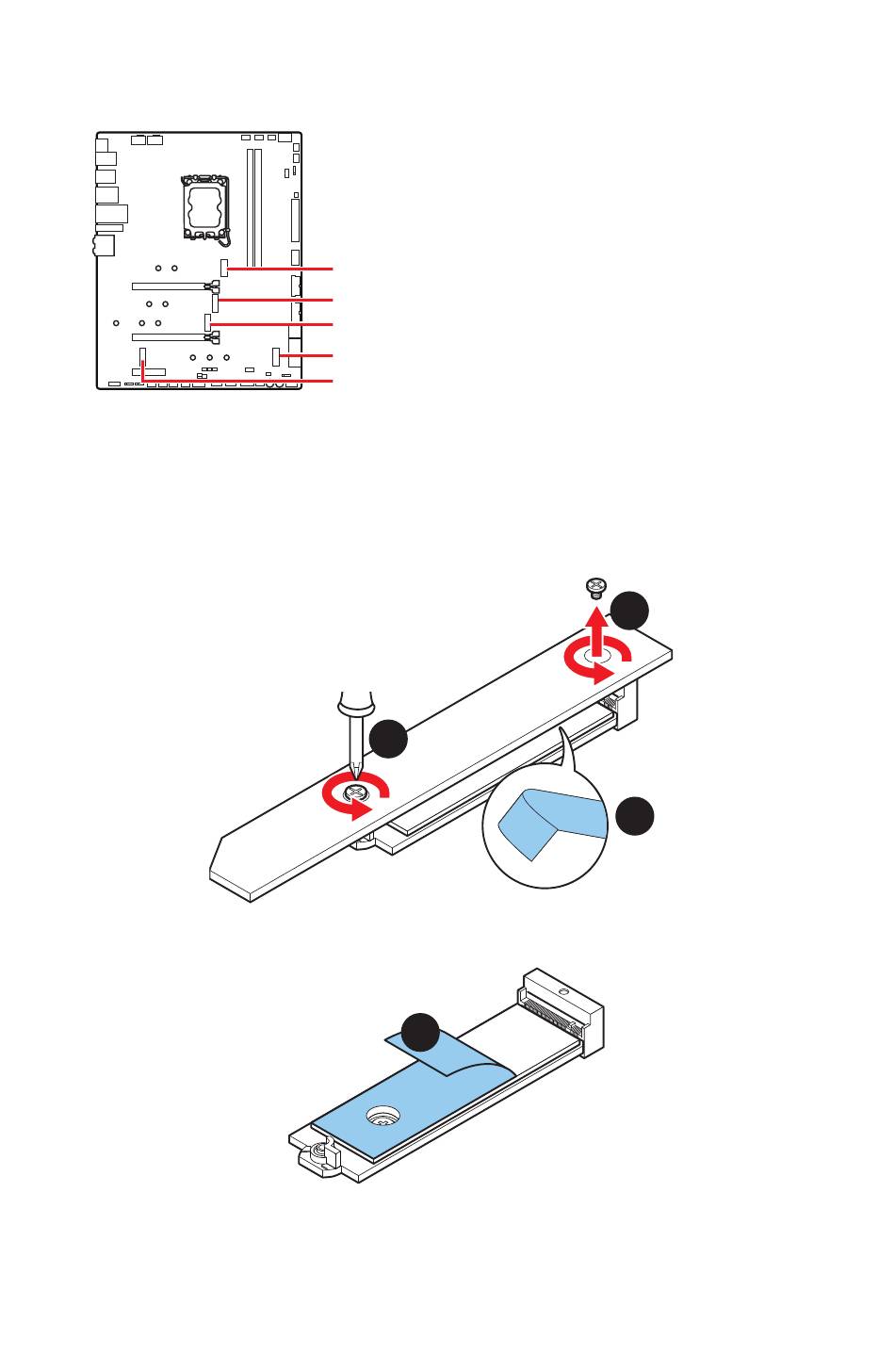

M2_1, M2_2 slots Installation
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
3. Remove the protective films from the M.2 thermal pads on the M.2 plate.
22
Overview of Components
⚠
Important
∙ Intel® RST only supports PCIe M.2 SSD with
UEFI ROM.
Intel® Optane™ Memory Ready for M2_2~5
∙
slots.
M2_1
M2_2
M2_3
M2_5
M2_4
1
3
1
2
