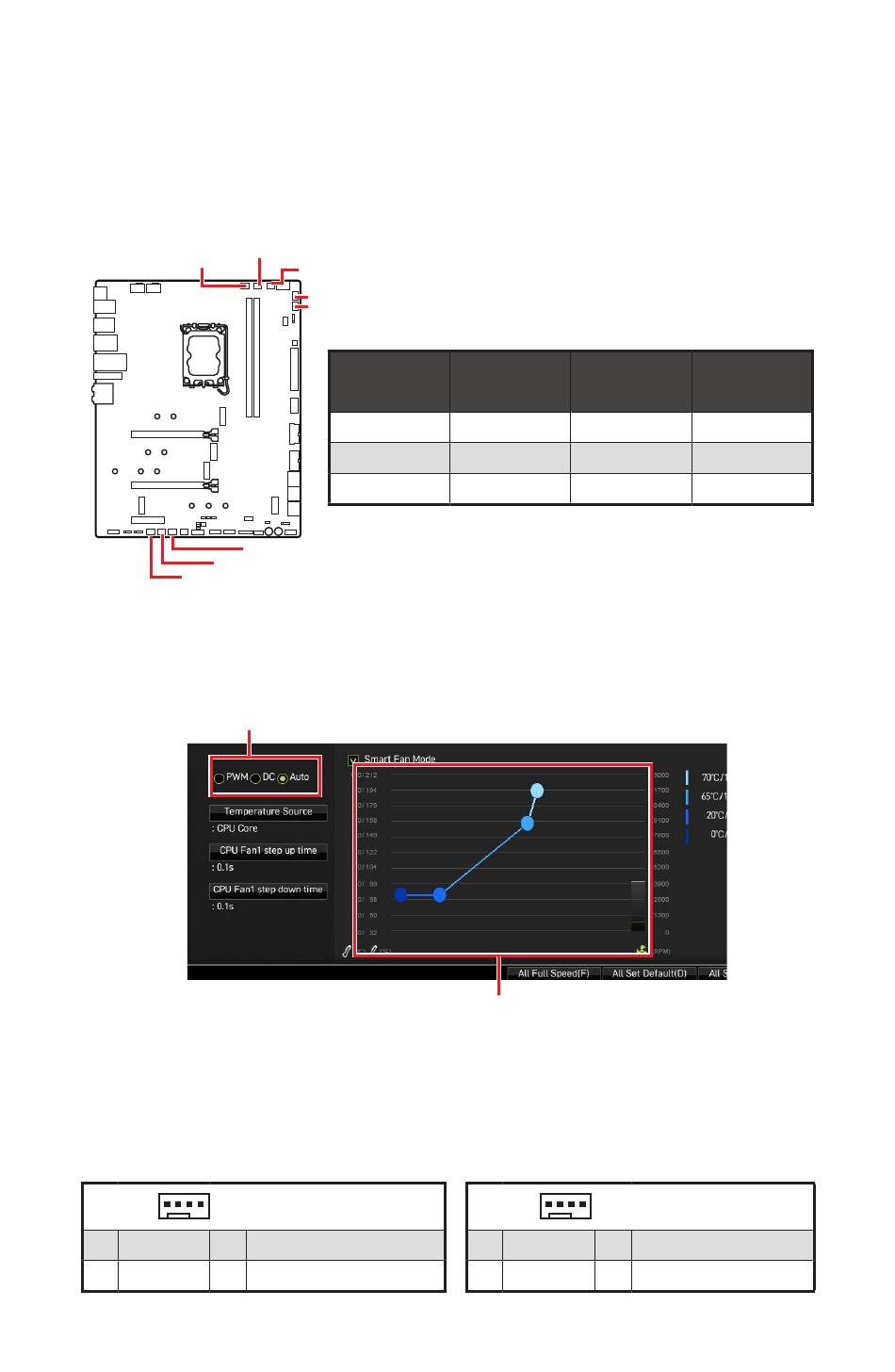

CPU_FAN1, PUMP_FAN1, SYS_FAN1~6: Fan Connectors

Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode.
PWM Mode fan connectors provide constant 12V output and adjust fan speed with
speed control signal. DC Mode fan connectors control fan speed by changing voltage.
The auto mode fan connectors can automatically detect PWM and DC mode. However,
you can follow the instruction below to adjust the fan connector to PWM or DC Mode
manually.
PUMP_FAN1
CPU_FAN1
SYS_FAN4
SYS_FAN3
SYS_FAN2
Switching fan mode and adjusting fan speed
You can switch between PWM mode and DC mode and adjust fan speed in BIOS >
HARDWARE MONITOR.
Select PWM mode or DC mode
⚠
Important
Make sure fans are working properly after switching the PWM/ DC mode.
Pin definition of fan connectors
1
PWM Mode pin definition
1 Ground 2
3 Sense 4
SYS_FAN1
SYS_FAN6
SYS_FAN5
Connector
CPU_FAN1
PUMP_FAN1
SYS_FAN1~6
There are gradient points of the fan speed that allow you to adjust
fan speed in relation to CPU temperature.
+12V
Speed Control Signal
Default fan Max.
mode current
Auto mode 2A
PWM mode 3A
DC mode 2A
1
DC Mode pin definition
1 Ground 2
3 Sense 4
