M2_3 slot Installation

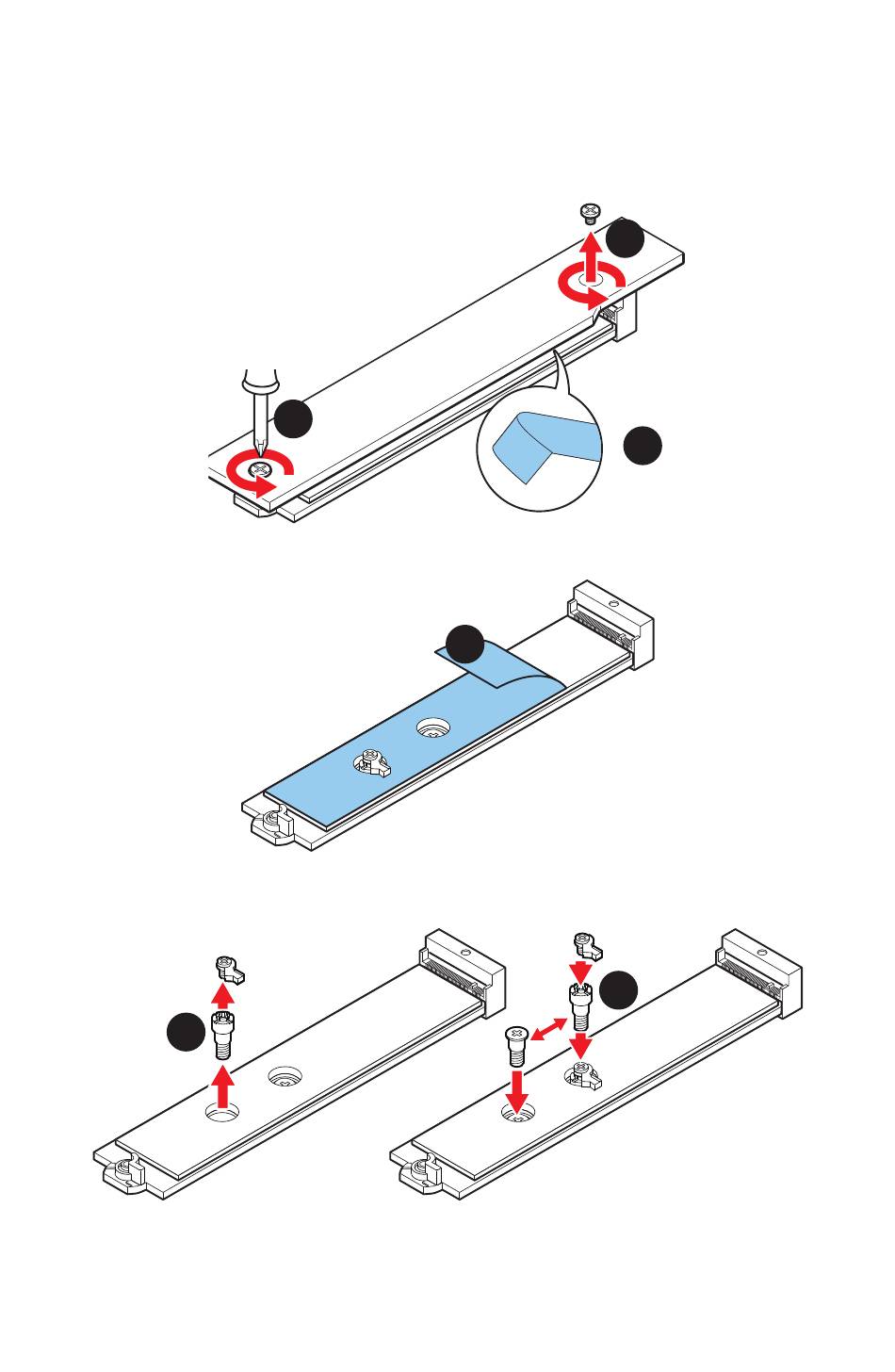

1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
3. Remove the protective films from the M.2 thermal pads on the M.2 plate.
4. Remove or exchange the screws according to your SSD length. Skip this step, if
you install 2280 SSD.
4
5. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
6. Rotate the EZ M.2 Clip to fix the M.2 SSD.
24
Overview of Components
1
22110 SSD
1
3
4
2
2260 SSD
