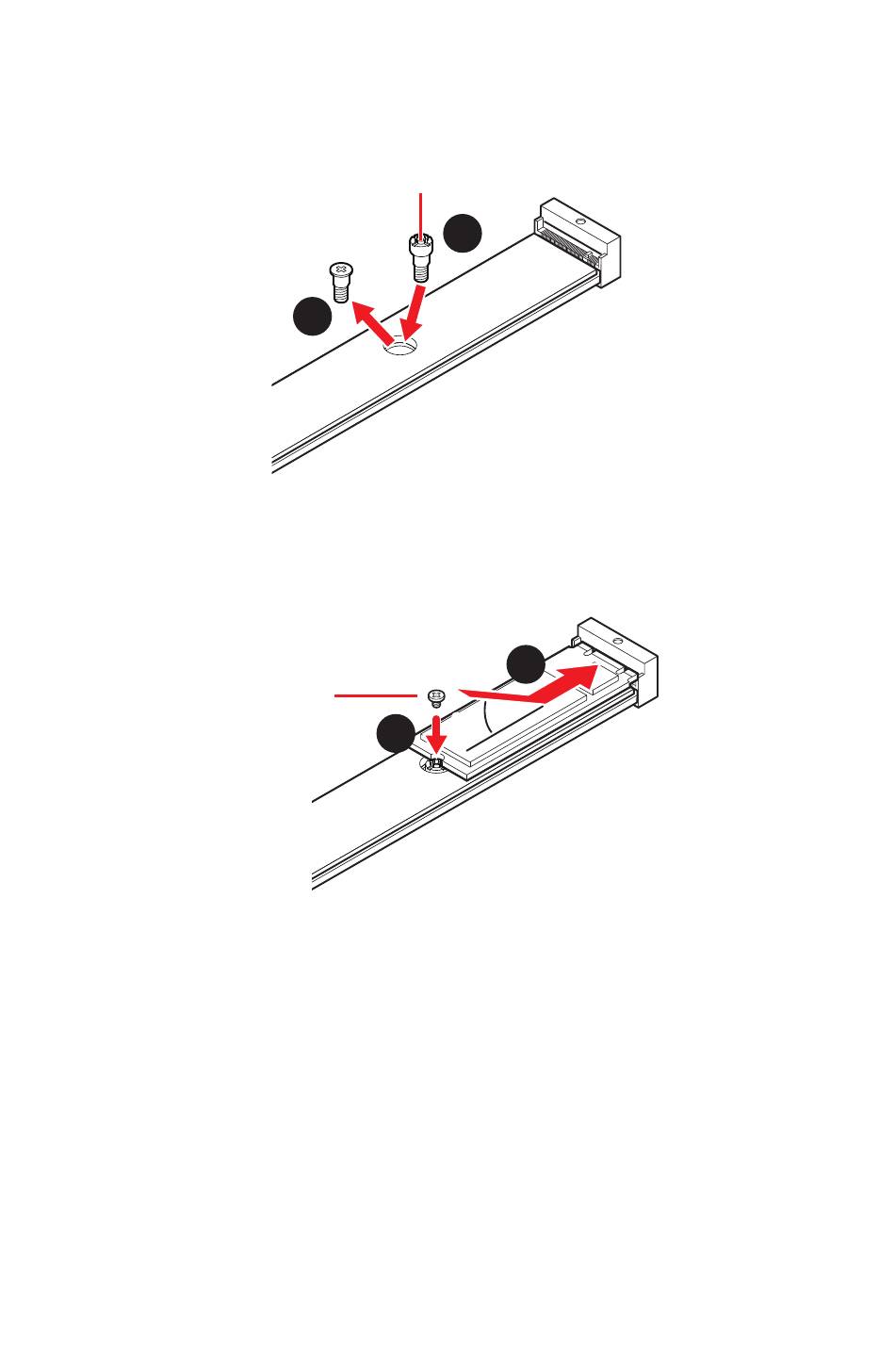

4. If there is a screw installed on the M.2 plate, remove it first; otherwise, please
skip this step.
5. Secure the supplied M.2 standoff according to your M.2 SSD length.
6. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
7. Secure the M.2 SSD in place with the supplied M.2 8.5H screw.
8.5H screw
Standoff
5
4
7
30º 30º
6
Overview of Components
27
