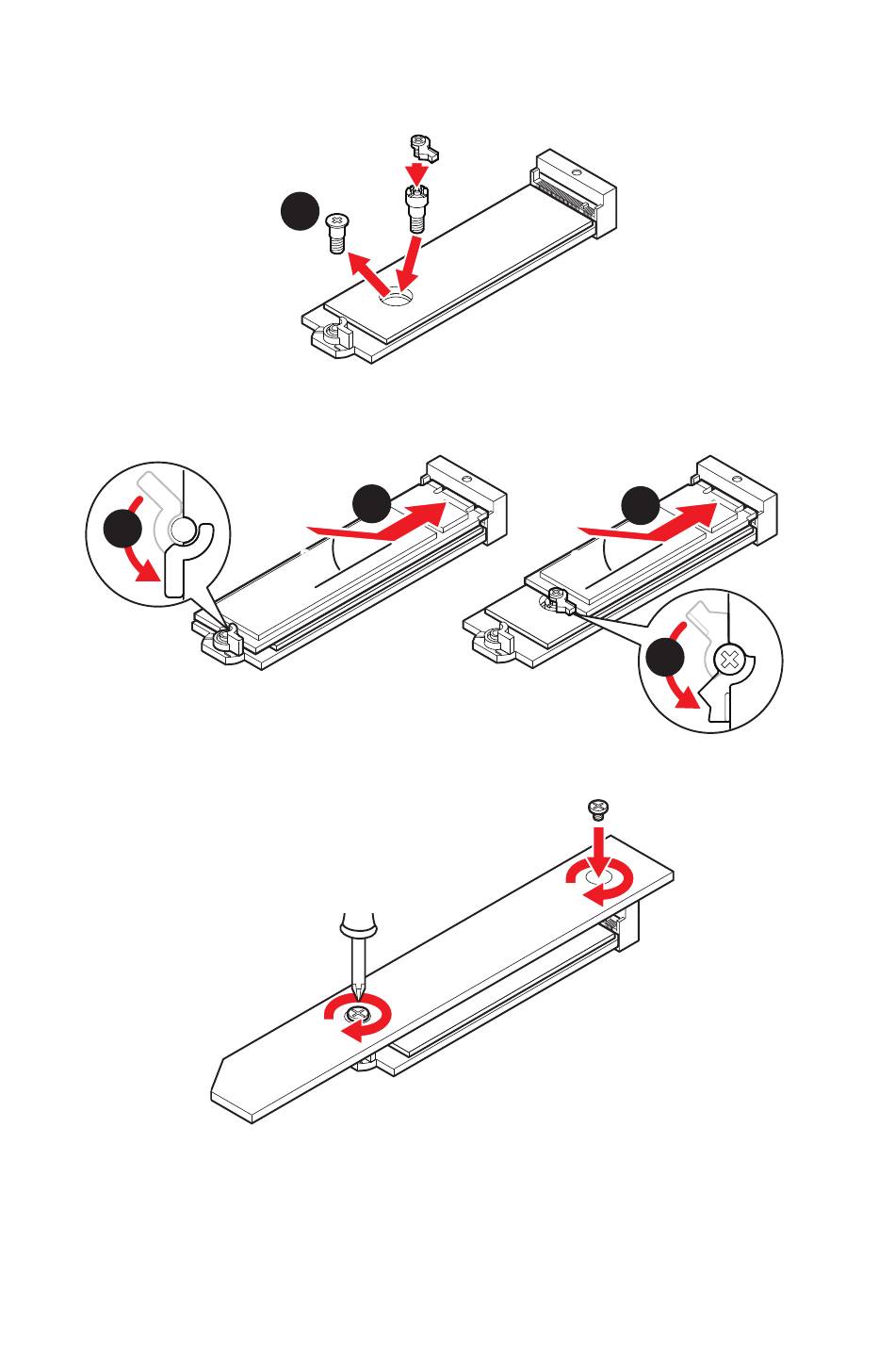

4. If you install 2260 SSD, remove the screw from the M.2 plate and then install
supplied EZ M.2 Clip kit on the M.2 plate. Skip this step, if you install 2280 SSD.
5. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
6. Rotate the EZ M.2 Clip to fix the M.2 SSD.
6
7. Put the M.2 SHIELD FROZR heatsink back in place and secure it.
4
5
30º 30º
2280 SSD
2260 SSD
5
30º 30º
6
