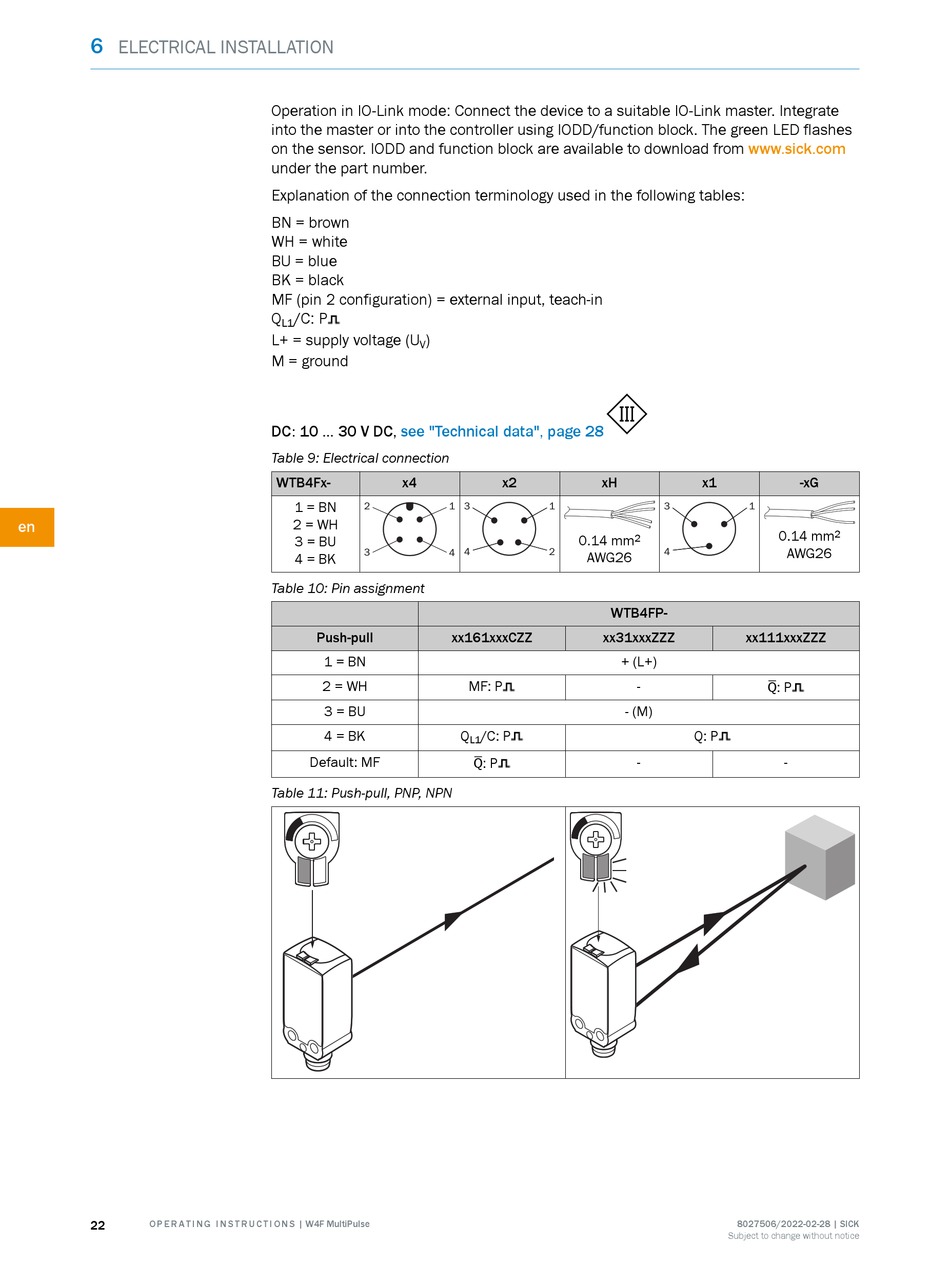

ELECTRICAL INSTALLATION
en
22 O P E R A T I N G I N S T R U C T I O N S | W4F MultiPulse
Operation in IO-Link mode: Connect the device to a suitable IO-Link master. Integrate
into the master or into the controller using IODD/function block. The green LED flashes
on the sensor. IODD and function block are available to download from
under the part number.
Explanation of the connection terminology used in the following tables:
BN = brown
WH = white
BU = blue
BK = black
MF (pin 2 configuration) = external input, teach-in
Q /C: P
L1
L+ = supply voltage (U )
V
M = ground
DC: 10 ... 30 V DC, see "Technical data", page 28
Table 9: Electrical connection
WTB4Fx- x4
1 = BN
2 1
2 = WH
3 = BU
3
4
4 = BK
Table 10: Pin assignment
Push-pull
1 = BN
2 = WH
3 = BU
4 = BK
Default: MF
Table 11: Push-pull, PNP, NPN
x2 xH
3 1
0.14 mm
4 2
AWG26
WTB4FP-
xx161xxxCZZ xx31xxxZZZ
+ (L+)
MF: P
- (M)
Q /C: P
L1
Q: P
www.sick.com
x1 -xG
3 1
0.14 mm
2
AWG26
4
xx111xxxZZZ
-
Q: P
Q: P
- -
