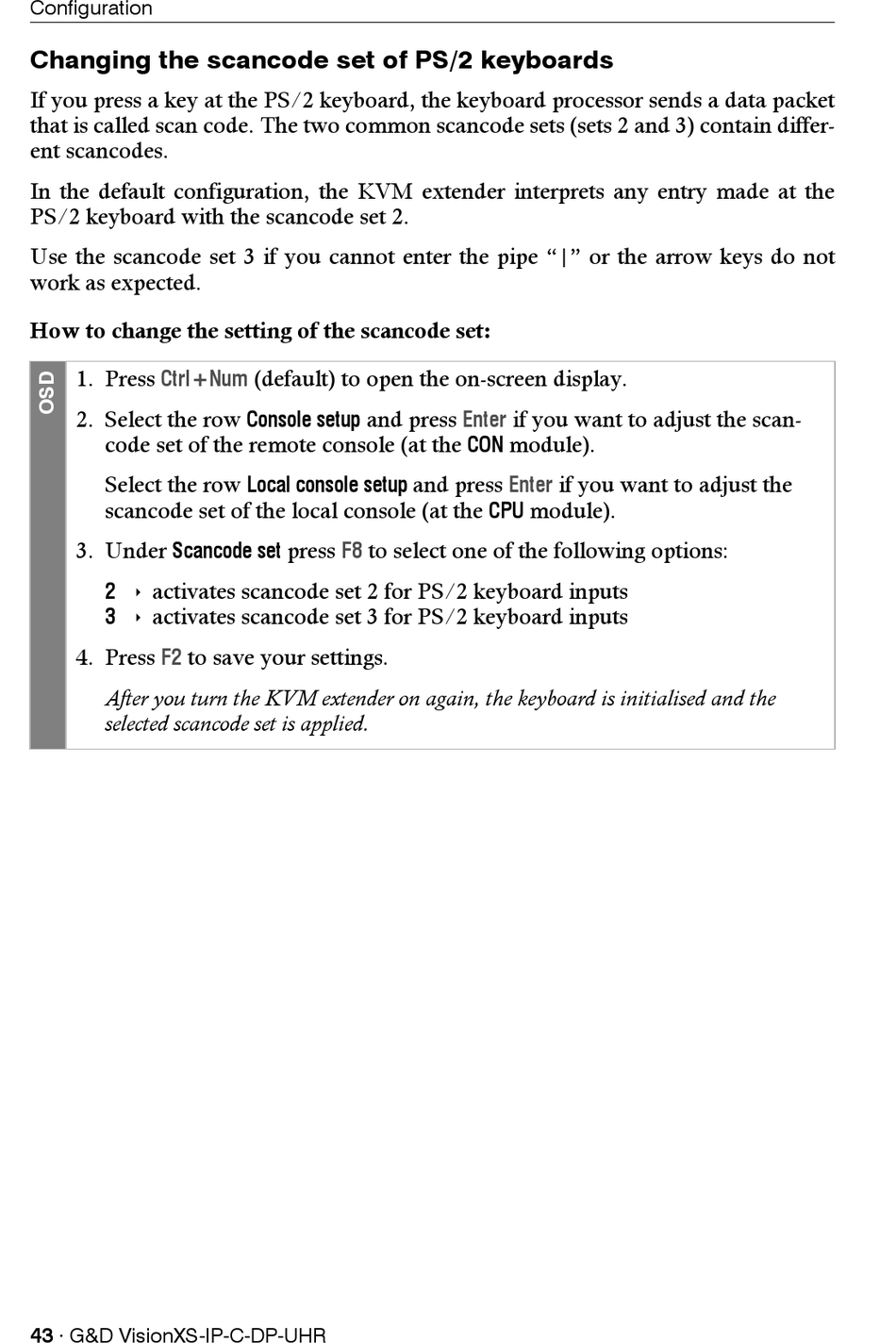

Changing the scancode set of PS/2 keyboards

If you press a key at the PS/2 keyboard, the keyboard processor sends a data packet
that is called scan code. The two common scancode sets (sets 2 and 3) contain differ-
ent scancodes.
In the default configuration, the KVM extender interprets any entry made at the
PS/2 keyboard with the scancode set 2.
Use the scancode set 3 if you cannot enter the pipe "|" or the arrow keys do not
work as expected.
How to change the setting of the scancode set:
1. Press Ctrl+Num
2. Select the row
code set of the remote console (at the
Select the row
scancode set of the local console (at the
3. Under Scancode set
2  activates scancode set 2 for PS/2 keyboard inputs
3  activates scancode set 3 for PS/2 keyboard inputs
4. Press to save your settings.
F2
After you turn the KVM extender on again, the keyboard is initialised and the
selected scancode set is applied.
