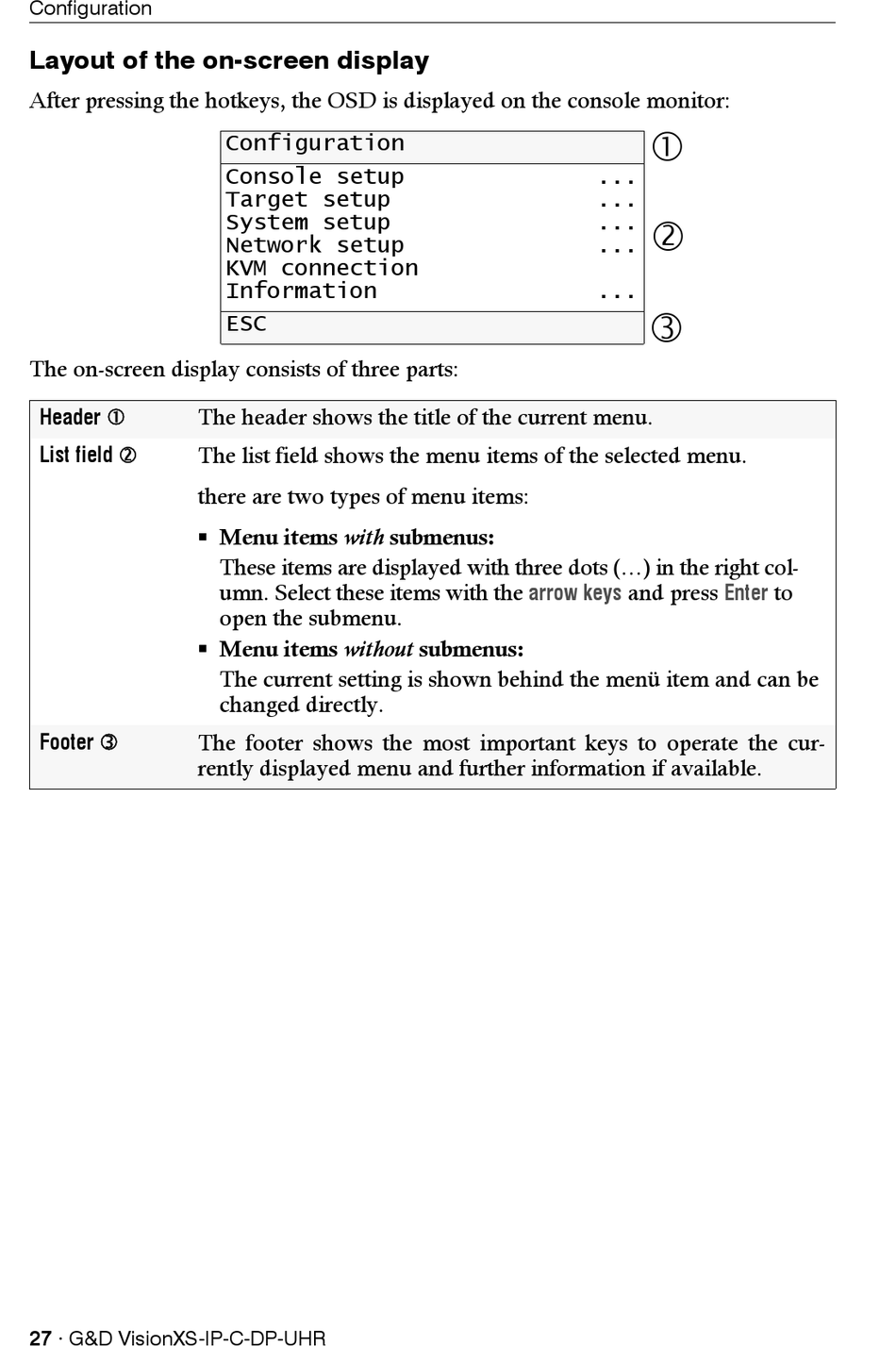

Layout of the on-screen display

After pressing the hotkeys, the OSD is displayed on the console monitor:
The on-screen display consists of three parts:
Header  The header shows the title of the current menu.
List field 
The list field shows the menu items of the selected menu.
there are two types of menu items:
 Menu items with submenus:
 Menu items without submenus:
Footer 
The footer shows the most important keys to operate the cur-
rently displayed menu and further information if available.
27 · G&D VisionXS-IP-C-DP-UHR
Configuration
Console setup
Target setup
System setup
Network setup
KVM connection
Information
ESC
These items are displayed with three dots (...) in the right col-
umn. Select these items with the
open the submenu.
The current setting is shown behind the menü item and can be
changed directly.

...
...
...

...
...

arrow keys and press Enter to
