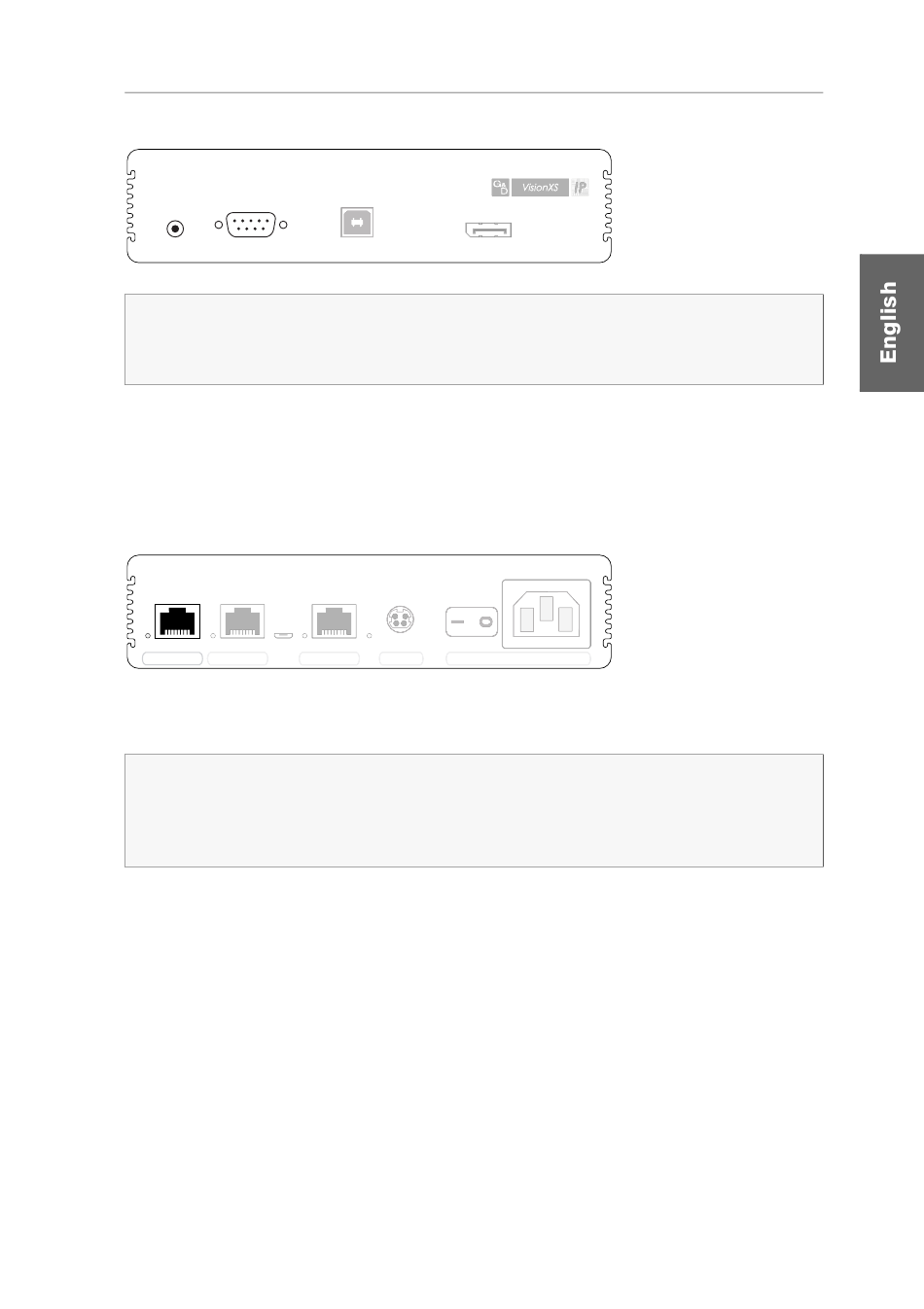

Connecting audio and RS232 interfaces (depending on model)
Line In Serial
NOTE: By default, the KVM switch transfers audio data between switches.
In addition, you can enable the transmission of RS232 data and, alternatively,
disable the transmission of audio data (see (De)Activating signals on page 24).
Line In: Use an Audio-M/M-2 audio connection cable to connect the omputer's Line-
Out interface to this interface
Serial: Use the RS232-M/F-2 cable to connect one of the computer's 9-pin serial inter-
faces to this interface.
Establishing a connection to the Gigabit Ethernet
Transmission 1 Transmission 2 Transmission 2 Service Service
Plug a category 6 (or better) twisted pair cable, which is available as
Transmission 1:
accessory, into this interface. Connect the other end of the Gigabit Ethernet.
NOTE: The activation of the
interface.
Use this interface to establish a redundant transmission connection (link aggregation)
with the Gigabit network.
USB CPU USB CPU DP CPU DP CPU
Network Network Pwr Main Power Pwr Main Power
Transm. Redundancy
Red. Power Red. Power
feature activates the
G&D VisionXS-IP-C-DP-UHR · 8
Installation
Transmission 2
