Configuration

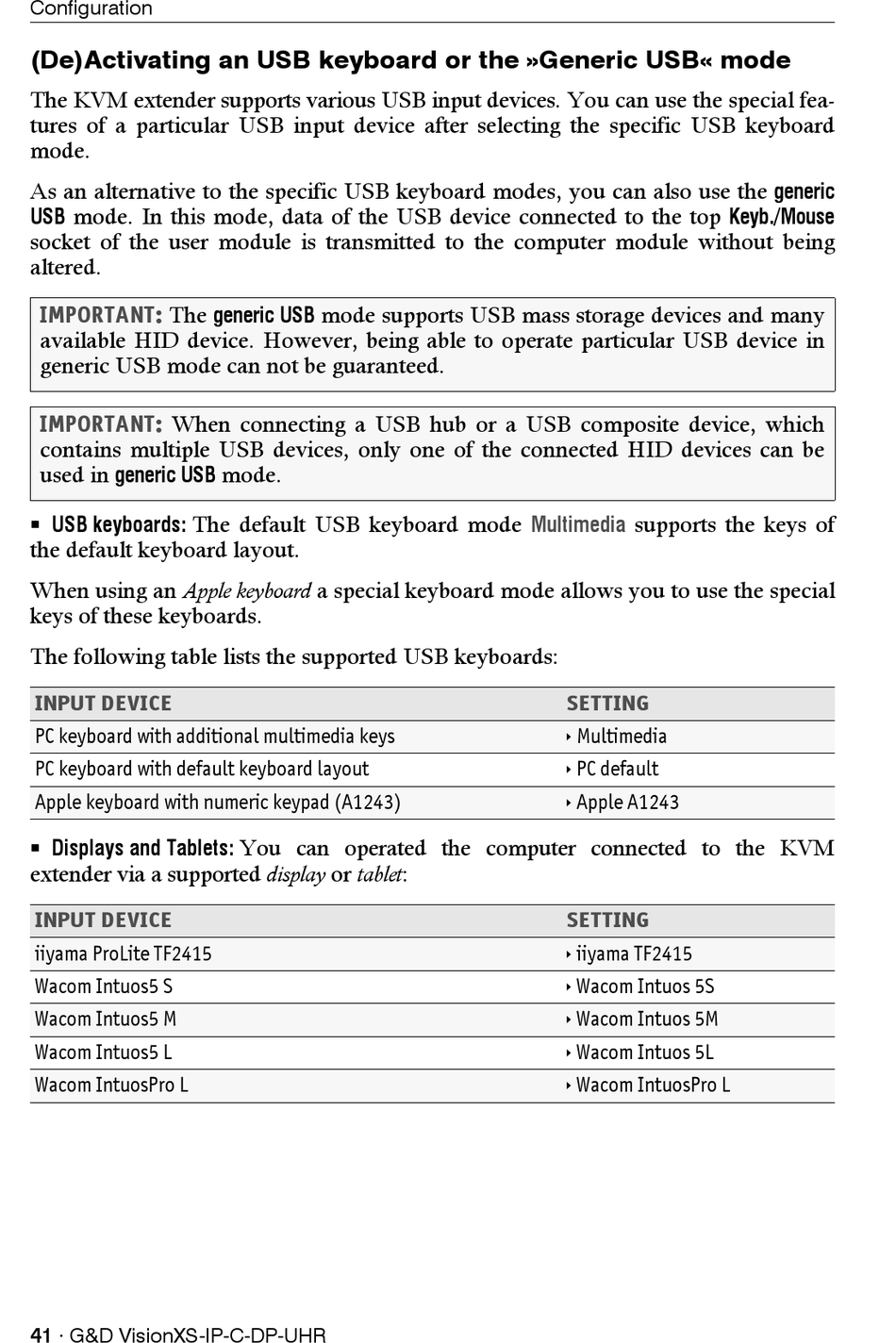

(De)Activating an USB keyboard or the »Generic USB« mode
The KVM extender supports various USB input devices. You can use the special fea-
tures of a particular USB input device after selecting the specific USB keyboard
mode.
As an alternative to the specific USB keyboard modes, you can also use the
USB mode. In this mode, data of the USB device connected to the top
socket of the user module is transmitted to the computer module without being
altered.
IMPORTANT:
The
available HID device. However, being able to operate particular USB device in
generic USB mode can not be guaranteed.
IMPORTANT: When connecting a USB hub or a USB composite device, which
contains multiple USB devices, only one of the connected HID devices can be
used in
generic USB
The default USB keyboard mode
 USB keyboards:
the default keyboard layout.
When using an Apple keyboard a special keyboard mode allows you to use the special
keys of these keyboards.
The following table lists the supported USB keyboards:
INPUT DEVICE
PC keyboard with additional multimedia keys
PC keyboard with default keyboard layout
Apple keyboard with numeric keypad (A1243)
 Displays and Tablets:
extender via a supported display or tablet:
INPUT DEVICE
iiyama ProLite TF2415
Wacom Intuos5 S
Wacom Intuos5 M
Wacom Intuos5 L
Wacom IntuosPro L
41 · G&D VisionXS-IP-C-DP-UHR
generic USB mode supports USB mass storage devices and many
mode.
You can operated the computer connected to the KVM
supports the keys of
Multimedia
SETTING
 Multimedia
 PC default
 Apple A1243
SETTING
 iiyama TF2415
 Wacom Intuos 5S
 Wacom Intuos 5M
 Wacom Intuos 5L
 Wacom IntuosPro L
generic
Keyb./Mouse
