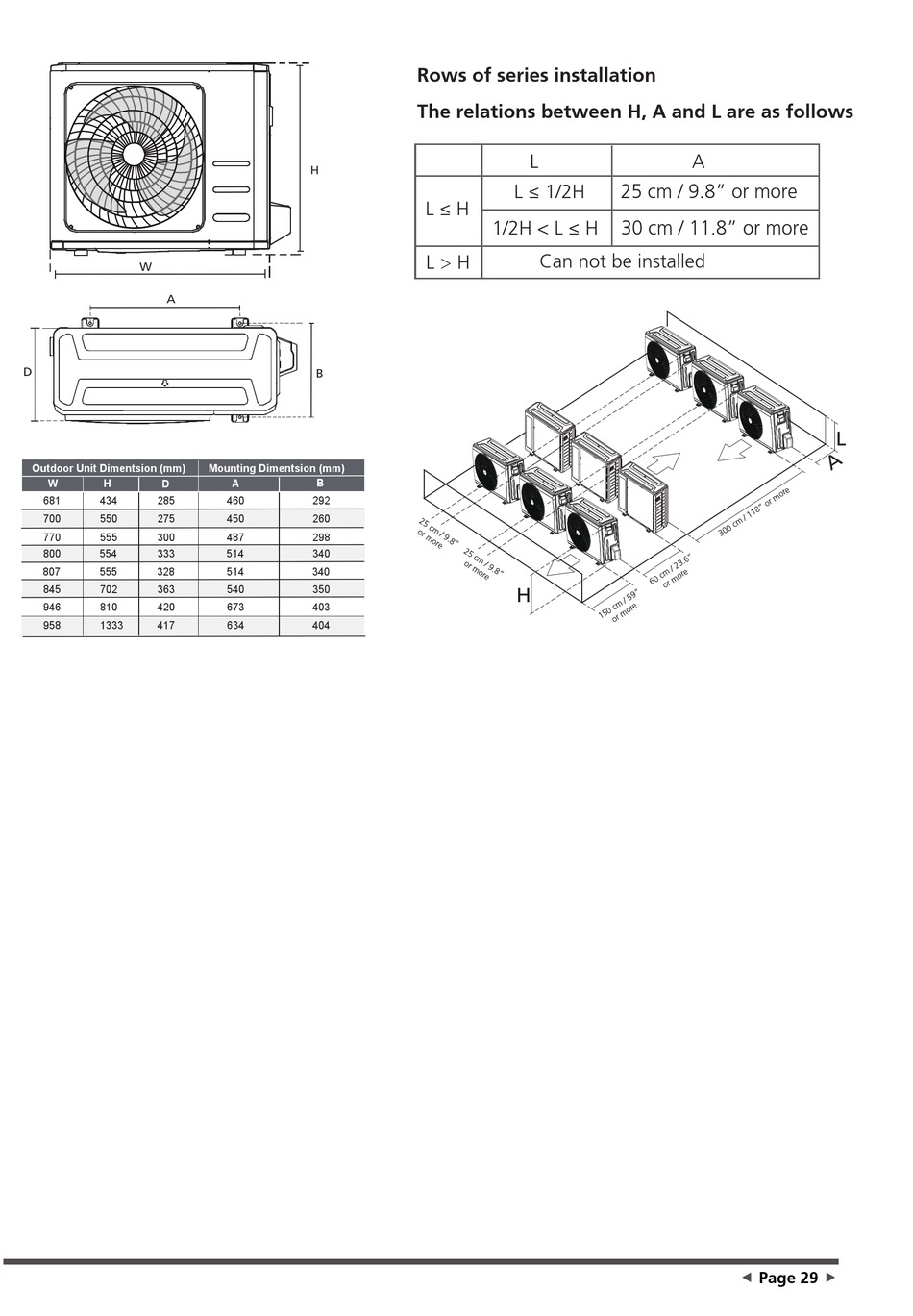

INVENTOR V5MFI-66 Benutzer- & Installationshandbuch Seite 29

W
A
D
Outdoor Unit Dimentsion (mm)
W H
D
681 434 285
700 550 275
770 555 300
800 554 333
807 555 328
845 702 363
946 810 420
958 1333 417
H
B
Mounting Dimentsion (mm)
A B
460 292
450 260
487 298
514 340
514 340
540 350
673 403
634 404
Rows of series installation
The relations between H, A and L are as follows
L
L ≤ 1/2H
L ≤ H
1/2H < L ≤ H
L > H Can not be installed
H
A
25 cm / 9.8" or more
30 cm / 11.8" or more
 Page 29
L

