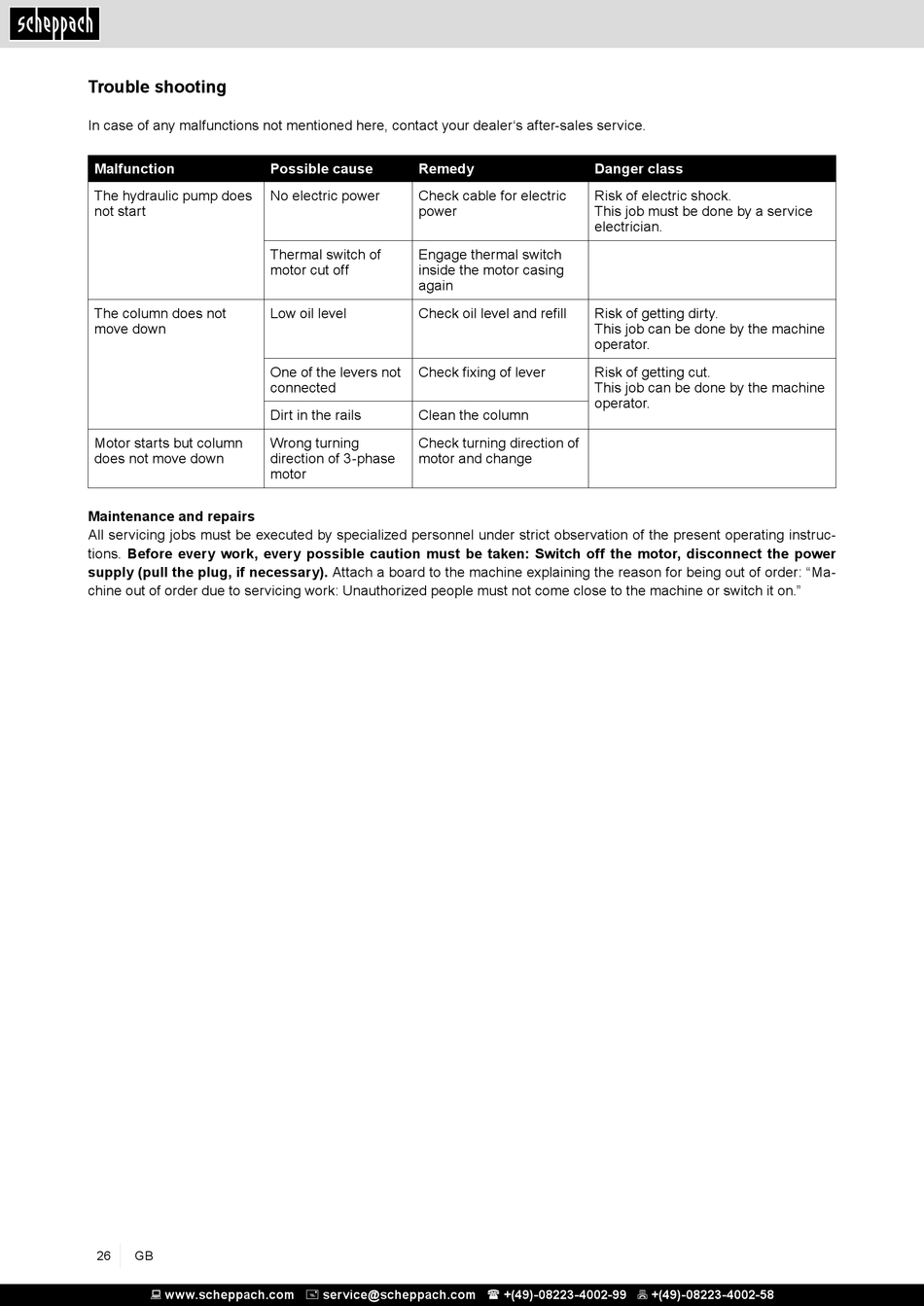

Trouble shooting
In case of any malfunctions not mentioned here, contact your dealer's after-sales service.
Malfunction
The hydraulic pump does
not start
The column does not
move down
Motor starts but column
does not move down
Maintenance and repairs
All servicing jobs must be executed by specialized personnel under strict observation of the present operating instruc-
tions. Before every work, every possible caution must be taken: Switch off the motor, disconnect the power
supply (pull the plug, if necessary). Attach a board to the machine explaining the reason for being out of order: "Ma-
chine out of order due to servicing work: Unauthorized people must not come close to the machine or switch it on."
26 GB
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
Possible cause Remedy
No electric power Check cable for electric
power
Thermal switch of Engage thermal switch
motor cut off inside the motor casing
again
Low oil level Check oil level and refill
One of the levers not Check fixing of lever
connected
Dirt in the rails Clean the column
Wrong turning Check turning direction of
direction of 3-phase motor and change
motor
Danger class
Risk of electric shock.
This job must be done by a service
electrician.
Risk of getting dirty.
This job can be done by the machine
operator.
Risk of getting cut.
This job can be done by the machine
operator.
