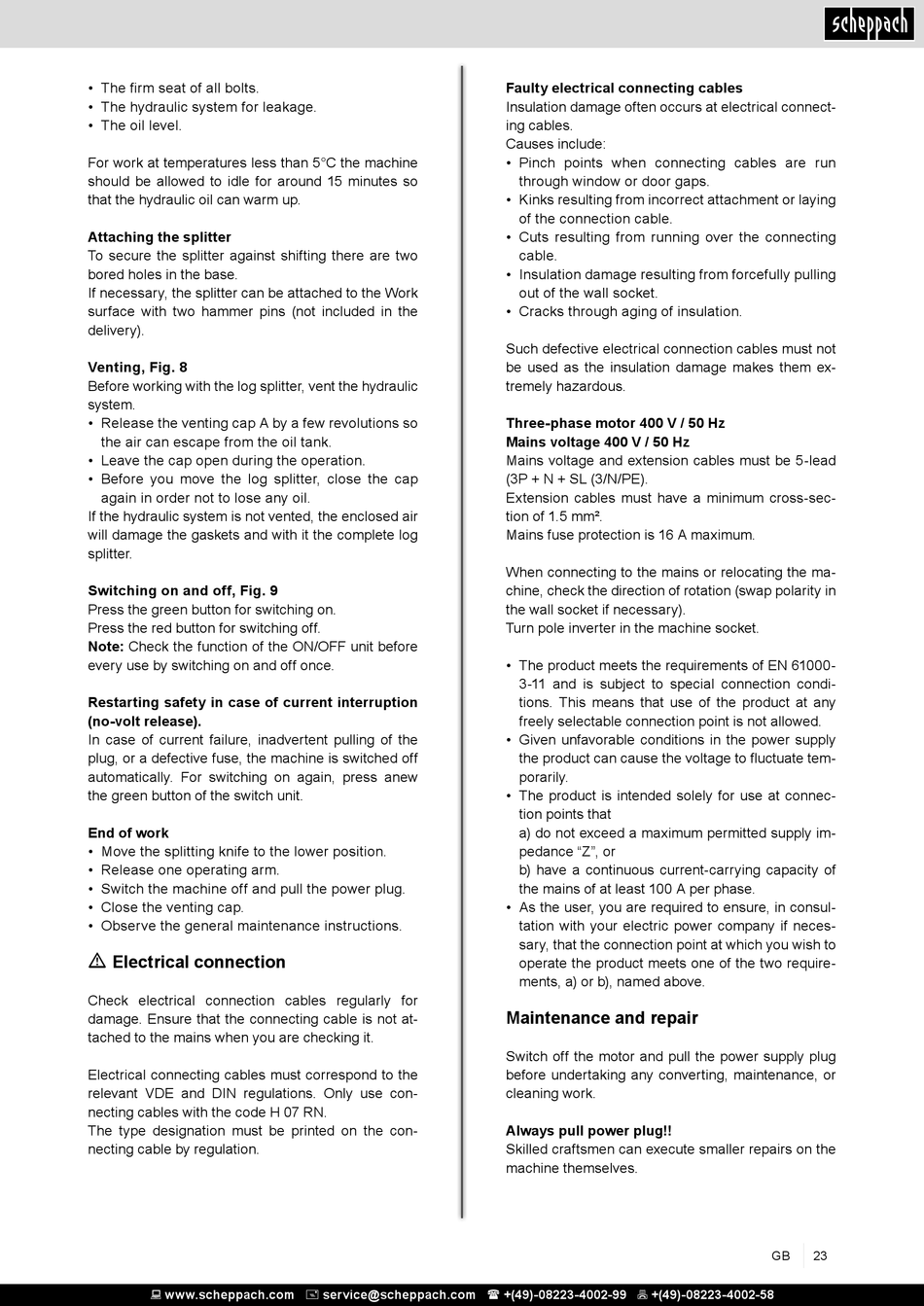

• The firm seat of all bolts.
• The hydraulic system for leakage.
• The oil level.
For work at temperatures less than 5°C the machine
should be allowed to idle for around 15 minutes so
that the hydraulic oil can warm up.
Attaching the splitter
To secure the splitter against shifting there are two
bored holes in the base.
If necessary, the splitter can be attached to the Work
surface with two hammer pins (not included in the
delivery).
Venting, Fig. 8
Before working with the log splitter, vent the hydraulic
system.
• Release the venting cap A by a few revolutions so
the air can escape from the oil tank.
• Leave the cap open during the operation.
• Before you move the log splitter, close the cap
again in order not to lose any oil.
If the hydraulic system is not vented, the enclosed air
will damage the gaskets and with it the complete log
splitter.
Switching on and off, Fig. 9
Press the green button for switching on.
Press the red button for switching off.
Note: Check the function of the ON/OFF unit before
every use by switching on and off once.
Restarting safety in case of current interruption
(no-volt release).
In case of current failure, inadvertent pulling of the
plug, or a defective fuse, the machine is switched off
automatically. For switching on again, press anew
the green button of the switch unit.
End of work
• Move the splitting knife to the lower position.
• Release one operating arm.
• Switch the machine off and pull the power plug.
• Close the venting cap.
• Observe the general maintenance instructions.
m

Electrical connection

Check electrical connection cables regularly for
damage. Ensure that the connecting cable is not at-
tached to the mains when you are checking it.
Electrical connecting cables must correspond to the
relevant VDE and DIN regulations. Only use con-
necting cables with the code H 07 RN.
The type designation must be printed on the con-
necting cable by regulation.
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
Faulty electrical connecting cables
Insulation damage often occurs at electrical connect-
ing cables.
Causes include:
• Pinch points when connecting cables are run
through window or door gaps.
• Kinks resulting from incorrect attachment or laying
of the connection cable.
• Cuts resulting from running over the connecting
cable.
• Insulation damage resulting from forcefully pulling
out of the wall socket.
• Cracks through aging of insulation.
Such defective electrical connection cables must not
be used as the insulation damage makes them ex-
tremely hazardous.
Three-phase motor 400 V / 50 Hz
Mains voltage 400 V / 50 Hz
Mains voltage and extension cables must be 5-lead
(3P + N + SL (3/N/PE).
Extension cables must have a minimum cross-sec-
tion of 1.5 mm².
Mains fuse protection is 16 A maximum.
When connecting to the mains or relocating the ma-
chine, check the direction of rotation (swap polarity in
the wall socket if necessary).
Turn pole inverter in the machine socket.
• The product meets the requirements of EN 61000-
3-11 and is subject to special connection condi-
tions. This means that use of the product at any
freely selectable connection point is not allowed.
• Given unfavorable conditions in the power supply
the product can cause the voltage to fluctuate tem-
porarily.
• The product is intended solely for use at connec-
tion points that
a) do not exceed a maximum permitted supply im-
pedance "Z", or
b) have a continuous current-carrying capacity of
the mains of at least 100 A per phase.
• As the user, you are required to ensure, in consul-
tation with your electric power company if neces-
sary, that the connection point at which you wish to
operate the product meets one of the two require-
ments, a) or b), named above.

Maintenance and repair

Switch off the motor and pull the power supply plug
before undertaking any converting, maintenance, or
cleaning work.
Always pull power plug!!
Skilled craftsmen can execute smaller repairs on the
machine themselves.
