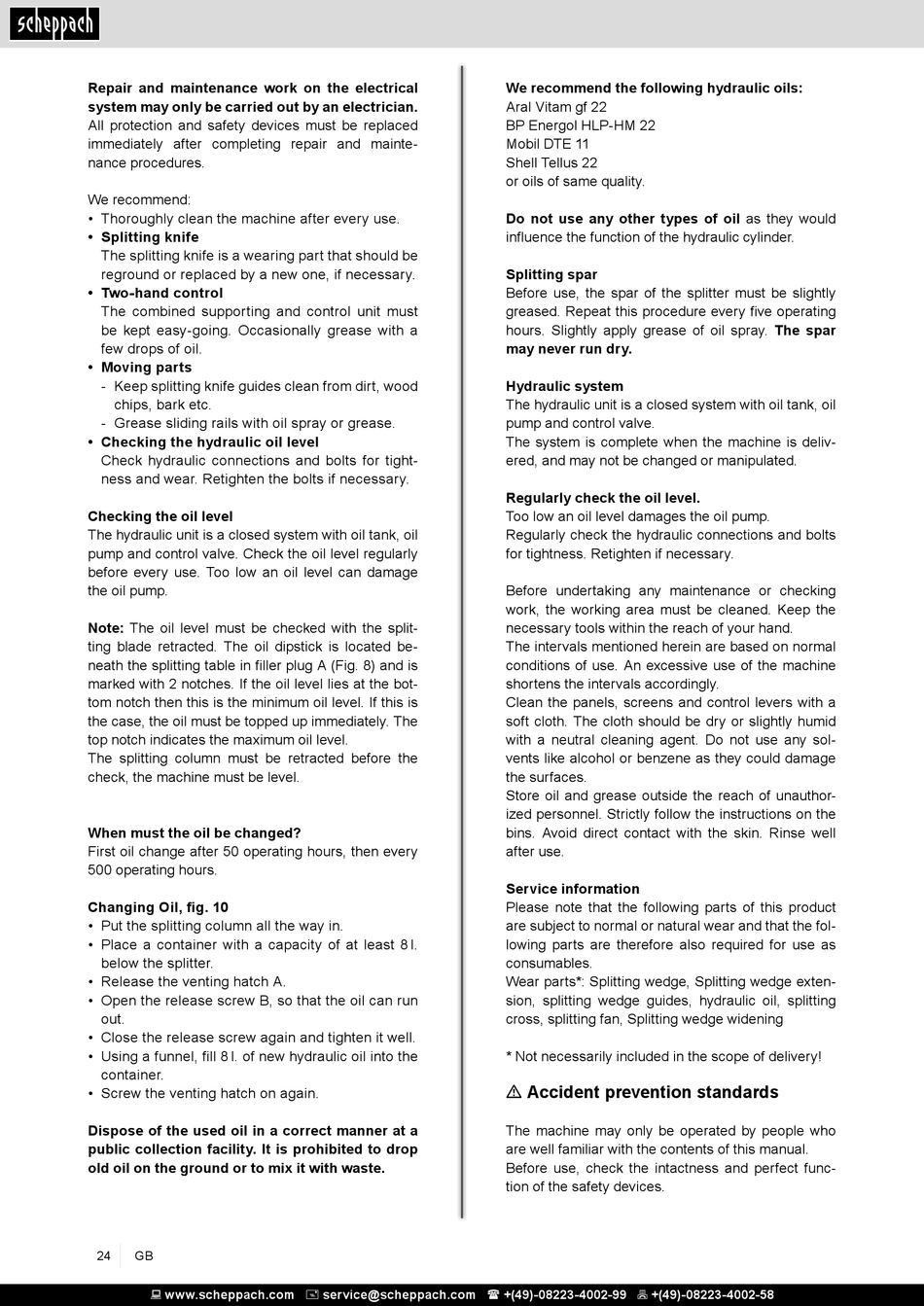

Scheppach HL1200 Original Anleitungen Seite 24

Repair and maintenance work on the electrical
system may only be carried out by an electrician.
All protection and safety devices must be replaced
immediately after completing repair and mainte-
nance procedures.
We recommend:
• Thoroughly clean the machine after every use.
• Splitting knife
The splitting knife is a wearing part that should be
reground or replaced by a new one, if necessary.
• Two-hand control
The combined supporting and control unit must
be kept easy-going. Occasionally grease with a
few drops of oil.
• Moving parts
- Keep splitting knife guides clean from dirt, wood
chips, bark etc.
- Grease sliding rails with oil spray or grease.
• Checking the hydraulic oil level
Check hydraulic connections and bolts for tight-
ness and wear. Retighten the bolts if necessary.
Checking the oil level
The hydraulic unit is a closed system with oil tank, oil
pump and control valve. Check the oil level regularly
before every use. Too low an oil level can damage
the oil pump.
Note: The oil level must be checked with the split-
ting blade retracted. The oil dipstick is located be-
neath the splitting table in filler plug A (Fig. 8) and is
marked with 2 notches. If the oil level lies at the bot-
tom notch then this is the minimum oil level. If this is
the case, the oil must be topped up immediately. The
top notch indicates the maximum oil level.
The splitting column must be retracted before the
check, the machine must be level.
When must the oil be changed?
First oil change after 50 operating hours, then every
500 operating hours.
Changing Oil, fig. 10
• Put the splitting column all the way in.
• Place a container with a capacity of at least 8 l.
below the splitter.
• Release the venting hatch A.
• Open the release screw B, so that the oil can run
out.
• Close the release screw again and tighten it well.
• Using a funnel, fill 8 l. of new hydraulic oil into the
container.
• Screw the venting hatch on again.
Dispose of the used oil in a correct manner at a
public collection facility. It is prohibited to drop
old oil on the ground or to mix it with waste.
24 GB
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
We recommend the following hydraulic oils:
Aral Vitam gf 22
BP Energol HLP-HM 22
Mobil DTE 11
Shell Tellus 22
or oils of same quality.
Do not use any other types of oil as they would
influence the function of the hydraulic cylinder.
Splitting spar
Before use, the spar of the splitter must be slightly
greased. Repeat this procedure every five operating
hours. Slightly apply grease of oil spray. The spar
may never run dry.
Hydraulic system
The hydraulic unit is a closed system with oil tank, oil
pump and control valve.
The system is complete when the machine is deliv-
ered, and may not be changed or manipulated.
Regularly check the oil level.
Too low an oil level damages the oil pump.
Regularly check the hydraulic connections and bolts
for tightness. Retighten if necessary.
Before undertaking any maintenance or checking
work, the working area must be cleaned. Keep the
necessary tools within the reach of your hand.
The intervals mentioned herein are based on normal
conditions of use. An excessive use of the machine
shortens the intervals accordingly.
Clean the panels, screens and control levers with a
soft cloth. The cloth should be dry or slightly humid
with a neutral cleaning agent. Do not use any sol-
vents like alcohol or benzene as they could damage
the surfaces.
Store oil and grease outside the reach of unauthor-
ized personnel. Strictly follow the instructions on the
bins. Avoid direct contact with the skin. Rinse well
after use.
Service information
Please note that the following parts of this product
are subject to normal or natural wear and that the fol-
lowing parts are therefore also required for use as
consumables.
Wear parts*: Splitting wedge, Splitting wedge exten-
sion, splitting wedge guides, hydraulic oil, splitting
cross, splitting fan, Splitting wedge widening
* Not necessarily included in the scope of delivery!
m Accident prevention standards
The machine may only be operated by people who
are well familiar with the contents of this manual.
Before use, check the intactness and perfect func-
tion of the safety devices.
