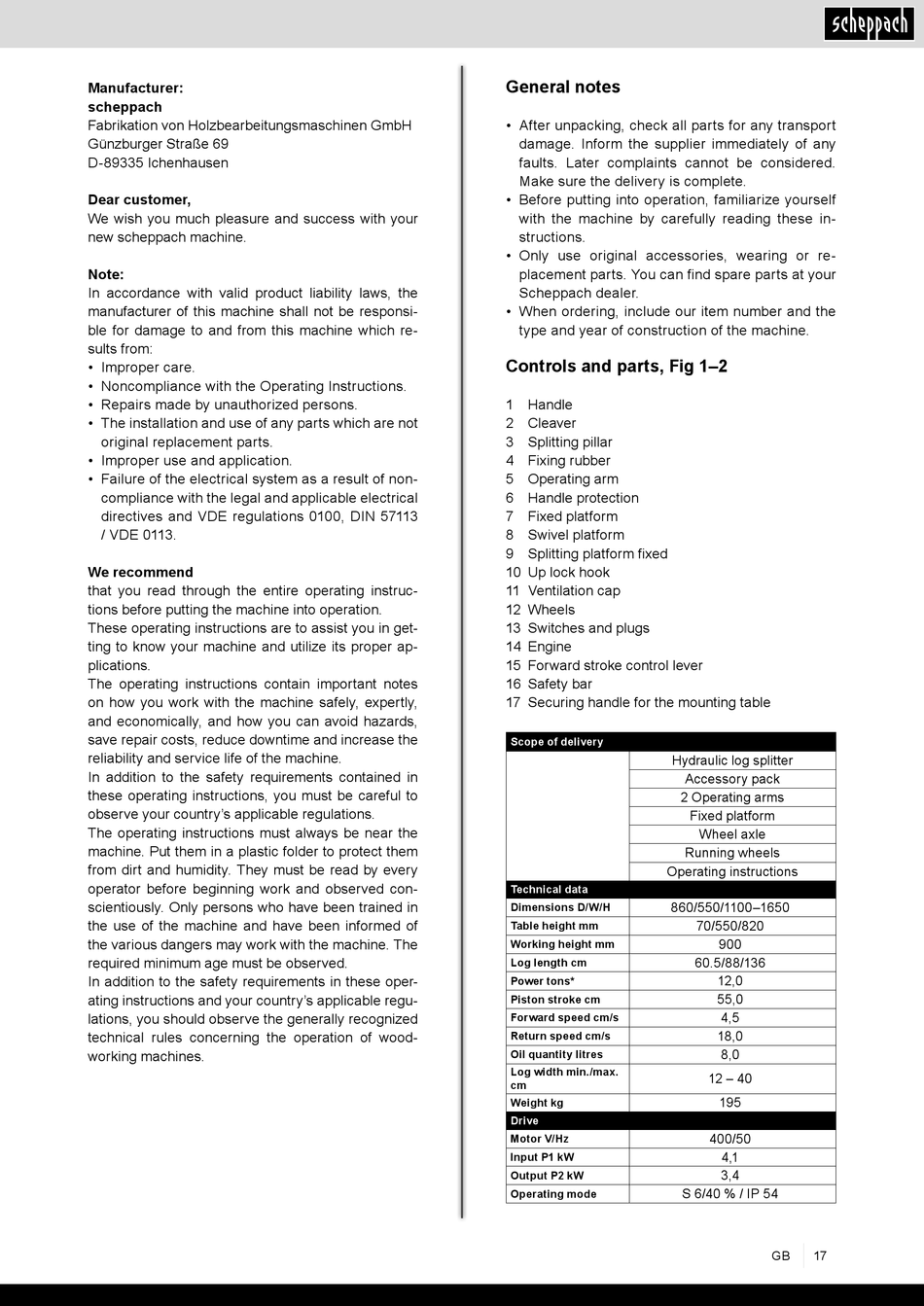

Manufacturer:
scheppach
Fabrikation von Holzbearbeitungsmaschinen GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear customer,
We wish you much pleasure and success with your
new scheppach machine.
Note:
In accordance with valid product liability laws, the
manufacturer of this machine shall not be responsi-
ble for damage to and from this machine which re-
sults from:
• Improper care.
• Noncompliance with the Operating Instructions.
• Repairs made by unauthorized persons.
• The installation and use of any parts which are not
original replacement parts.
• Improper use and application.
• Failure of the electrical system as a result of non-
compliance with the legal and applicable electrical
directives and VDE regulations 0100, DIN 57113
/ VDE 0113.
We recommend
that you read through the entire operating instruc-
tions before putting the machine into operation.
These operating instructions are to assist you in get-
ting to know your machine and utilize its proper ap-
plications.
The operating instructions contain important notes
on how you work with the machine safely, expertly,
and economically, and how you can avoid hazards,
save repair costs, reduce downtime and increase the
reliability and service life of the machine.
In addition to the safety requirements contained in
these operating instructions, you must be careful to
observe your country's applicable regulations.
The operating instructions must always be near the
machine. Put them in a plastic folder to protect them
from dirt and humidity. They must be read by every
operator before beginning work and observed con-
scientiously. Only persons who have been trained in
the use of the machine and have been informed of
the various dangers may work with the machine. The
required minimum age must be observed.
In addition to the safety requirements in these oper-
ating instructions and your country's applicable regu-
lations, you should observe the generally recognized
technical rules concerning the operation of wood-
working machines.
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58

General notes

• After unpacking, check all parts for any transport
damage. Inform the supplier immediately of any
faults. Later complaints cannot be considered.
Make sure the delivery is complete.
• Before putting into operation, familiarize yourself
with the machine by carefully reading these in-
structions.
• Only use original accessories, wearing or re-
placement parts. You can find spare parts at your
Scheppach dealer.
• When ordering, include our item number and the
type and year of construction of the machine.
Controls and parts, Fig 1–2
1 Handle
2 Cleaver
3 Splitting pillar
4 Fixing rubber
5 Operating arm
6 Handle protection
7 Fixed platform
8 Swivel platform
9 Splitting platform fixed
10 Up lock hook
11 Ventilation cap
12 Wheels
13 Switches and plugs
14 Engine
15 Forward stroke control lever
16 Safety bar
17 Securing handle for the mounting table
Scope of delivery
Hydraulic log splitter
2 Operating arms
Operating instructions
Technical data
860/550/1100–1650
Dimensions D/W/H
Table height mm
Working height mm
Log length cm
Power tons*
Piston stroke cm
Forward speed cm/s
Return speed cm/s
Oil quantity litres
Log width min./max.
cm
Weight kg
Drive
Motor V/Hz
Input P1 kW
Output P2 kW
Operating mode
Accessory pack
Fixed platform
Wheel axle
Running wheels
70/550/820
900
60.5/88/136
12,0
55,0
4,5
18,0
8,0
12 – 40
195
400/50
4,1
3,4
S 6/40 % / IP 54
