II - PRODUCT DESCRIPTION
4
12
11
8

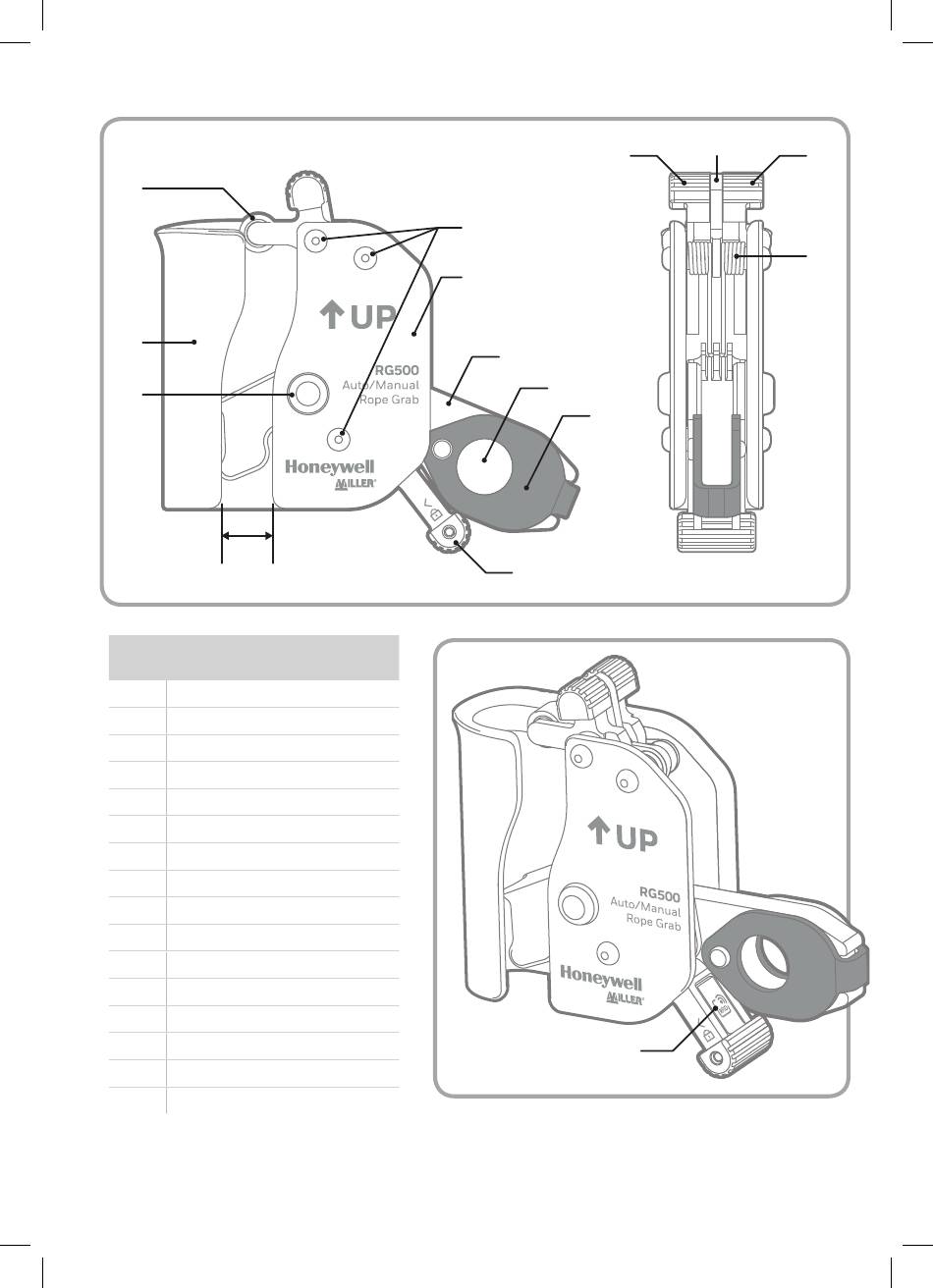

Fig. 1
Tab.2 - RG500 Auto/Manual
Rope Grab - Part A
ITEM Description
1 Attachment hole (for karabiner)
2 Fall indicator
3 Braking lever
4
Roller
5 Opening lever - left
6 Opening lever - right
7 Divider
8 Slot for rope installation
9 Torsion Spring
10 Locking lever with RFID tag
11 Pivot
12
Back plate
13 Front plate
14 Stainless steel rivets
15 RFID Tag*
*For further information about RFID tag see chapter 10
5
14
13
3
1
2
10
15
Fig. 2
7
6
9
