PRODUCT MAINTENANCE

17.5. Condensate drain

Compressors without dryers
During regular operation is condensate automatically
drained through automatic drain (autodrain) which is
catched into a condensate collection vessel. Pull the
vessel out of the holder and pour out the condensate

Monitor the level in the vessel using the 1 l or
2 l markings (depending on the volume of the
vessel), and empty at least once a day
Risk of slipping on a wet floor in case of the collecting vessel overflow.
Prior to the following checks it is necessary to disassemble the cabinet door:
17.6. Check of safety valve
When the compressor is operated for the first time,
make sure that the safety valve is working properly.
 Turn the screw (2) on the safety valve (1) several
rotations to the left until the safety valve releases
air.
 Let the safety valve vent for only a few seconds.
 Turn the screw (2) to the right until it seats, closing
the valve.
Risk of pressure increase when safety valve is damaged.
Safety valve must not be used to depressurize the air tank. It could damage the
safety valve function. The valve is set to the maximum allowed pressure, it is
tested and marked.
Safety valve setting must not be adjusted.
10/2019

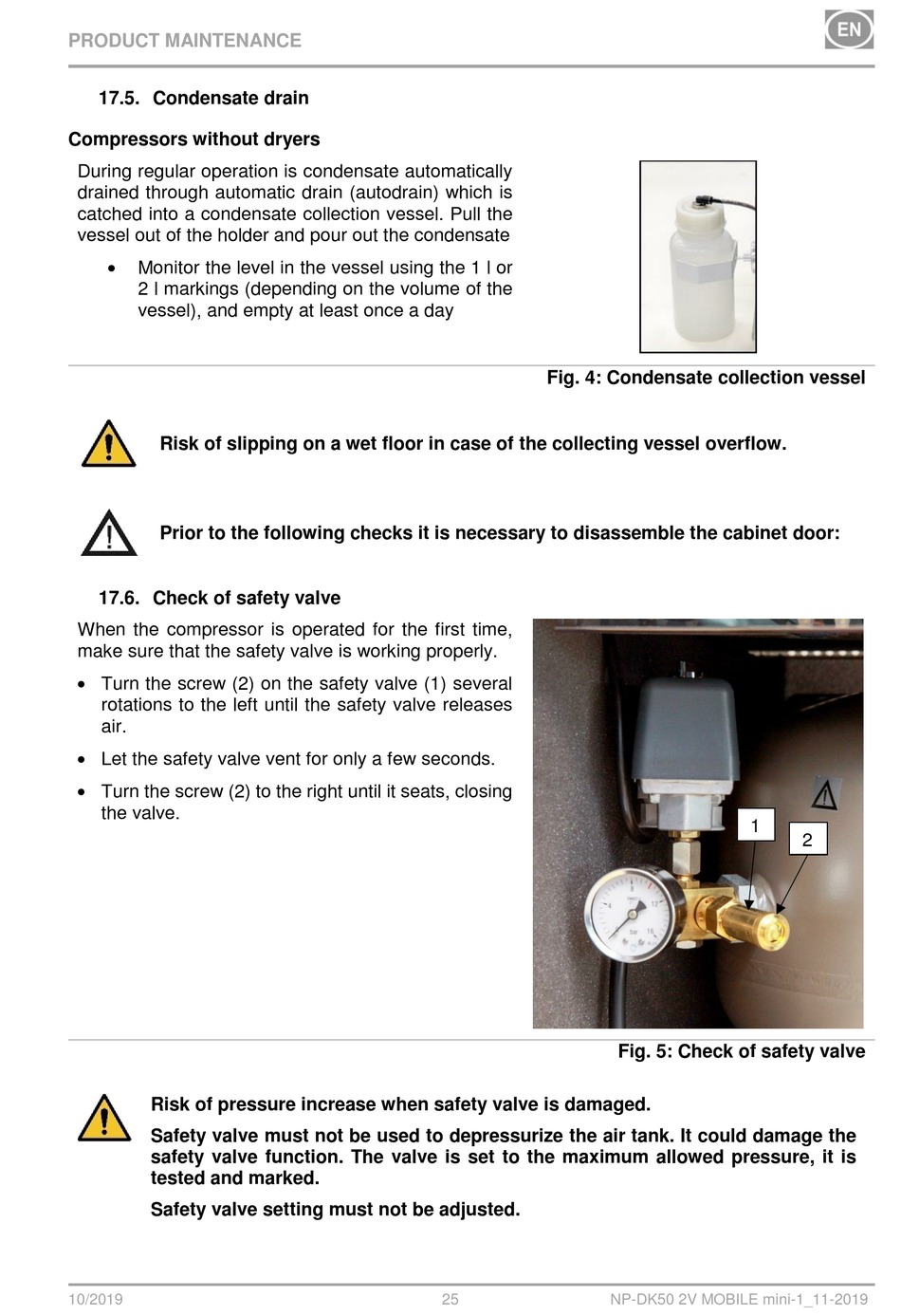

Fig. 4: Condensate collection vessel
